operating principle

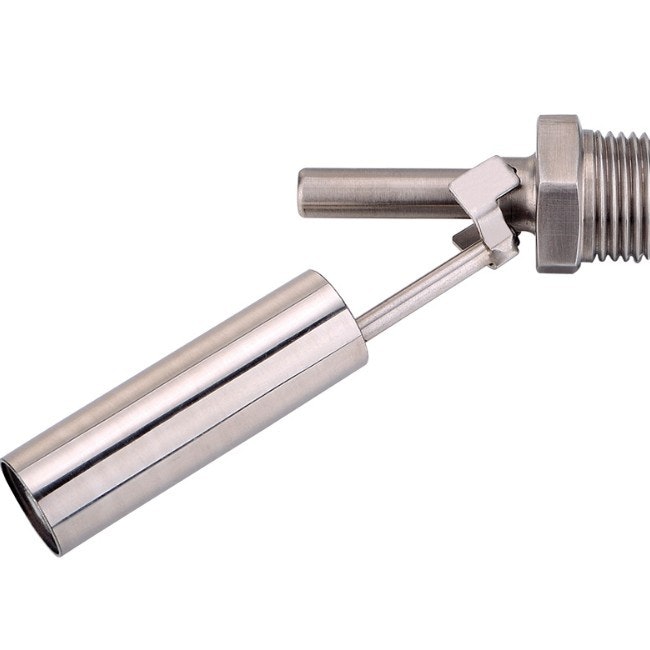

Liquid level sensors mainly consists of magnetic Reed switch and floater . There is a magnetic material in the floater that will trigger the magnetic Reed switch as the level of the liquid tested moves up and down , and thus detecting the position of the liquid level.
characteristic
Liquid level sensors used imported components and is provided with characteristics such as compact size ,simple working principle, highly reliable and inexpensive.Floating balls with different materials and specifications are available for selection .Electrical parameters can be changed in accordance with client's requirement,and special specification can also be customized.
Application field
This product can be used in liquid level control for watering machine , water heater , solar energy ,air conditioning , moisturizing machine , bathroom utensil , vending machine ,oil tank , water tower and chemical industrial ,etc. It will bewidely applied in motor vehices ,industrial equipment , agricultural equipment and household electrical appliances in the Future.
| Specifications | MR-L11 |
| Case | SUS304 |
| Nut | SUS304 |
| Floater | SUS304 / SUS316 |
| E Ring | SUS304 |
| Cable | UL 1015 22AWG / 24AWG |
| Filler | Ethoxyline (ROHS) |
| Used medium | Water,Oil,Chemical liquid |
| Contact Type | Normally Open | Normally Closed | Normally Open High Voltage | Normally
Open
High Voltage |
| Max Contact Rating | 10W | 50W | ||
| Max Switching Voltage | 100V (DC/AC) | 300VAC / 350VDC | ||
| Max Switching Current | 0.5A | DC0.7A / AC0.5A | ||
| Max Breakdown Voltage | 150VDC | 500VDC | ||
Application
Water fountain,air cindition,humidifier,bathroom equipment,sale machine,oil tank and chemical liquid level control.It will be widely applied in motor vehicles,industrial equipment,agricultural equipment and household appliances in the future.
