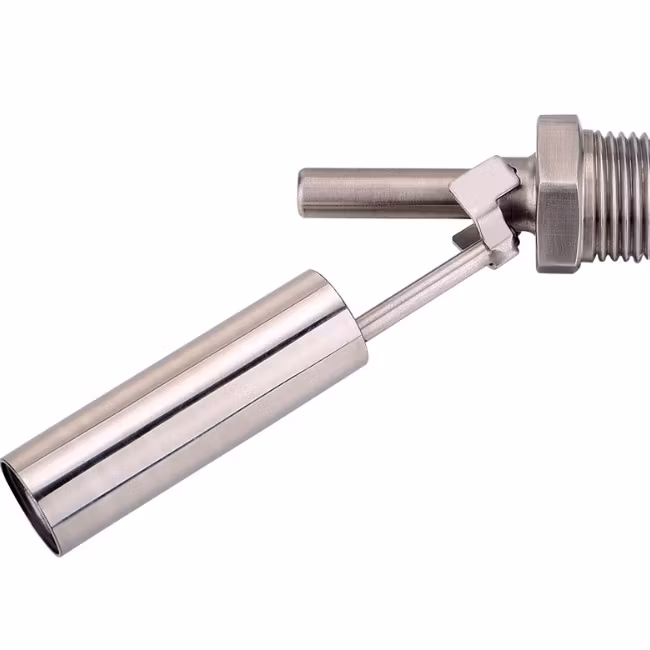

Side Mount Hot Water Tank Level Sensor

I lager.
Antal: 5

199 kr

Artikelnummer: 936

operating principle

         Liquid level sensors mainly consists of magnetic Reed switch and floater . There is a  magnetic material in the floater that will trigger the magnetic Reed switch as the level of the liquid tested moves up and down , and thus detecting the position of the liquid level.

characteristic

      Liquid level sensors used imported components and is provided with characteristics such as compact size ,simple working principle, highly reliable and inexpensive.Floating balls with different materials and specifications are available for selection .Electrical parameters can be changed in accordance with client's requirement,and special specification can also be customized.

Application field

       This product can be used in liquid level control for watering machine , water heater , solar energy ,air conditioning , moisturizing machine , bathroom utensil , vending machine ,oil tank , water tower and chemical industrial ,etc. It will bewidely applied in motor vehices ,industrial equipment , agricultural equipment and household electrical appliances in the Future.

Specifications
MR-L11
Case
SUS304
Nut
SUS304
Floater
SUS304 / SUS316
E Ring
SUS304
Cable
UL 1015  22AWG / 24AWG
Filler
Ethoxyline (ROHS)
Used medium
Water,Oil,Chemical liquid



Contact Type
Normally Open
Normally Closed
Normally Open High Voltage
Normally Open High Voltage
Max Contact Rating
10W
50W
Max Switching Voltage
100V (DC/AC)
300VAC / 350VDC
Max Switching Current
0.5A
DC0.7A / AC0.5A
Max Breakdown Voltage
150VDC
                 500VDC



Application

Side Mount Hot Water Tank Level Sensor

Water fountain,air cindition,humidifier,bathroom equipment,sale machine,oil tank and chemical liquid level control.It will be widely applied in motor vehicles,industrial equipment,agricultural equipment and household appliances in the future.
