Two-Phase Stepper Motor

  • 17.29 EUR

SpecificationsCategory: two-phase stepper motorStep angle: 1.8°Body length: 40mmRated current: 1.7A/PhasePhase resistance: 2.4ΩPhase inductance: 3.7mHHolding to

I lager.
Article Number: 182
Share
  • Information

Specifications

  • Category: two-phase stepper motor
  • Step angle: 1.8°
  • Body length: 40mm
  • Rated current: 1.7A/Phase
  • Phase resistance: 2.4Ω
  • Phase inductance: 3.7mH
  • Holding torque: 0.45N.m
  • Rotor inertia: 54(g.c㎡)
  • Weight: 0.3kg
  • Compatible driver:  Stepper Motor HAT for Raspberry Pi, Drives Two Stepper Motors  and Two-Phase Hybrid Stepper Motor Driver

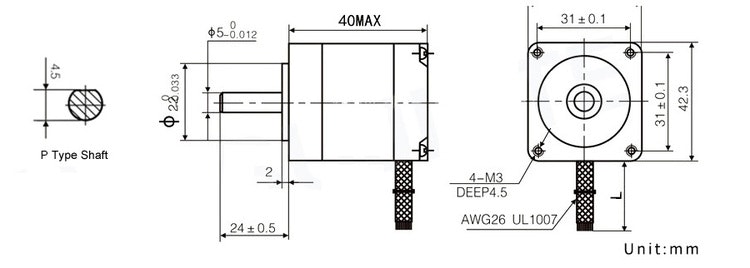

Dimension

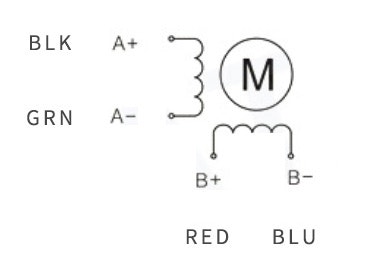

Wiring  Configuration

Shipping list


Weight: 0.296 kg

  1. SM24240 x1
