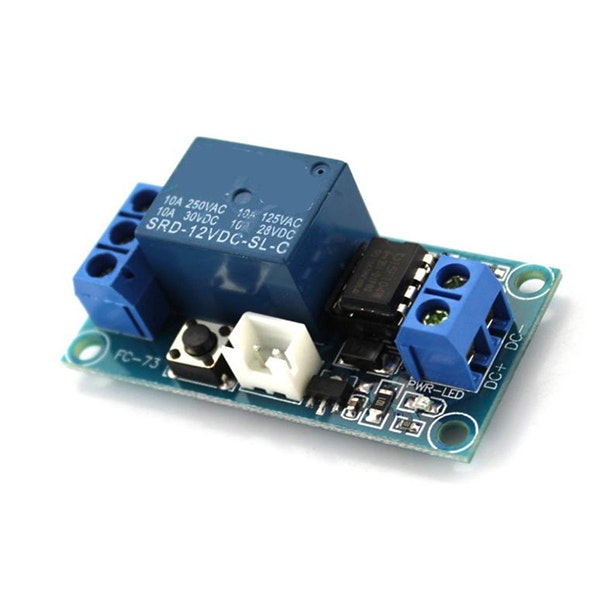

Relay Module With Trigger Line 12V 24V 1 Channel Relay Module 5V

Relay Module With Trigger Line 12V 24V 1 Channel Relay Module 5V,12

Description:

1. The power required by the byline diagram is not reversed, although the protection circuit, but not for a long time
reversed ;
2. Product regulator slight fever is a normal phenomenon, long working hours have a normal relay heat phenomena are normal ;
3. Relay load power to give leave some margin should avoid high-power ( about 2000W) and long working environment, there will be
some impact on the life of the product.
Feature:
1.Double panel design PCB;
2. Chips made using stable and reliable control, stable and reliable performance, strong anti-interference, no false triggering, performance is superior to the CD4013 ;
3. The regulator has the power to provide adequate and stable voltage, and have enough vents to ensure a stable and reliable product for
a long time to work ;
4. With anti-reverse protection diode power, reverse power for a short time without any damage to the product ;
5. Has a touch switch as product testing, stability testing of products directly ;
6. Can also trigger an external trigger switch, the products have a connection with a good seat and lead, more convenient to use
;
7. Triggering sensor module can also be used to do other triggers, are valid as long as the trigger is low, there are more
functional expansion;
NOTE: DC voltage input voltage to match the voltage relay, the relay must not exceed the voltage range, otherwise it will burn
the module.
Parameters :
Voltage:5V / 12V / 24V at Optional
supply current : more than 100mA
Load : 250V 10A (AC) or 30V 10A (DC)
Life: 1 million times
Pack Size:50.5mm*21mm*14mm
Weight:22g

Application:

1. Press the trigger button, the relay is locked, press again, the relay off, you can also add the trigger switch and the use
of the low-level trigger.
2.Control appliances, home of various lighting control, factory equipment control, current control for a variety of small
high-voltage power control products.

1Pc x1 Channel Self-locking Relay Module
1pc× Trigger Line
