Water Flow Sensor Vattenflödesgivare

Vattenflödesgivare består av en plastventilkropp, en vattenrotor och en hall-effektsensor. När vattnet rinner genom rotorn rullar rotorn. Dess hastighet förändras med olika flödeshastighet. Hall-effektsensorn matar ut motsvarande pulsignal. Den här är lämplig för att detektera flöde i vattentank eller kaffemaskin.

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.

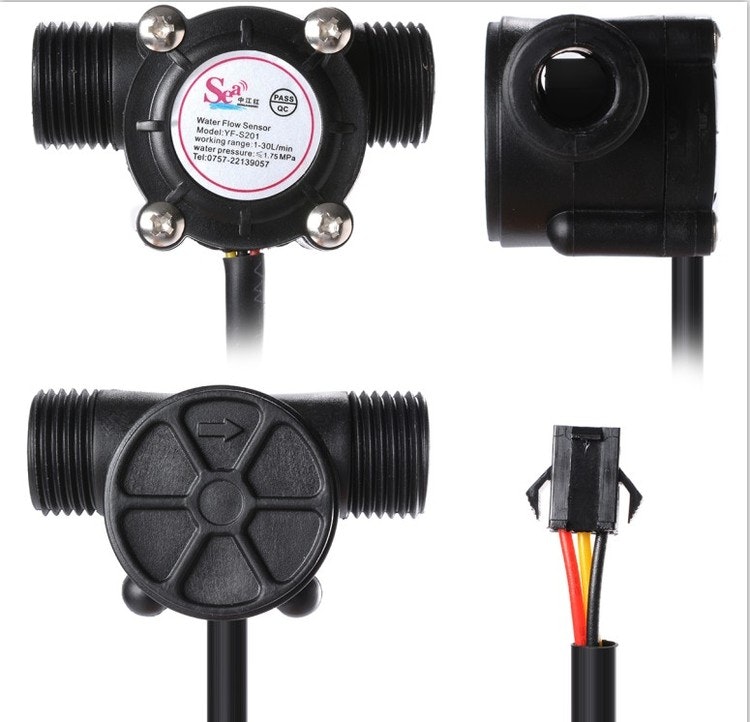

Features G1/2" Water Flow Sensor:

• Inlet & Outlet Diameter G1/2''
• Flow Range 0.5-25L/min
• Working Voltage 3-24V
• Pulse Characteristic：F=7.8*Q
• Pressure Range 1.2MPA

Usage:

mainly used in a water heater, water dispenser, vending machine, campus card reader and other fields

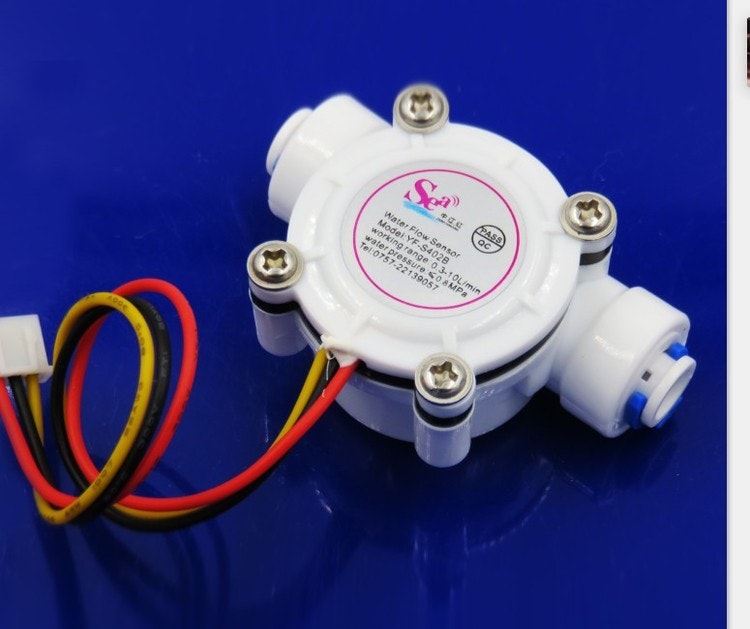

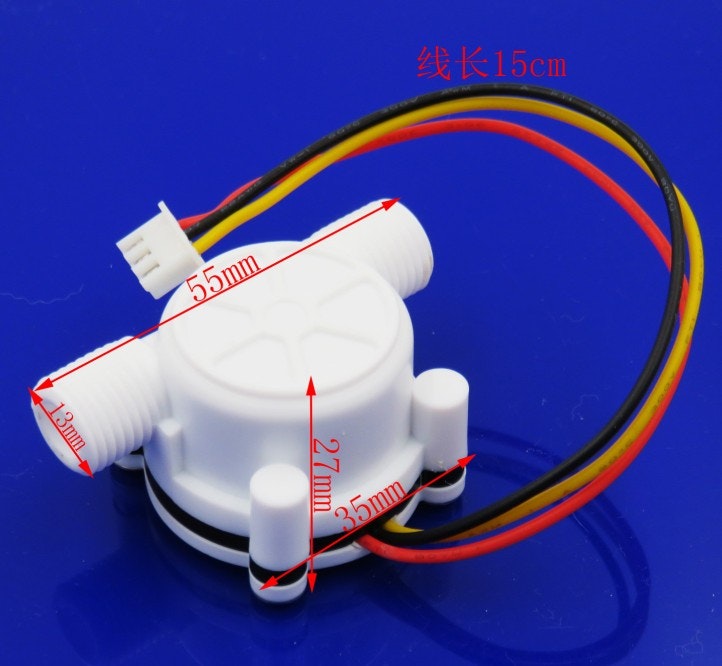

Features G1/4" Water Flow Sensor:

• Operating Temperature:<80
• Inlet & Outlet Diameter: G1/4
• Male thread flow Range: 0.3-6L/min
• Working Voltage: 3-24V
• Pulse Characteristic F=23*Q-3
• Pressure Range 0.8MPA

Usage:

Water dispenser, coffee machine, water purifier

Features G3/4" Water Flow Sensor

• Inlet & Outlet Diameter G3/4''
• Flow Range 1-60L/min
• Working Voltage 3-24V
• Pulse Characteristic F=5.5*Q
• Pressure Range 1.2MPA

Usage:

mainly used in water heater, water dispenser, vending machine, campus card reader and other fields
