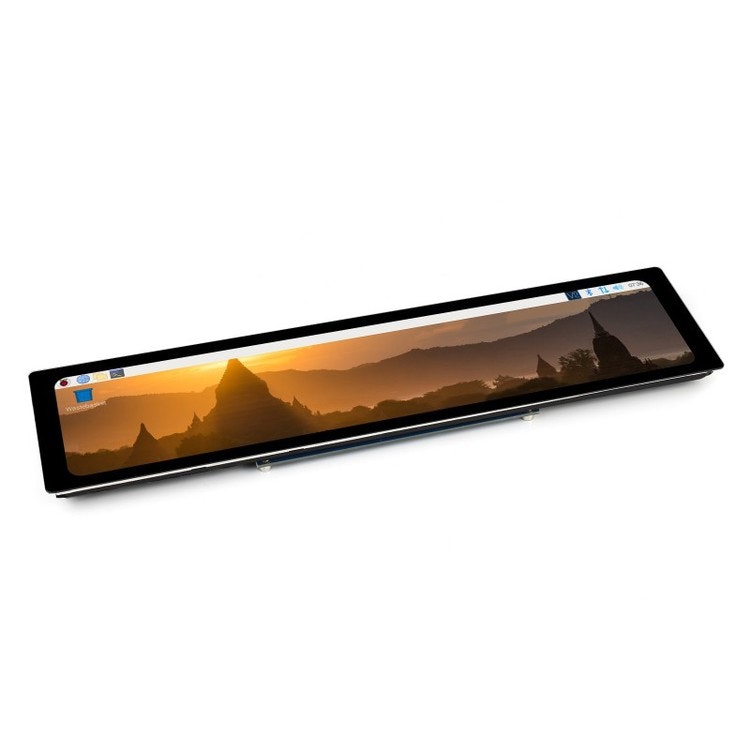

11.9inch Capacitive Touch Screen LCD, 320×1480, HDMI, IPS, Toughened Glass Cover

11.9inch Capacitive Touch Screen LCD, 320×1480, HDMI, IPS, Toughened Glass Cover

11.9" HDMI Touch Display

Size  11.9"

Resolution  320×1480

Display Port  HDMI

Display Panel  IPS

Viewing Angle  170°

Touch Type  Capacitive

Touch Points 5-Points

Touch Port  USB

Touch Panel  Toughened Glass

Audio Output  3.5mm Jack

The display orientation is portrait by default, 320×1480 resolution (H×V). Change the software config for landscape display.

Device & System Support

Raspberry Pi

Supports Raspbian, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 10 / 8.1 / 8 / 7, 5-points touch, driver free

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Working With AI Computer Jetson Nano

Working With Mini PC

Display

IPS Panel

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

Appearance And Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/11.9inch_HDMI_LCD

Shipping list

Weight: 0.351 kg

1. 11.9inch HDMI LCD x1
2. HDMI cable x1
3. USB-A to Micro-B cable x1
4. HDMI Adapter (B) x1
5. USB Adapter (B) x1
6. HDMI Adapter (C) x1
7. USB Adapter (C) x1
8. Screws pack x1
