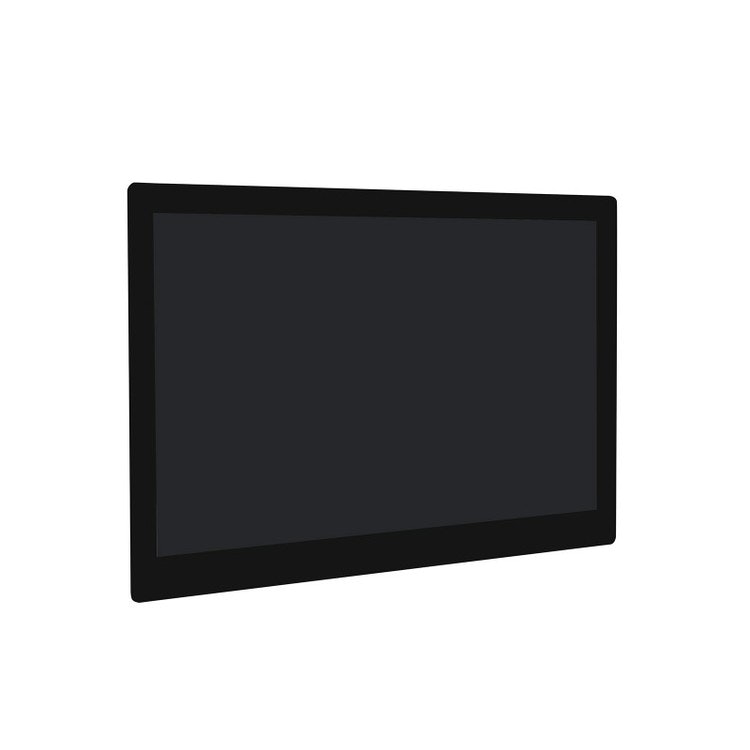

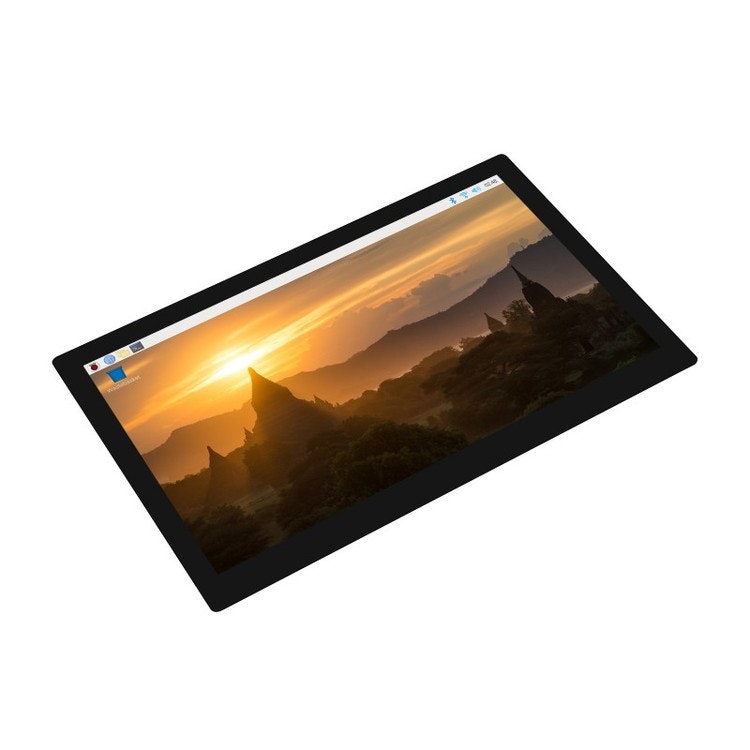

9inch QLED Quantum Dot Display, Capacitive Touch, 1280×720

9inch QLED Quantum Dot Display, Capacitive Touch, 1280×720, G+G Toughened Glass Panel, Various Systems Support.

9" QLED Quantum Dot Display

• Size 9"

• Resolution 1280×720

• Display Port HDMI

• Display Panel IPS

• Viewing Angle 170°

• Backlight QLED Quantum Dot

• Brightness 600cd/㎡

• Touch Type Capacitive

• Touch Points 10-Points

• Touch Port USB

• Touch Panel G+G Toughened Glass

• OSD Menu Brightness/Contrast

• Audio Output1 3.5mm Jack

• Audio Output2 4PIN Header

• Gaming Xbox360/PS4/Switch

Device & System Support

Raspberry Pi

Supports Raspbian, 10-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 10 / 8.1 / 8 / 7, 10-points touch, driver free

Game Console

Xbox360, PS4, Switch...

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Working With AI Computer Jetson Nano

Working With Mini PC

Display

QLED Panel

QLED Quantum Dot Technology

Wider Color Gamut

Color Gamut Of This QLED Display Is Up To: NTSC 96%, SRGB 100%

More Pure Chroma

Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid

Longer Lifetime

Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

Touch Control

1) up to 10-points touch, depending on the operating system. 2) up to 6H hardness G-G toughened glass panel.

Enjoy Gaming

* audio output via earphone/speaker port.

Appearance And Dimensions

Resources & Services

Wiki: 9HP-CAPQLED

Shipping list

Weight: 0.597 kg

1. 9HP-CAPQLED x1
2. OPTIONS 5V 3A power adapter x1
3. HDMI cable x1
4. HDMI to Micro HDMI Adapter x1
5. USB-A to Micro-B cable x1
6. Triangular stand x1
7. Button board cable x1
8. Button board x1
