IR Controller Shield V1.0.0 for LOLIN D1 mini Infrared sensors 4x 940nm emitter 1x 38kHz receiver.

Features:

• 4x IR LEDs emitter (940nm)
• 1x IR receiver (38kHz)
• Configurable IO (Default: Sender - D3/GPIO0, Receiver - D4/GPIO2)
• https://wiki.wemos.cc/products:d1_mini_shields:ir_controller_shield

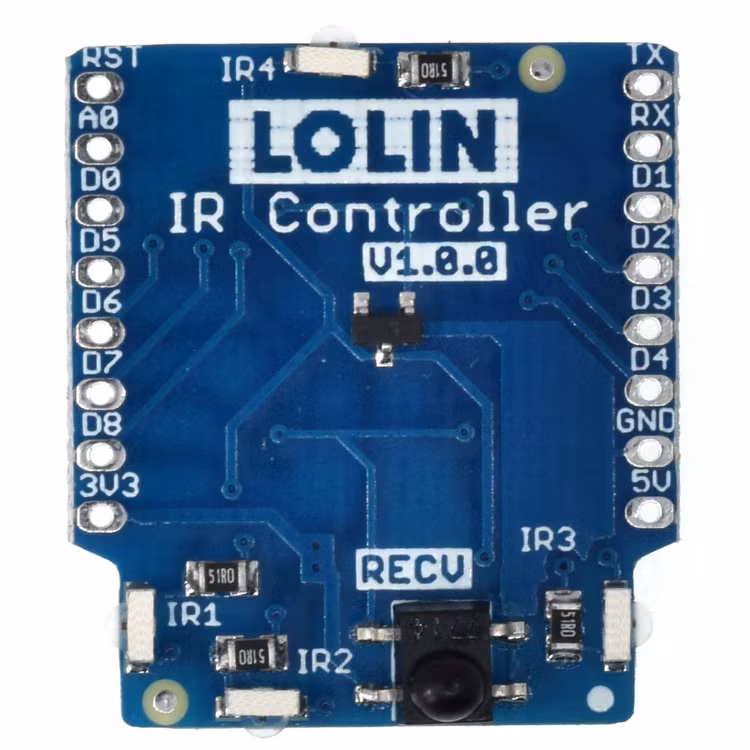

TOP

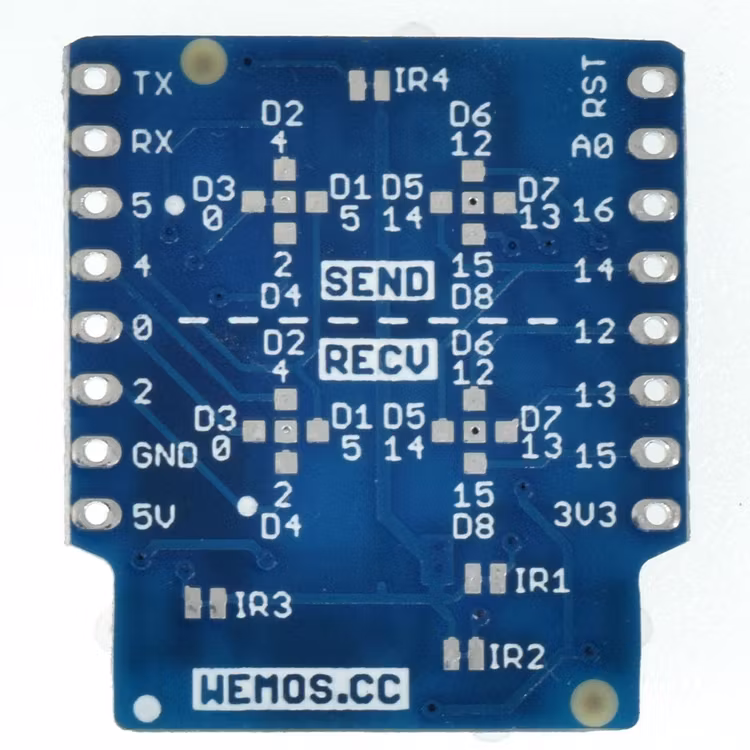

Bottom

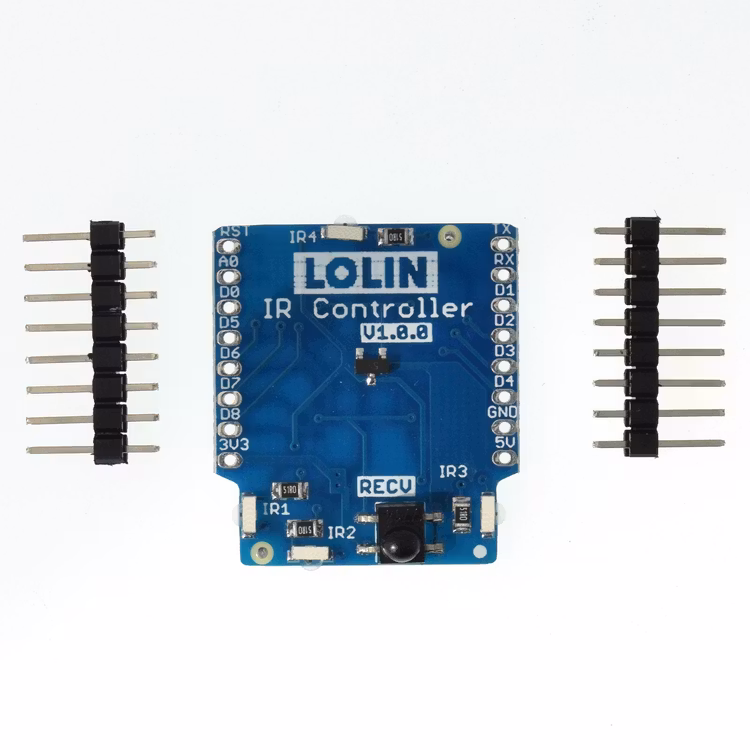

Shipping list:

1. Normal pins x2pcs

2. IR Controller Shield  x1pcs
