Gravity: CO Sensor (Calibrated) - I2C & UART

This is a sensor that detects carbon monoxide and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of carbon monoxide in the environment. Can be widely applied to fields like portable devices, air quality monitoring devices, industries, mines, warehouses, and other spaces where the air is not easy to circulate.

The probe adopts the electrochemical principle, has the characteristics of strong anti-interference ability, high stability, high sensitivity, etc., and the service life is as long as two years. The sensor has 32 modifiable I2C addresses, an integrated temperature compensation algorithm, and a threshold alarm function, It has good compatibility with mainstream main control devices such as Arduino, ESP32, and Raspberry Pi. The easy-to-use Gravity interface, coupled with our sample code, can quickly build a carbon monoxide detector.

FEATURES

• Strong anti-interference ability
• High stability
• High sensitivity

APPLICATIONS

• Petrochemical carbon monoxide detection
• Metallurgy carbon monoxide detection
• Mining carbon monoxide detection
• Environmental protection

SPECIFICATION

• Detection Gas: Carbon Monoxide (CO)
• Detection range: 0-1000ppm
• Working Voltage: 3.3～5.5V DC
• Working Current: ＜5mA
• Output Signal: I2C, UART (0~3V), analog voltage
• Working Temperature: -20～50℃
• Working Humidity: 15～90%RH (non-condensing)
• Storage Temperature: -20～50℃
• Storage Humidity: 15～90%RH (non-condensing)
• Lifespan: >2 years (in the air)

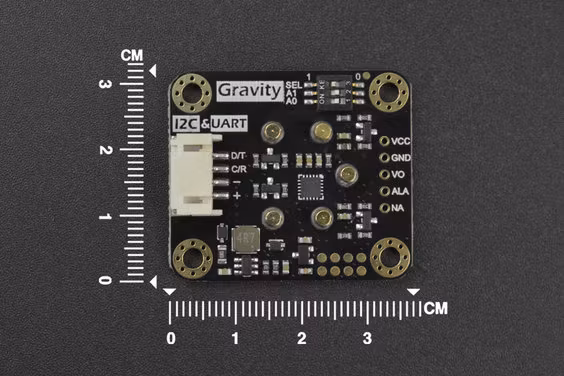

• Adapter Plate Size: 37*32mm
• Compatibility: Arduino, ESP32, Raspberry pi

DOCUMENTS

• Product wiki

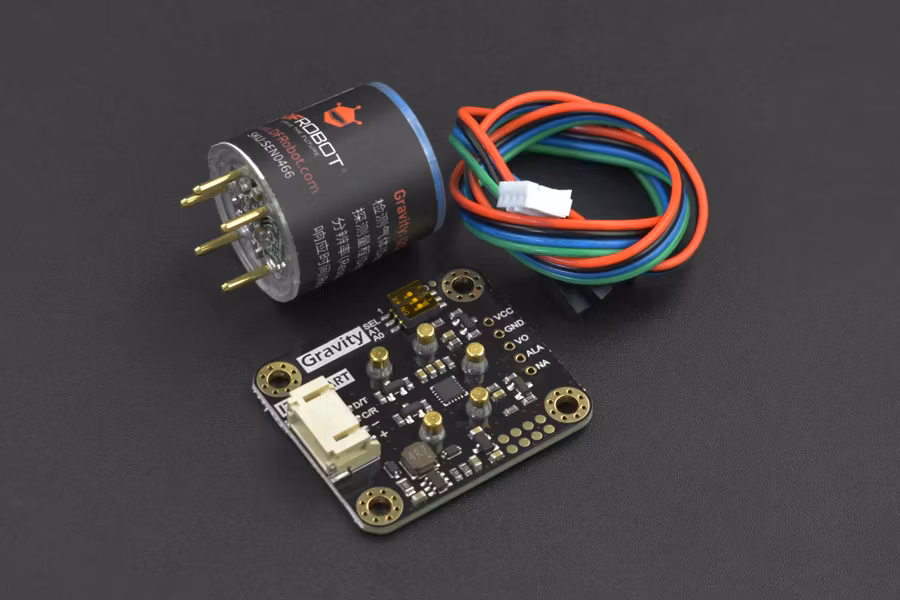

SHIPPING LIST

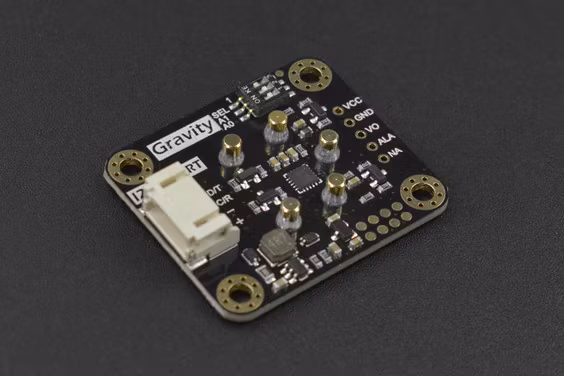

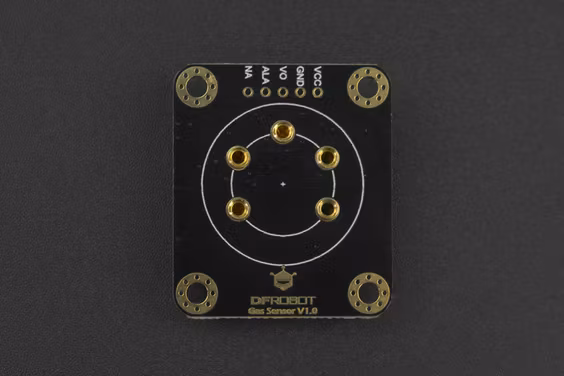

• Gravity: CO Signal Conversion Board x1

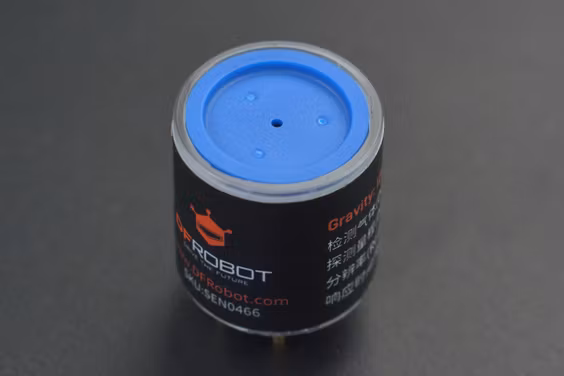

• CO sensor probe x1
• Gravity - 4pin Cable x1
