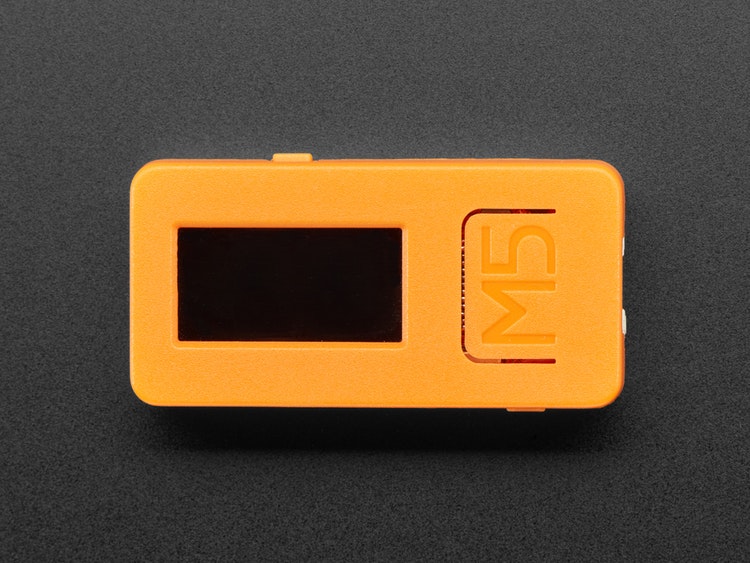

M5Stick-C Pico Mini IoT Development Board

  • 26.06 EUR

M5StickC is a mini M5Stack, powered by ESP32, which is a single 2.4 GHz Wi-Fi and Bluetooth combo chip and integrates a 4-MB SPI flash. It is a portable, easy-t

Produkten är tyvärr slut i lager. :(

Article Number: 812
Share
  • Information

M5StickC is a mini M5Stack, powered by ESP32, which is a single 2.4 GHz Wi-Fi and Bluetooth combo chip and integrates a 4-MB SPI flash. It is a portable, easy-to-use, open-source, IoT development board. What it can do? This tiny block is able to realize your idea, enlighten your creativity, and help with your IoT prototyping in a very short time. It will take away a lot of pains from the development process.M5stickC is one of the core devices in M5Stack product series.

It is built in a continually growing hardware and software ecosystem. It has a lot of compatible modules and units, as well as the open-source code & engineering communities that will help you maximize your benefits in every step of the developing process.

Despite its small size, it's a very capable, all-in-one development board that can be used to build advanced projects with wireless sensing capabilities. We also have a kit with a watch add on and additional plug-in sensors.

M5Stick-C is one of the core devices in the M5Stack product series. It's compatible with many of the modules and add-ons in that ecosystem, which opens up much potential in the developing IoT landscape (or perhaps we should say...cloudscape?)

Documentation and tutorials available on M5Stack's website



Revision History:

  • As of September 20, 2019, this dev board comes with an MPU6886 6-Axis IMU instead of the SH200Q

Product Features:

  • ESP32-based with USB Type-C connection and serial converter
  • 4 MByte Flash + 520K RAM
  • I2C sensor MPU6886 built-in
  • Red LED built-in
  • IR transmitter built-in
  • Microphone built-in
  • 2 user buttons, Color TFT (0.96 inch), 1 Reset button
  • 2.4G Antenna: Proant 440
  • 80 mAh Lipo Battery
  • Extendable Socket
  • Grove Port
  • Wearable & Wall-mounted
  • Development Platform UIFlow, MicroPython, Arduino
  • Dimensions: 48.2mm x 25.5mm x 13.7mm
  • Weight: 15.1g
  • Quickstart tutorial
  • Datasheet
  • Battery Test Report

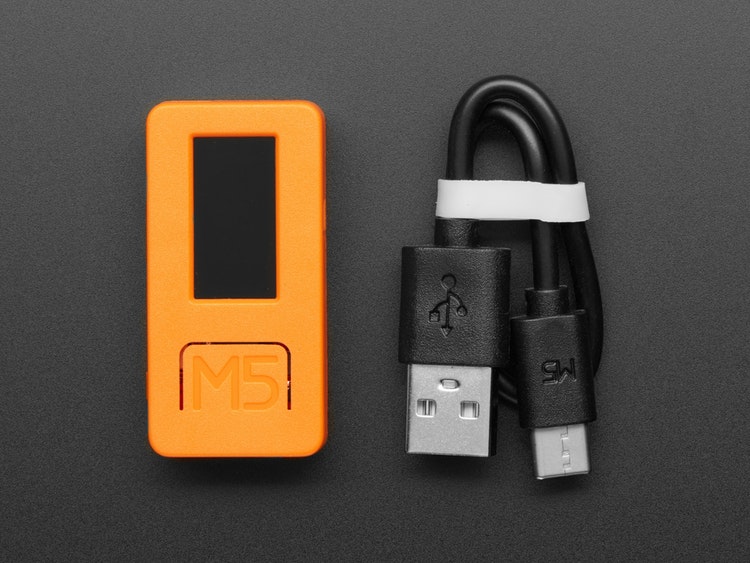

Include

1x M5StickC
1x USB Type-C(20cm)

Applications

# Internet of things terminal controller
# Wearable devices
# Stem education product
# DIY creation

Specification
