Raspberry Pi Pico Basic Kit

Key Features

• Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of on-board Flash memory
• Castellated module allows soldering direct to carrier boards
• USB 1.1 Host and Device support
• Low-power sleep and dormant modes
• Comprehensive C/C++/Micropython SDK, software examples, and documentation
• Drag & drop programming using mass storage over USB
• 26 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support

Description

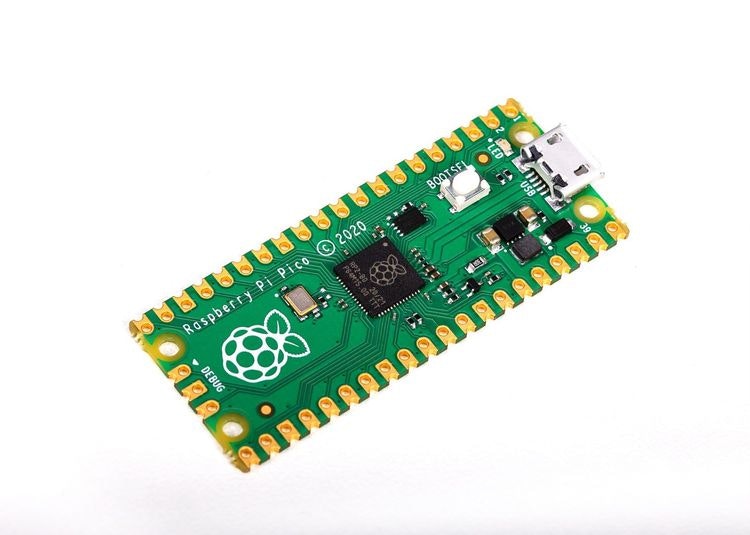

The Raspberry Pi Pico is a microcontroller board based on the Raspberry Pi RP2040 microcontroller chip. It has been designed to be a low-cost, high-performance microcontroller board with flexible digital interfaces. The Raspberry Pi Pico features two ARM Cortex-M0+ cores run up to 133MHz; 256KB RAM; 30 GPIO pins; and a broad range of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for code and data storage.

In addition to powerful hardware resources, Pico has rich and complete software support and community resources. It comes with a complete Rasberry Pi official C/C++ SDK, Micropython SDK.  Just click https://pico.raspberrypi.org/getting-started/ to get started with Raspberry Pi Pico.

Pico has been designed to use either soldered 0.1" pin-headers (it is one 0.1" pitch wider than a standard 40-pin DIP package) or can be used as a surface-mountable 'module', as the user IO pins are also castellated. There are SMT pads underneath the USB connector and BOOTSEL button, which allow these signals to be accessed if used as a reflow soldered SMT module.

Pinout

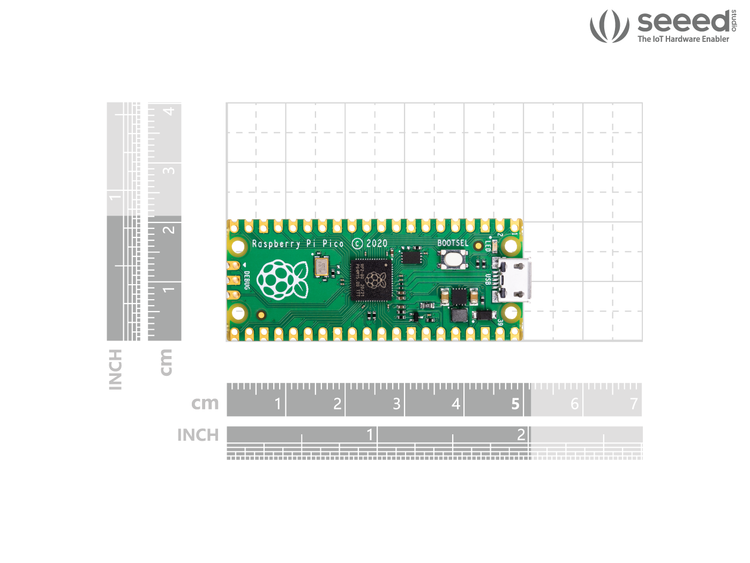

Dimensions

Pico kit  1

- Raspberry Pi Pico x1

• USB Cable
•        1x ~50cm micro-USB cable
• Male Headers
  • 2x 10-pin male headers
  • 3x 3-pin male headers
• Female Headers
  • 2x 10-pin female headers
  • 1x 3-pin female header
• Stacking Headers
  • 2x 10-pin stacking headers
  • 1x 3-pin stacking header
• Shim
  • 1x micro-USB shim
• Rubber feet
  • 4x rubber feet (one pack of 4 feet)

Pico kit 2

- Raspberry Pi Pico x1

-Male Header Set for Raspberry Pi Pico

ECCN/HTS

LEARN AND DOCUMENTS

Documentations

• Raspberry Pi Pico Datasheet
• RP2040 Datasheet
• Hardware design with RP2040
• Getting started with Raspberry Pi Pico
• Pico C/C++ SDK
• Pico Python SDK
