WiDo Arduino compatible WIFI IoT

  • 43.01 EUR

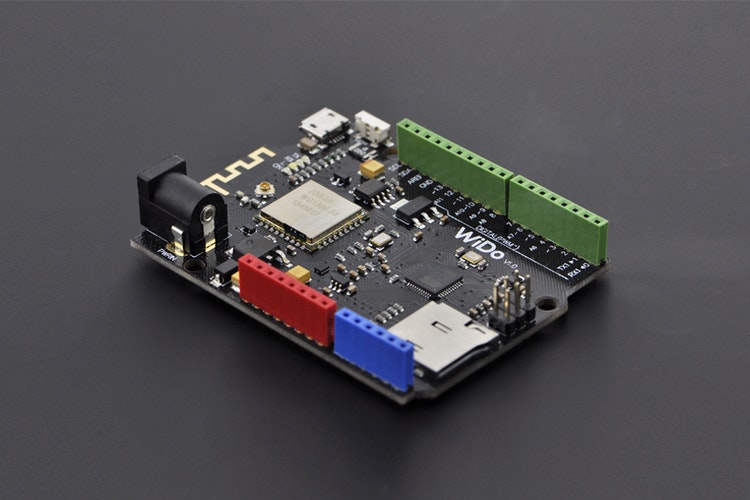

Wido is an Arduino compatible WIFI IoT Node development board, which integrates with WG1300 WIFI solution. The microcontroller of Wido is ATMEL ATmega32U4.Wido

I lager.
Article Number: SKU290
Share
  • Information

Wido is an Arduino compatible WIFI IoT Node development board, which integrates with WG1300 WIFI solution. The microcontroller of Wido is ATMEL ATmega32U4.

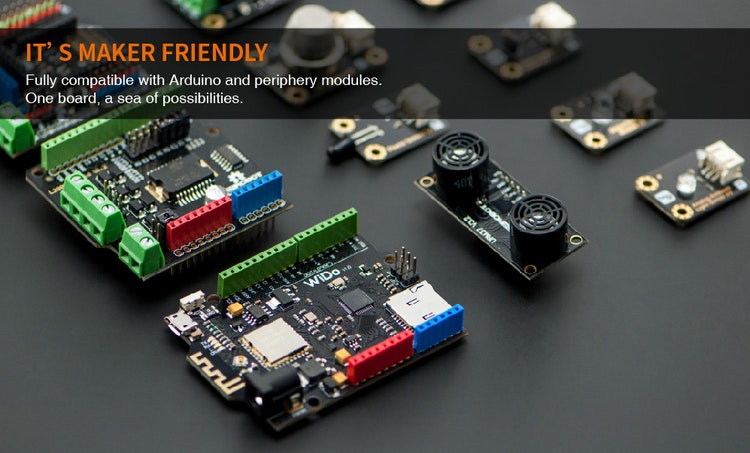

Wido are compatible with copious amounts of Arduino and periphery modules. You can implement it on M2M Sensor Node development, Toys, Gaming, Smart Home Device and many other applications.

SPECIFICATION

  • Power Supply range: 5v or 7-12v
  • Arduino Leonardo Compatible

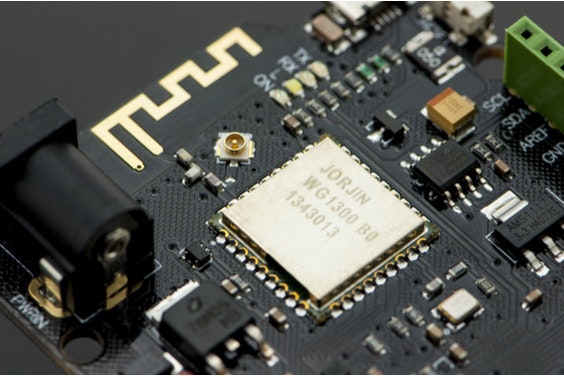

  • Integrate with WG1300 WIFI chip and support 2.4GHz IEEE 802.11 b/g network
  • WIFi and MicroSD driven by SPI port
  • On board 2.4G PCB Antenna
  • Driver pins
  • WIFI Module-D7(IRQ),D5(VBAT),D10(CS),D14(MISO),D15(SCK),D16(MOSI)

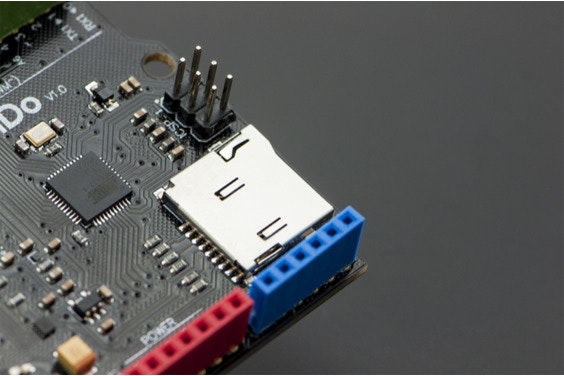

  • MicroSD-D4(CS),D14(MISO),D15(SCK),D16(MOSI)
  • User friendly Reset button

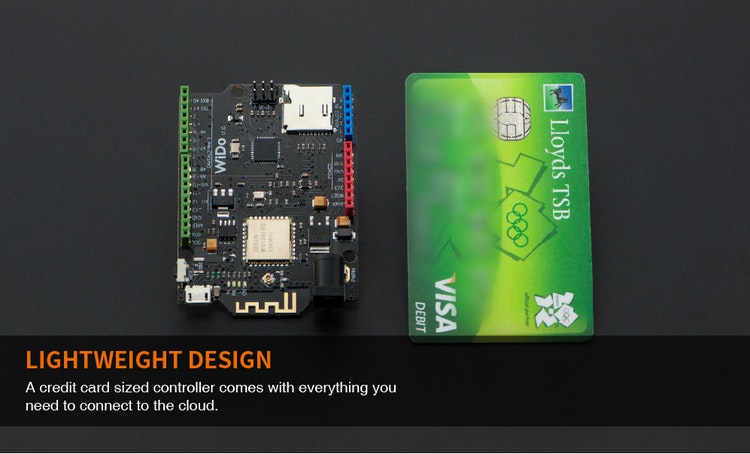

  • Dimension: 72 mm x 55 mm(2.83" x 2.17")

DOCUMENTS

SHIPPING LIST

  • WiDo x1
