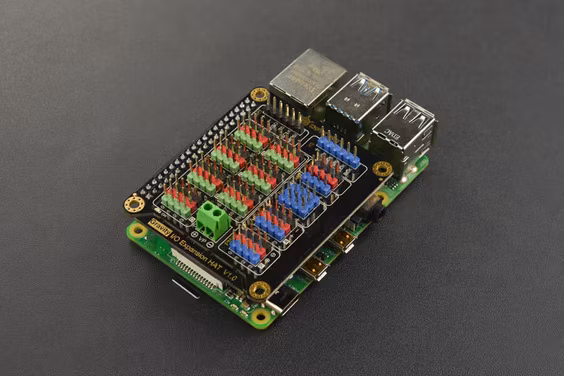

IO Expansion HAT for Raspberry Pi 4B/3B+

  • 21.64 EUR

This IO Expansion HAT from DFRobot is the perfect companion for your Raspberry Pi 4B/3B+! It leads out all of the IO ports on Raspberry Pi includ

I lager.
Article Number: 548
Share

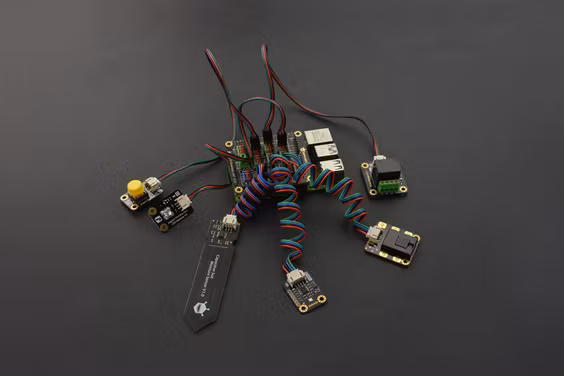

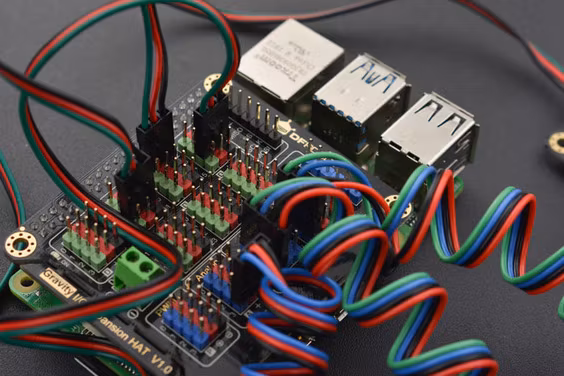

This IO Expansion HAT from DFRobot is the perfect companion for your Raspberry Pi 4B/3B+! It leads out all of the IO ports on Raspberry Pi including digital port, analog port, PWM, IIC, UART, SPI, and IIS. Besides that, the HAT is totally compatible with DFRobot Gravity Series, which frees users from complicated connection work and enables them to just concentrate on their projects' building.

Raspberry Pi GPIO pins work with a maximum logic level of 3.3V. Besides the sensor and module of the 3.3V power supply, the product also supports:

  • Sensor and module with 5V power supply and 3.3V level
  • PWM external power supply (6~12V)
  • Controlling multiple servos

SPECIFICATION

  • Operating Voltage: 5V
  • PWM Port External Power: 6-12V
  • Sensor Interface External Power: 3.3V

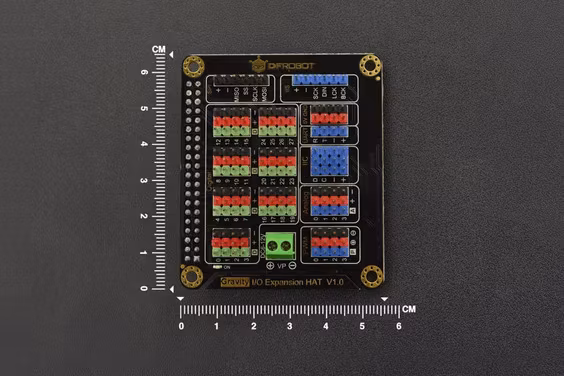

  • Dimension: 65*56 mm/2.56*2.20”

DOCUMENTS

SHIPPING LIST

  • IO Expansion HAT x1
