2.9inch Touch E-Paper E-Ink Display HAT for Raspberry Pi, 5-Points Capacitive Touch

I lager.
Antal: 3

349 kr

Artikelnummer: 1012

2.9inch Touch E-Paper E-Ink Display HAT For Raspberry Pi, 5-Points Capacitive Touch, 296×128 Pixels, Black / White, SPI Interface

2.9" TOUCH E-PAPER HAT FOR RASPBERRY PI

Capacitive Touch, Partial Refresh, Low Power, Wide Viewing Angle, Paper-Like Effect

Ideal for price tags, shelf labels, industrial instruments...



Size  2.9"


Resolution  296×128


Viewing Angle. >170°

Display Color   Black and White

Grey Scale 2


Touch Type Capacitive

Touch Points 5-Points

Touch Port I2C

Touch Pane Toughened Glass

Communication SPI

Power Consumption Ultra Low

Display Duration Persists without Power

Display Panel  E-paper

Experience Paper-like

Comfortably Reading Eye Care, No Bluelight

Environment  Ambient Light Required


Display Type Passively Reflective

Refreshing Partial Refresh Support

Features At A Glance

  • 2.9inch capacitive touch ePaper module, 296×128 resolution
  • 5-points touch support, user-defined wakeup gesture
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Reversed control interface, for connecting with controller boards like Arduino/STM32, etc.
  • Comes with development resources and manual (examples for Raspberry Pi

Specifications

OPERATING VOLTAGE3.3V/5VDISPLAY COLORblack, white
INTERFACE3-wire SPI, 4-wire SPIGREY SCALE2
OUTLINE DIMENSIONS89.10 × 42.70mmPARTIAL REFRESH TIME0.3s
DISPLAY SIZE66.89 × 29.05mmFULL REFRESH TIME2s
DOT PITCH0.227 × 0.226mmREFRESH POWER26.4mW (typ.)
RESOLUTION296×128 pixelsSTANDBY CURRENT<0.01uA (almost none)
TOUCH POINTS5VIEWING ANGLE>170°

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

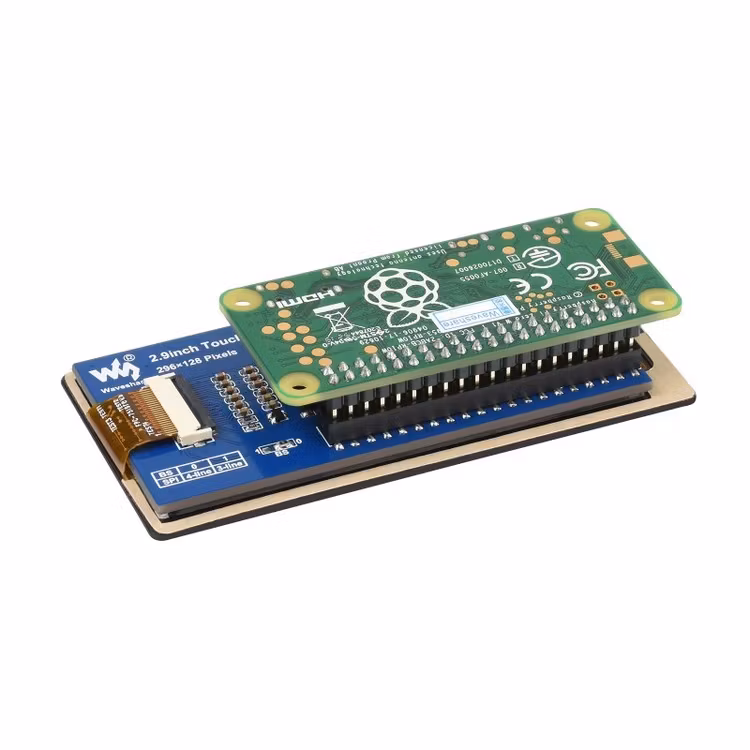

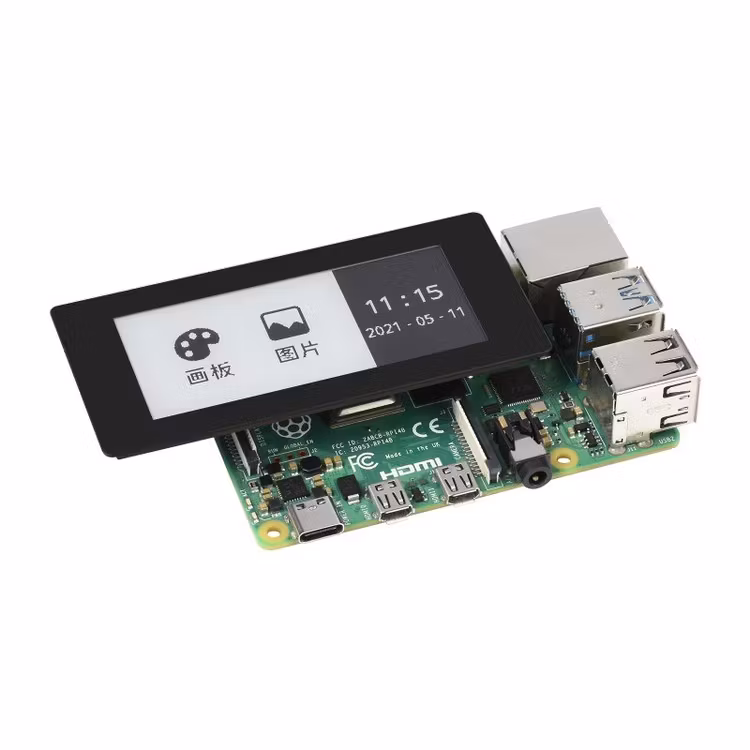

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series Boards

Raspberry Pi in the photo is NOT included.

Reversed Control Interface

I2C Bus For Touch Panel, SPI Bus For Display

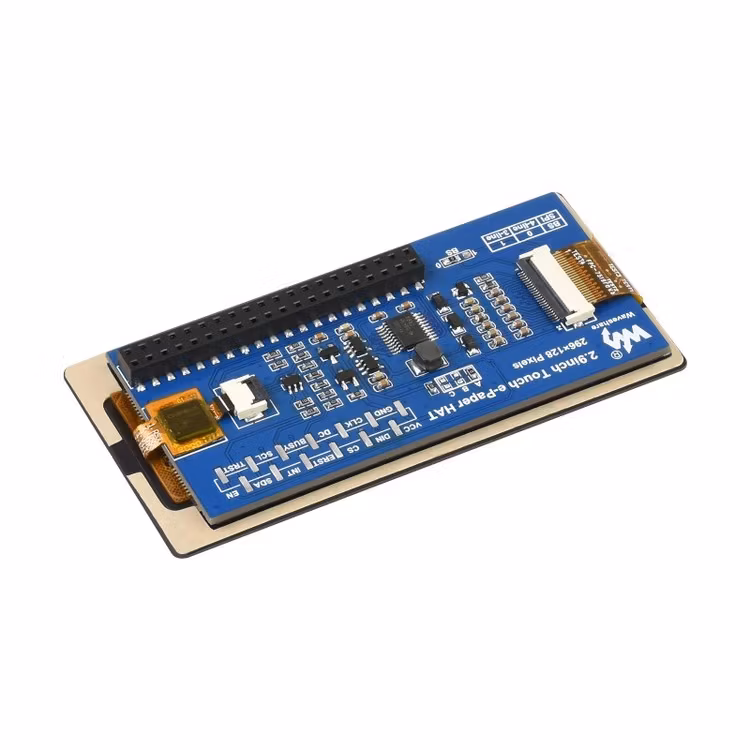

VCC
3.3V/5V
GND
GND
DIN
SPI MOSI pin
CLK
SPI SCK pin
CS
SPI chip selection, low active
DC
Data / Command selection (high for data, low for command)
ERST
External reset, low active
BUSY
Busy status output, high active
INT
Touch controller interrupt pin
SCL
Touch controller I2C clock pin
SDA
Touch controller I2C data pin
TRST
Touch controller reset, low active
EN
Touch control power supply enable (optional), high active

Touch Control Power Supply Configuration

The Touch Control Power Supply Is Determined By The Position Of 0R Resistor

0R RESISTOR POSITION
TOUCH CONTROL POWER SUPPLY
DESCRIPTION
A
VCC
always powered by VCC (default)
B
EN
controlled by user I/O
C
VEN
controlled with ePaper (ERST)
NC
GND
no power supply for touch control

Demonstration

Outline Dimensions

Resources & Services

WIKI: 2.9inch_Touch_e-Paper_HAT

Shipping list

Weight: 0.029 kg

  1. 2.9inch e-Paper HAT x1
