5V 2 Channel Bluetooth Relay Module Smart Home Mobile APP Remote Control Switch

  • 199 kr

Channel Model1. Description:The 5V dual circuit Bluetooth relay module consists of 2 5V//10A relay modules and an SPP-C Bluetooth serial slave module. The switc

I lager.
Lagersaldo: 2
Artikelnummer: 802

Channel Model

1. Description:

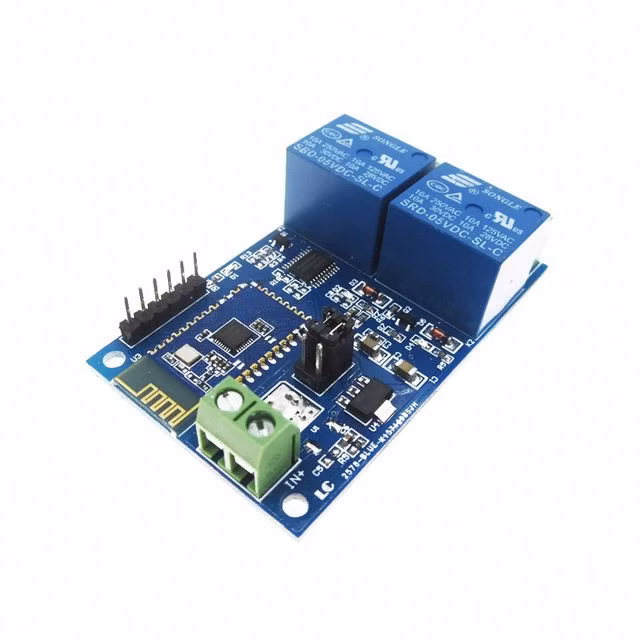

The 5V dual circuit Bluetooth relay module consists of 2 5V//10A relay modules and an SPP-C Bluetooth serial slave module. The switch of the relay can be controlled by sending instructions from the mobile APP.

2. Functions:

  1.  On-board loaded STM8S high-performance MCU and SPP-C Bluetooth 2.1 slave module
  2. Provide Bluetooth relay control APP
  3. Control distance: 10M (open environment)
  4. Operating voltage: DC5V
  5. On-board 2 way 5V, 10A/250V AC 10A/30V DC relay, can be continuously absorbed 100 thousand times. With diode purging protection, the response time is short.
  6. On-board Bluetooth status indicator and relay indicator
  7. Reserve UART debug interface and STM8 SWIM program download interface
    Board size: 40*64.5mm

3. Operation description:
1. Connection power: the IN+ and IN- of the module are connected to the positive and negative poles of the 5V power supply
2. Use APP to control 2-way relay
Bluetooth Relay General APP Usage Description:
2.1 Android mobile phone installation APP “BlueSPP-37”, Bluetooth serial port transmission tool, used to send relay control instructions. Click “switch”. Then press the gray square in the interface, and then input the name and content of the 2 relay control instructions (the instruction format is HEX) respectively.

2.2 Open “BlueSPP-37”, APP, click "connect". The mobile phone is connected to the Bluetooth module. After the connection, the blue light turns from slow flash to steady light. Click on the gray square can send instructions to control the switch of the relay.

3 Additional functions (as USB relay) instructions:

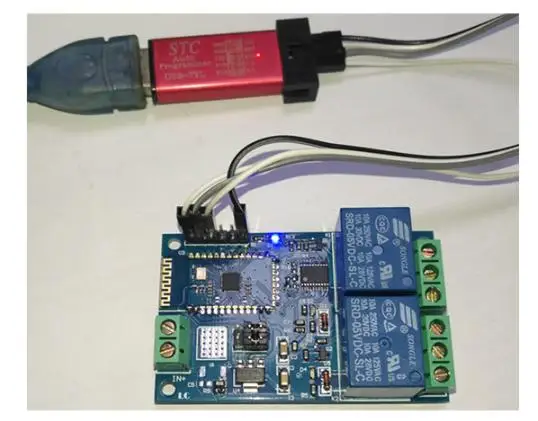

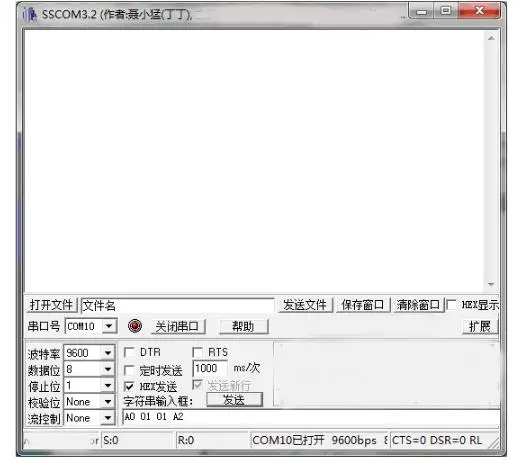

Prepare a USB to TT serial module, TTL module GND, TX, RX respectively relay module GND, TX, RX. On the computer, open the serial port debugging software (such as SSCOM32, the select baud rate is 9600, send sixteen A0 (HEX) form A0 0101 A2 and A0 0201 A3, you can turn on the first, second-way relay separately. The A0 0100 A1 and A0 0200 A2 are sent in the form of sixteen (HEX), and the first, second road relay can be closed respectively. Take the example of opening the relay as an example:



4 Bluetooth name and password modification method (as an example of 5V):

Connection method: the 5V, RX, TX, and GND on the Bluetooth relay module are connected to the USB to TTL serial module 5V respectively. RX, TX, GND (if the serial port instruction does not respond, you can try to exchange TX and RX) and modify the Bluetooth related parameters by sending AT instructions.

4.1 Modify the password:
If you want to change the password to 8888, open the punching debugging assistant software on the computer (SSCOM32, select the baud rate 9600, check the "send the new line"), enter AT+PIN8888, click send.

4.2 Modify the Bluetooth Name:
If the AT+NAMEBOLUTEK is sent, the name can be modified to BOLUTEK, and then AT+reset is sent to bring the name into effect.

4. Package included:


1* 5V dual circuit Bluetooth relay module
