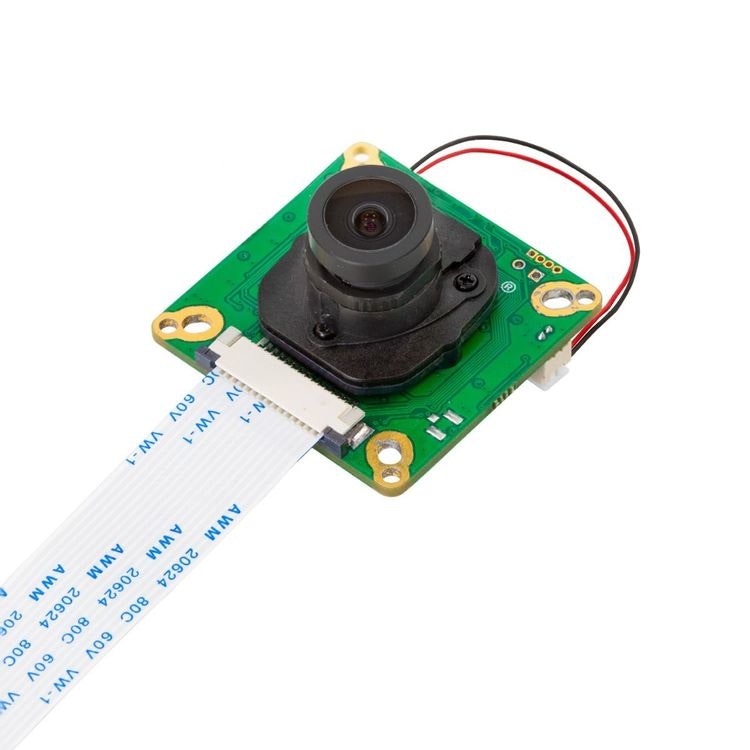

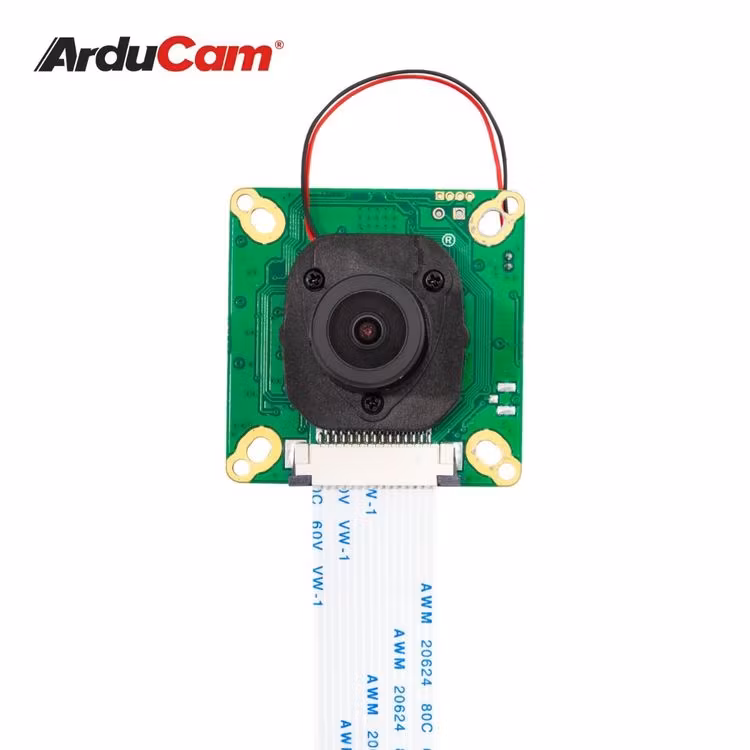

Arducam 13MP AR1335 OBISP MIPI Camera Module with Motorized IR-CUT Filter Raspberry Jetson Nano

I lager.
899 kr

845 kr

Artikelnummer: 829

Arducam 13MP AR1335 OBISP MIPI Camera Module with Motorized IR-CUT Filter for Daylight and Night vision Support Raspberry Pi, Jetson Nano.

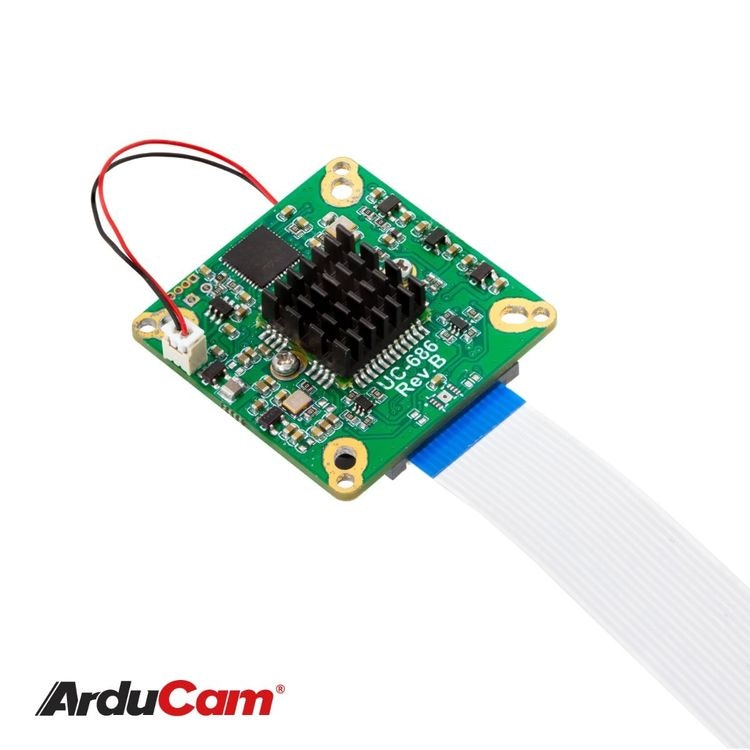

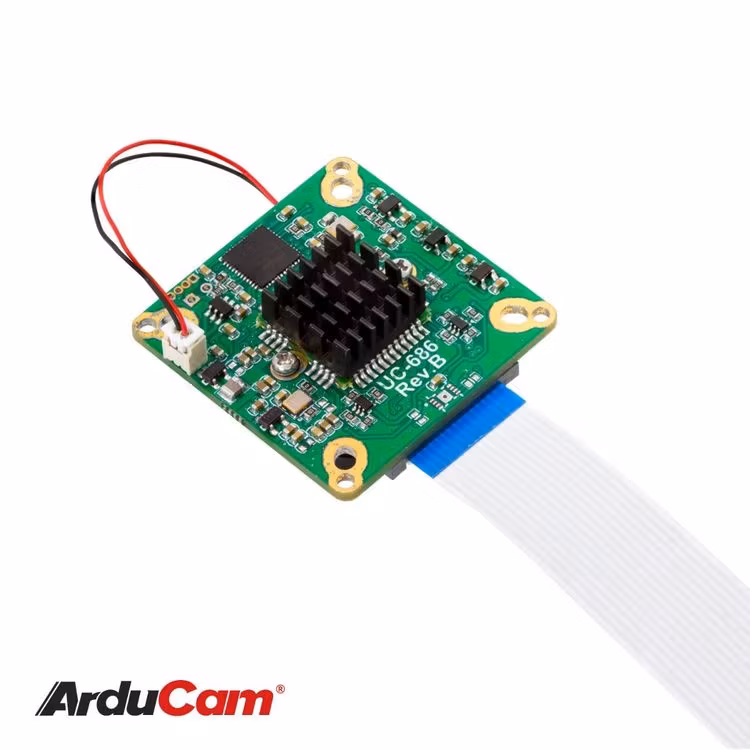

Arducam 13MP OBISP MIPI camera features onboard ISP (Image Signal Processor), it uses standard Raspberry pi 15pin MIPI CSI-2 interface, and works seamlessly on Raspberry pi, Jetson Nano, and can also be ported to other platforms which compliant to MIPI CSI-2 interface protocol.

Features

  • Resolution: High Resolution
  • Shutter Type: Rolling Shutter
  • Color Type: Color
  • IR sensitivity: IR Cut Switcher for Daylight and Night Vision
  • Interface: 2-Lane MIPI CSI-2
  • Format: YUV422, RGB888
  • ISP Features: AWB, AE, Flip, Mirror, DeNoise, Gamma, Sharpness, Saturation, Contrast Digital Zoom, Digital Pan/Tilt, Speical Effects etc

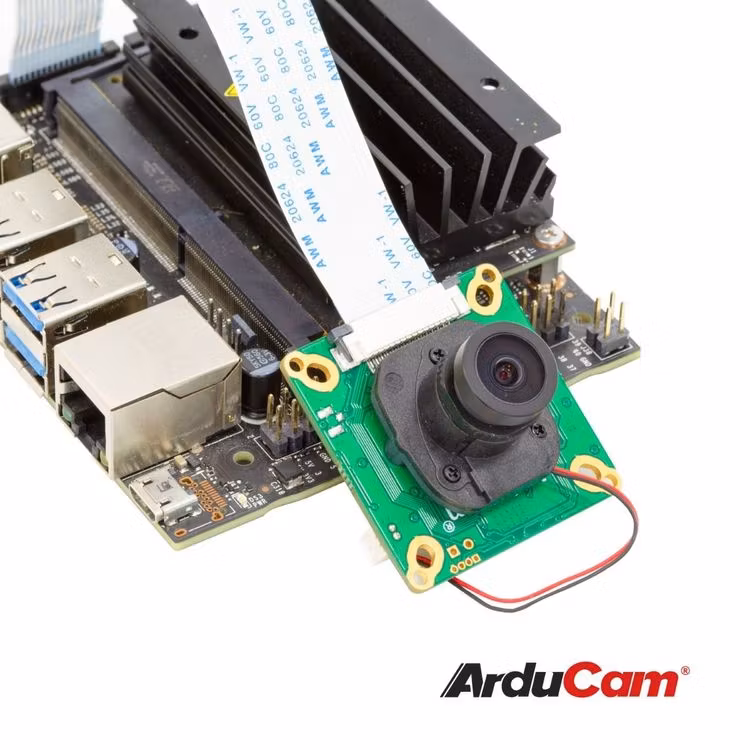

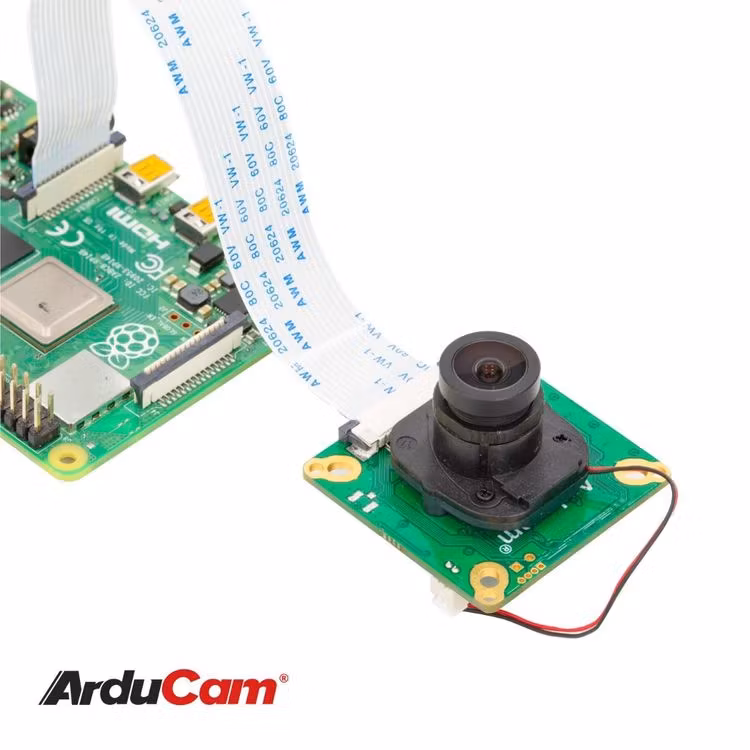

  • Platform Support: Raspberry Pi, Jetson Nano or platform with MIPI CSI-2 interface

Specification

  • Sensor Type: 13MP AR1335
  • Pixel Size: 1.1um x 1.1um
  • Resolution: 4160×3120
  • Optical Size: 1/3″
  • Lens spec: M12 default, EFL: 2.1mm, FoV(H): 100°, F/NO: 2.0
  • Max Data Rate: 1.2Gbps/lane
  • Frame Rate: 7fps@4160×3120, 11fps@3264×2448/3840×2160, 24fps@2560×1440, 30fps@1600×1200/1920×1080/640×480/320×240
  • Responsivity: 4.7k e/lux-sec
  • SNR(Max): 37dB
  • Dynamic Range: 69dB
  • Power Consumption: 270mW
  • Temperature Range: -10 ~ 70 degrees
  • Camera Driver: V4L2 Compliant driver for Raspberry pi and Jetson Nano
  • Board Size: 38mm x  38mm

Applications

  • Cellular phones
  • Digital still cameras
  • PC cameras
  • IoT cameras

Documentation

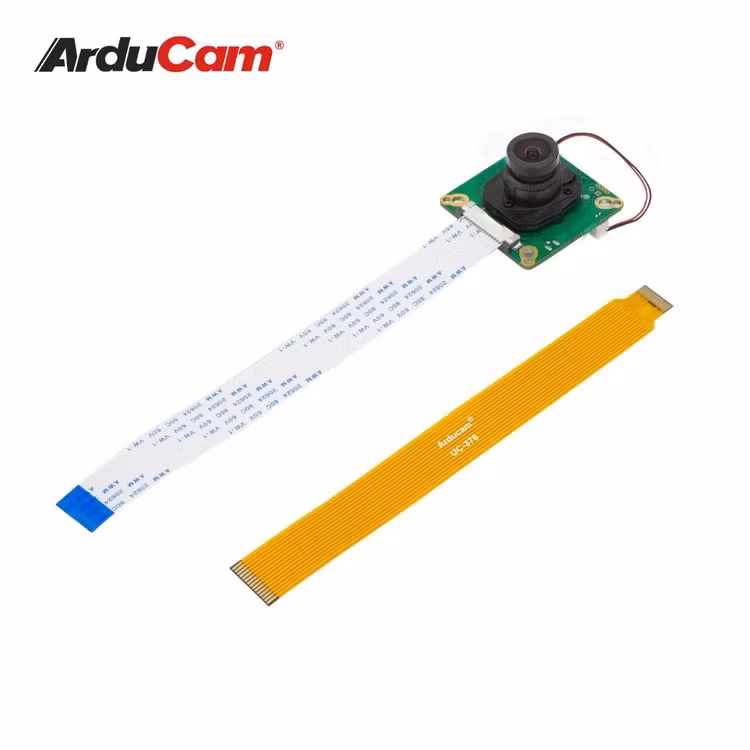

Package Including

  • 1pcs Arducam 13MP OBISP Camera Module with motorized IR Cut
  • 1pcs 150mm 15pin to 22pin Flex Cable
