M5StickC ESP32-PICO Mini IoT Development Board

  • 349 kr

Pre-order delivery at the beginning of July M5Stick-C is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT development boar

Produkten är tyvärr slut i lager. :(

Artikelnummer: 384
Dela

Pre-order delivery at the beginning of July

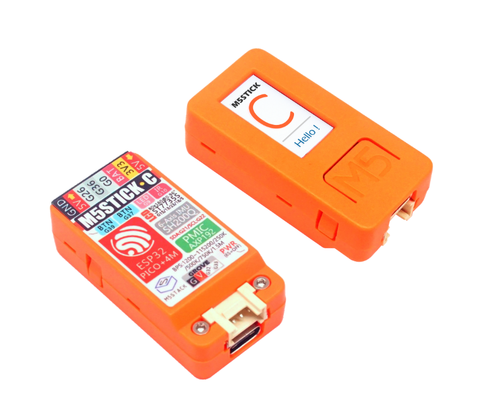

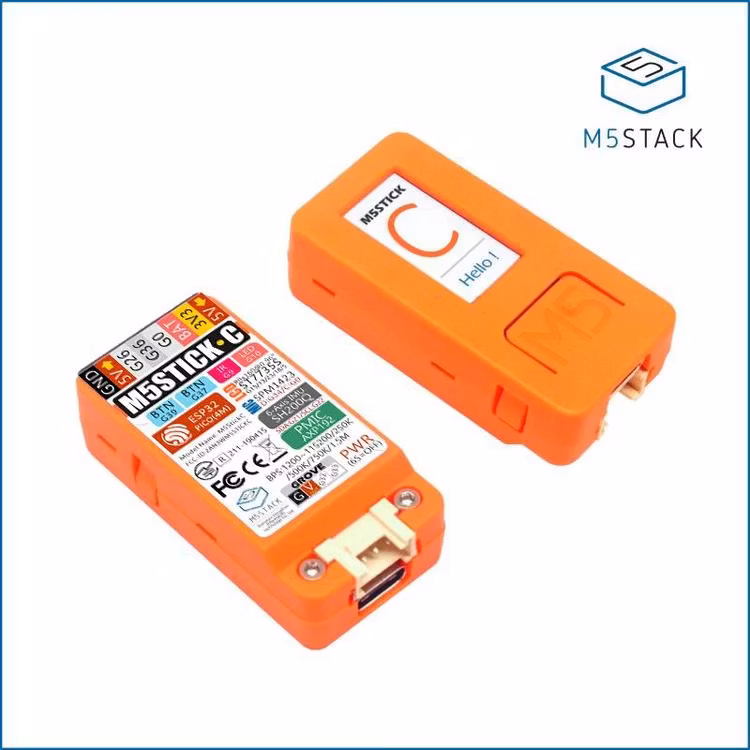

M5Stick-C is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT development board.

What it can do? This tiny block is able to realize your idea, enlighten your creativity, and help with your IoT prototying in a very short time. It will takes away a lot of the pains form the development process.

M5stickC is one of the core devices in M5Stack product series which is built in a continues growing hardware & software ecosystem. It has a lot of compatible modules & units, as well as the open source code & engineering community that will help you maximum your benefit in every step of the developing process.

Notice:

  • Only Orange type is available for now

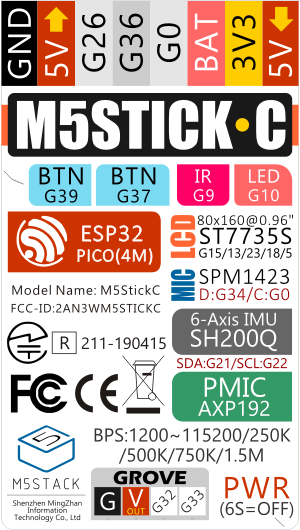

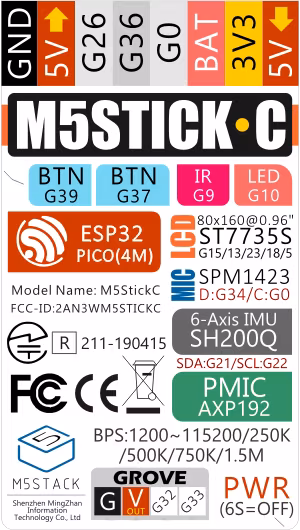

Product Features

  • 5V DC power supply
  • USB Type-C
  • ESP32-based
  • 4 MByte Flash + 520K RAM
  • 6-Axis IMU SH200Q
  • Red LED
  • IR transmitter
  • Microphone
  • 2 Buttons, LCD(0.96 inch), 1 Reset
  • 2.4G Antenna: Proant 440
  • 80 mAh Lipo Battery
  • Extendable Socket
  • Grove Port
  • Wearable & Wall mounted
  • Development Platform UIFlow, MicroPython, Arduino

ESP32 Features

  • 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
  • Integrated 520 KB SRAM
  • Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
  • Integrated dual mode Bluetooth (classic and BLE)
  • Hall sensor
  • 10x capactive touch interface
  • 32 kHz crystal oscillator
  • PWM/timer input/output available on every GPIO pin
  • SDIO master/salve 50MHz
  • SD-card interface support

Part List

  • 1x M5StickC
  • 1x USB Type-C cable

Developing resource

Data Sheet:

ESP32-PICO:

https://github.com/m5stack/M5-Schematic/blob/master/Core/esp32-pico-d4_datasheet_en.pdf

Test Routine:

Arduino:

https://github.com/m5stack/M5StickC/tree/master/examples/Basics/FactoryTest
