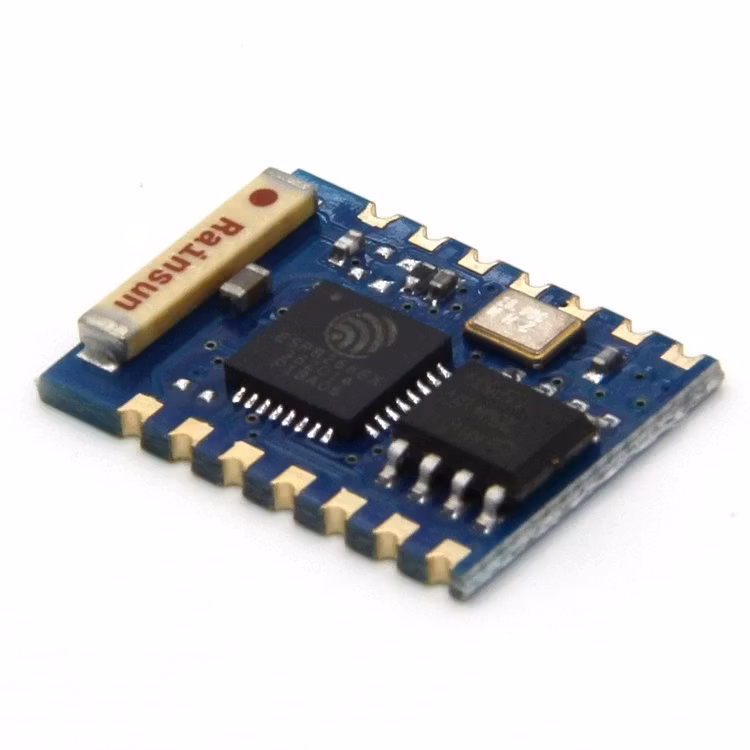

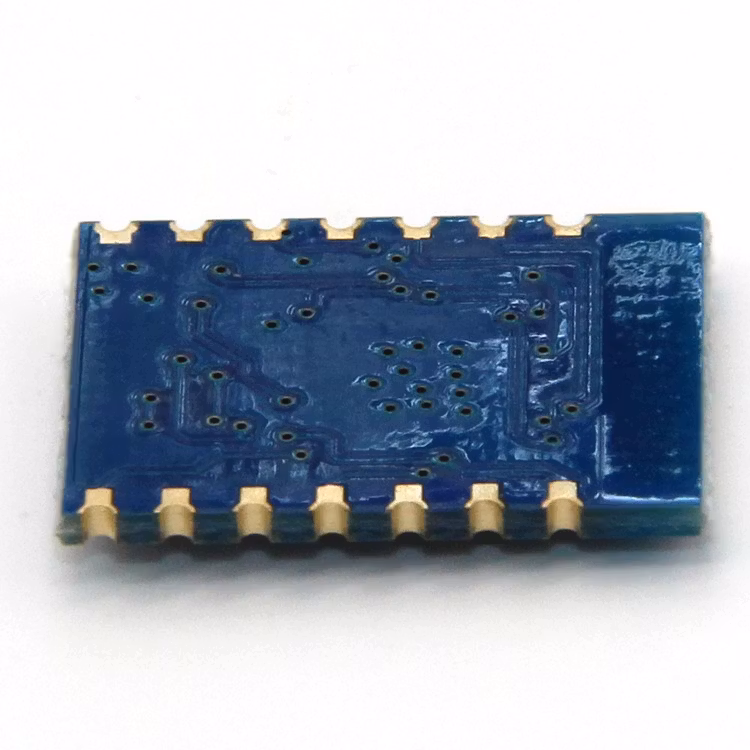

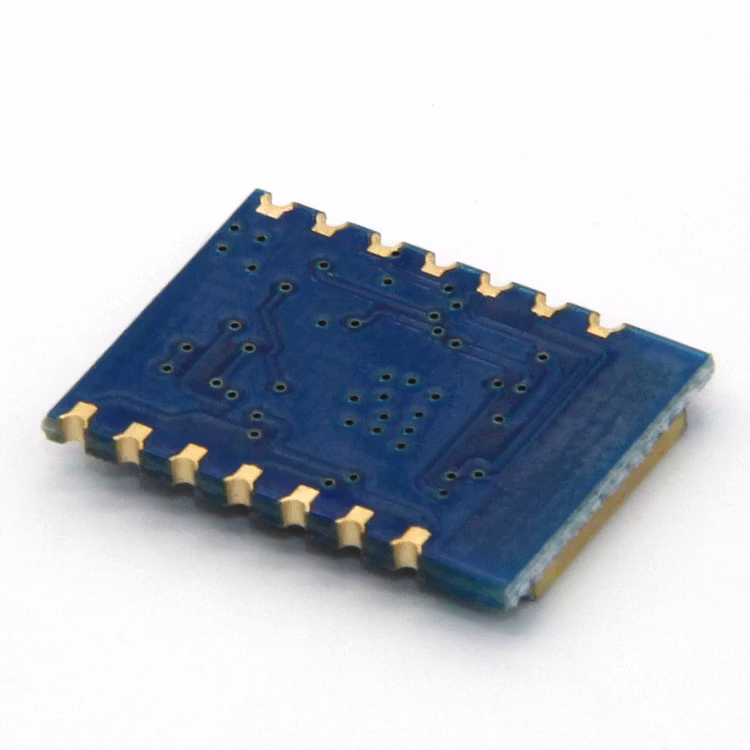

ESP-03 Serial WIFI Module Wireless Transceiver Send Receive

I lager.

75 kr

Characteristics

 1. Support 802.11 B/G/N

2. Communication range up to 100 yards depending on environment.

3. Standard 3.3VDC operation with 5V compatible I/O.

4. Standard 3 wire (TXD/RXD/GND) serial communication (idle high) at 115200/8/N/1.

5. Standard 0.1″ (2.54mm) half through hole.

6. Upgradeable firmware.

7. Three mode of operations: Client/Access Point/Both Client and Access Point.

8. Support all major security schemes: OPEN/WEP/WPA_PSK/WPA2_PSK/WPA_WPA2_PSK.

9. Support both TCP and UDP communication.

10. Working as TCP/UPD server supports up to five (5) connections.

11. Working as station can connect up to 5 TCP/UPD servers.

12. Simple AT commands for all operations.

13. Dimensions in mm 17.3 × 12.1.

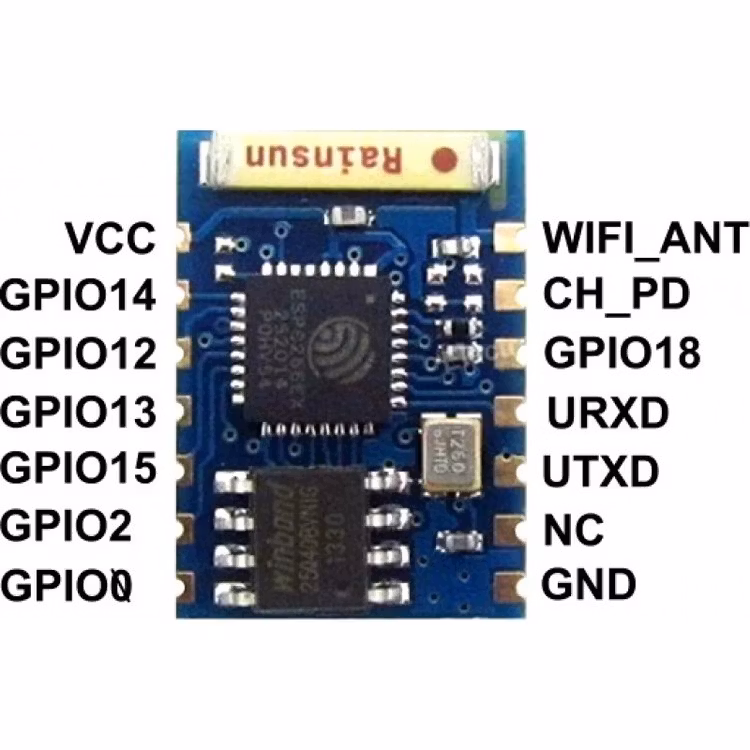

14. 7 Gpio (I/O)
