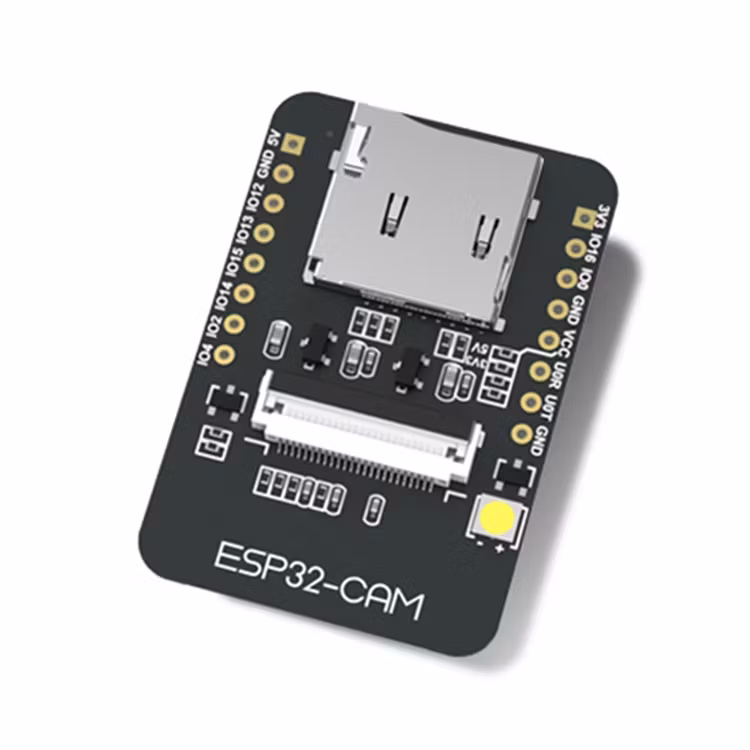

ESP32-CAM WiFi Bluetooth utvecklingsbord med kamera



199 kr

ESP32-CAM WiFi Bluetooth utvecklingsbord med kamera  har en mycket konkurrenskraftig liten kameramodul som kan fungera som ett minsta system med ett fotavtryck på endast 27 * 40,5 * 4,5 mm och en djup sömn ström på upp till 6mA.
ESP-32-CAM kan användas allmänt i olika IoT-applikationer. Den är lämplig för smarta enheter, trådlös trådlös kontroll, trådlös övervakning, QR-trådlös identifiering, trådlösa positioneringssystem signaler och andra IoT-applikationer. Det är en idealisk lösning för IoT-applikationer.
ESP-32CAM antar DIP-paket och kan sättas direkt in i backplane för att uppnå snabb produktproduktion, vilket ger kunderna högt tillförlitlig anslutningsläge, vilket är lämpligt för applikation i olika IoT-hårddiskterminaler.

Koppling

ESP32-CAM kommer inte med en USB-kontakt så du behöver antingen en CP2102 mikro eller mini USB till TTL Serial Converter för att ansluta den till din dator.

Ni kan köpa vilken typ av CP2102 USB UARTtyp här eller väljer i kombinations

Funktioner

  • Den minsta 802.11b / g / n Wi-Fi BT SoC-modulen
  • 32-bitars CPU med låg effekt, kan även servera applikationsprocessorn
  • Upp till 160MHz klockhastighet, Sammanfattning datorkraft upp till 600 DMIPS
  • Inbyggd 520 KB SRAM, extern 4MPSRAM
  • SupportsUART / SPI / I2C / PWM / ADC / DAC
  • Stöd OV2640 och OV7670 kameror, Inbyggd blixtlampa.
  • Supportbild WiFI uploadSupport TF cardSupports flera vilolägen.
  • Embedded Lwip och FreeRTOS
  • Stöder STA / AP / STA + AP-drift modeSupport Smart Config / AirKiss-teknik
  • Stöd för lokala och lokala firmwareuppgraderingar (FOTA)
Technical details

Dimensions
40.5mm x27mm x4.5mm
Weight
G.W 20g
Battery
Exclude
Package
DIP-16
SPI Flash
Default 32Mbit
RAM
520KB SRAM +4M PSRAM
Bluetooth
Bluetooth 4.2 BR/EDR and BLE standards
Wi-Fi
802.11 b/g/n/
Support interface
UART、SPI、I2C、PWM
Support TF card
Maximum support 4G
IO port
9
UART Baudrate
Default 115200 bps
Image Output Format
JPEG( OV2640 support only ),BMP,GRAYSCALE
Spectrum Range
2412 ~2484MHz
Antenna
Onboard PCB antenna, gain 2dBi
Transmit Power
802.11b: 17±2 dBm (@11Mbps); 802.11g: 14±2 dBm (@54Mbps); 802.11n: 13±2 dBm (@MCS7)
Receiving Sensitivity
CCK, 1 Mbps : -90dBm; CCK, 11 Mbps: -85dBm; 6 Mbps (1/2 BPSK): -88dBm; 54 Mbps (3/4 64-QAM): -70dBm; MCS7 (65 Mbps, 72.2 Mbps): -67dBm
Power Dissipation
Turn off the flash lamp:180mA@5V; Turn on the flash lamp and turn on the brightness to the maximum:310mA@5V; Deep-sleep: Minimum power consumption can be achieved 6mA@5V; Moderm-sleep: Minimum up to 20mA@5V; Light-sleep: Minimum up to 6.7mA@5V
Security
WPA/WPA2/WPA2-Enterprise/WPS
Power Supply Range
5V
Operating Temperature
-20 ℃ ~ 85 ℃
Storage Environment
-40 ℃ ~ 90 ℃ , < 90%RH




English

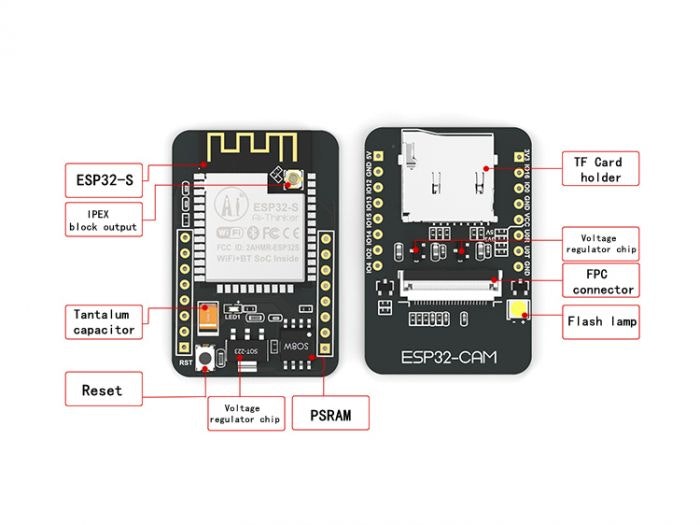

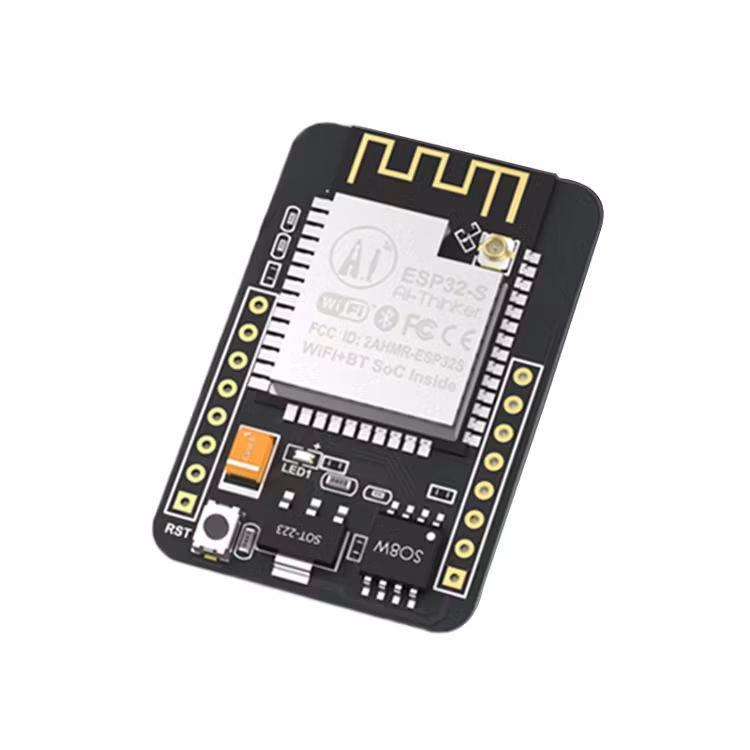

ESP32-CAM is a low-cost ESP32-based development board with an onboard camera, small in size. It is an ideal solution for IoT application, prototypes constructions and DIY projects.
The board integrates WiFi, traditional Bluetooth and low power BLE, with 2 high-performance 32-bit LX6 CPUs. It adopts 7-stage pipeline architecture, on-chip sensor, Hall sensor, temperature sensor and so on, and its main frequency adjustment ranges from 80MHz to 240MHz.
Fully compliant with WiFi 802.11b/g/n/e/i and Bluetooth 4.2 standards, it can be used as a master mode to build an independent network controller, or as a slave to other hosts MCUs to add networking capabilities to existing devices.
ESP32-CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.

Notes:
1. Please be sure that the power supply for the module should be at least 5V 2A, otherwise, maybe there would be water ripple appearing on the image.
2.ESP32 GPIO32 pin is used to control the power of the camera, so when the camera is in working, pull GPIO32 pin low.
3. Since IO pin is connected to camera XCLK, it should be left floating in using, and do not connect it to a high/low level.
4. The product has been equipped with default firmware before leaving the factory, and we do not provide additional ones for you to download. So, please be cautious when you choose to burn other firmware.

FEATURES

  • Up to 160MHz clock speed,Summary computing power up to 600 DMIPS

  • Built-in 520 KB SRAM, external 4MPSRAM

  • Supports UART/SPI/I2C/PWM/ADC/DAC

  • Support OV2640 and OV7670 cameras, Built-in Flashlamp.

  • Support image WiFI upload

  • Support TF card

  • Supports multiple sleep modes.

  • Embedded Lwip and FreeRTOS

  • Supports STA/AP/STA+AP operation mode

  • Support Smart Config/AirKiss technology

  • Support for serial port local and remote firmware upgrades (FOTA)

SPECIFICATION

  • SPI Flash: default 32Mbit
  • RAM: built-in 520 KB+external 4MPSRAM

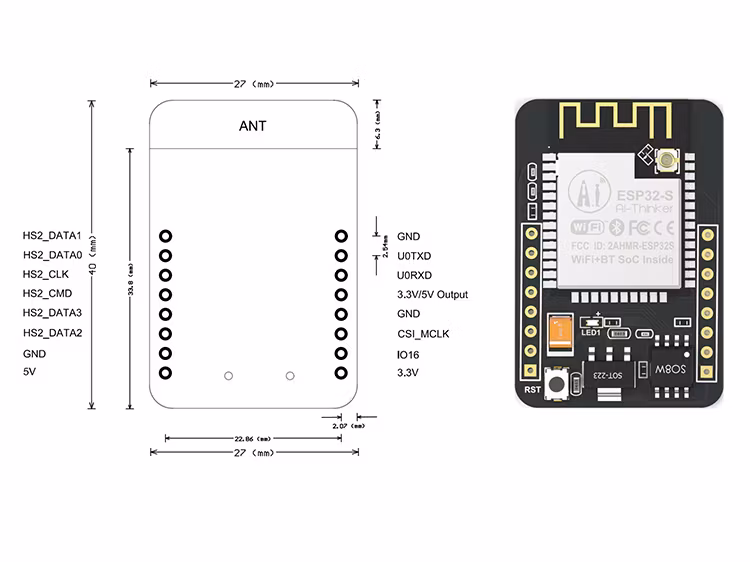

  • Dimension: 27*40.5*4.5(±0.2)mm/1.06*1.59*0.18”
  • Bluetooth: Bluetooth 4.2 BR/EDR and BLE standards
  • Wi-Fi: 802.11b/g/n/e/i
  • Support Interface: UART, SPI, I2C, PWM
  • Support TF card: maximum support 4G
  • IO port: 9
  • Serial Port Baud-rate: Default 115200 bps
  • Image Output Format: JPEG( OV2640 support only ), BMP, GRAYSCALE
  • Spectrum Range: 2412 ~2484MHz
  • Antenna: onboard PCB antenna, gain 2dBi
  • Transmit Power: 802.11b: 17±2 dBm (@11Mbps);
                                  802.11g: 14±2 dBm (@54Mbps);
                                  802.11n: 13±2 dBm (@MCS7)
  • Receiving Sensitivity: CCK, 1 Mbps : -90dBm;
                                          CCK, 11 Mbps: -85dBm;
                                          6 Mbps (1/2 BPSK): -88dBm;
                                          54 Mbps (3/4 64-QAM): -70dBm;
                                          MCS7 (65 Mbps, 72.2 Mbps): -67dBm
  • Power consumption: Turn off the flash: 180mA@5V
                                          Turn on the flash and adjust the brightness to the maximum: 310mA@5V
                                          Deep-sleep: the lowest power consumption can reach 6mA@5V
                                          Modern-sleep: up to 20mA@5V
                                          Light-sleep: up to 6.7mA@5V
  • Security: WPA/WPA2/WPA2-Enterprise/WPS
  • Power supply range: 5V
  • Operating temperature: -20 °C ~ 85 °C
  • Storage environment: -40 °C ~ 90 °C, < 90%RH
  • Weight: 10g

DOCUMENTS

SHIPPING LIST

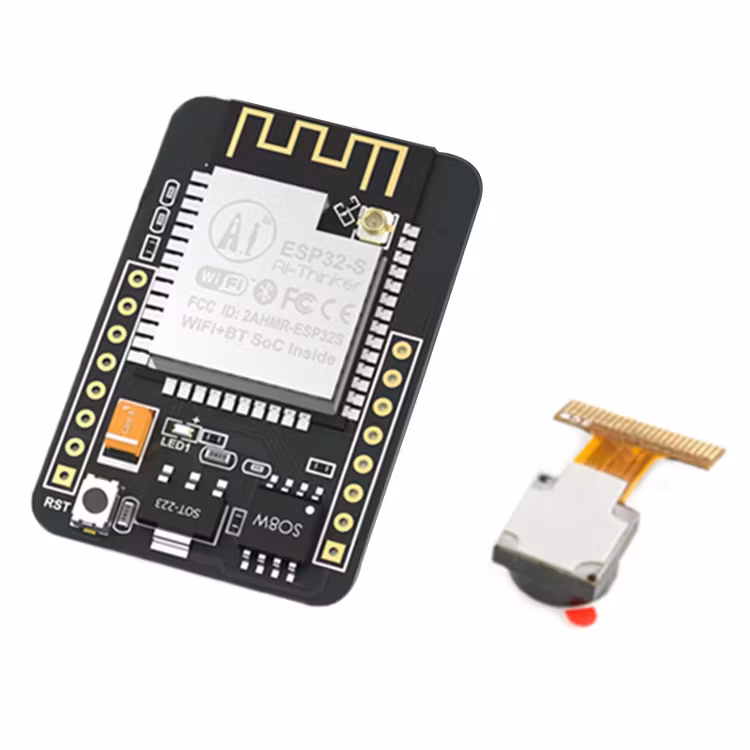

ESP32-CAM Development Board x1

Länkar för utveckling

 ESP32 Camera Demo

OV2640 Camera Datasheet

SDK för utveckling

ESP32-CAM Video Streaming and Face Recognition with Arduino IDE

You can find good guide
