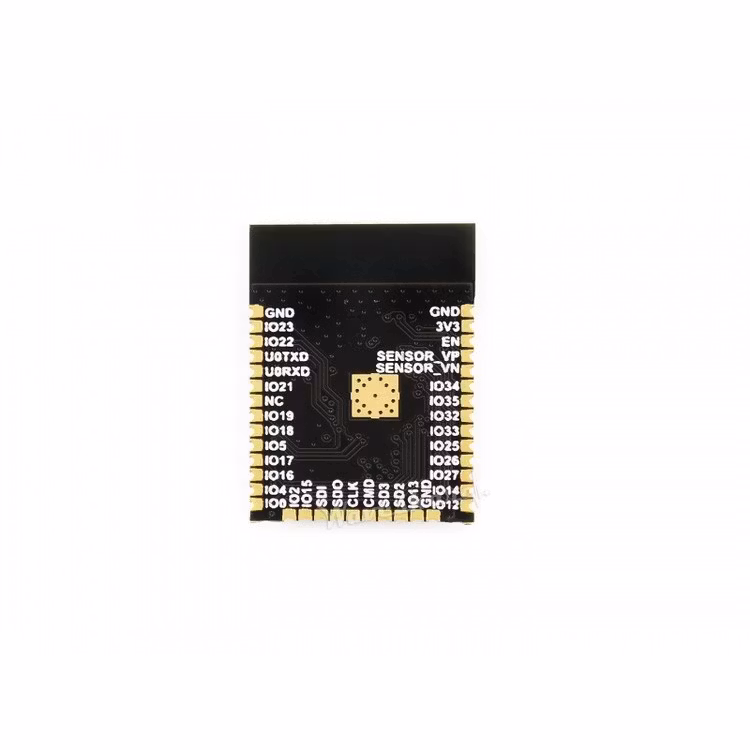

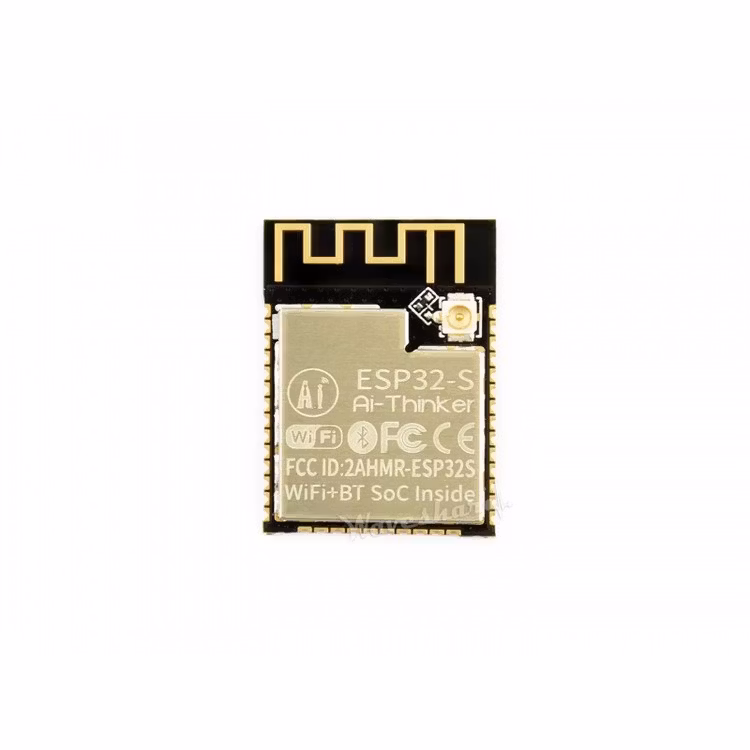

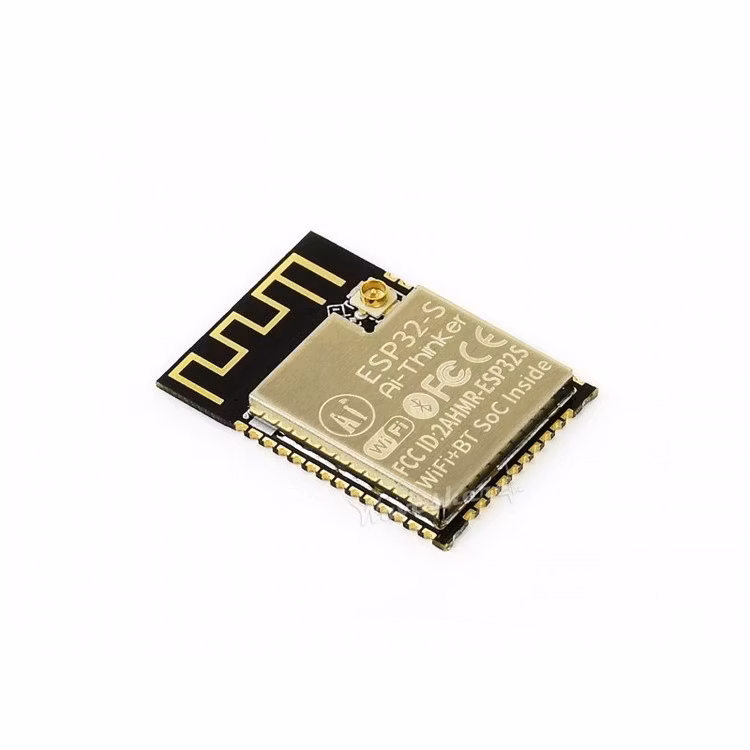

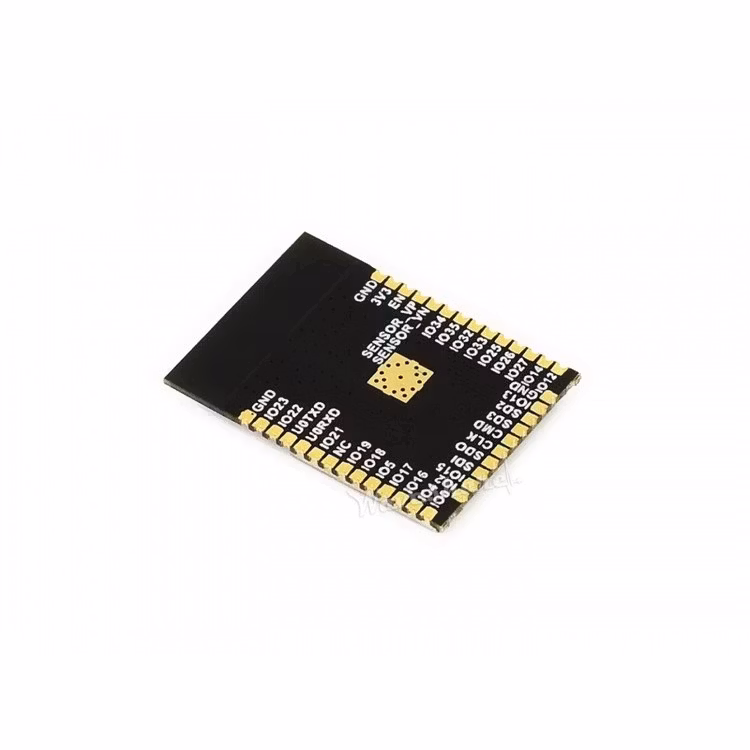

ESP32-S WiFi Bluetooth Module Based on ESP32

99 kr

The ESP32-S is a wireless module based on ESP32, supports WiFi and Bluetooth 4.2, with built-in 32Mbit Flash, in the SMD38 package. There're also onboard PCB antenna and metal shield. In short, it's a small form factor and fairly high cost-effective wireless module.

With the pre-flashed AT firmware, you can control the module through UART AT commands easily. The module integrates MCU inside, supports other developments like Lua/Micropython/Arduino to achieve flexible and fast prototyping, make it easy to integrate the module into IoT applications.

Features

  • 802.11b/g/n Wi-Fi+BT SOC
  • Dual-core 32-bit CPU, 240 MHz frequency, computing capability up to 600DMIPS
  • Built-in two 12 bit SAR ADCs, up to 18 channels
  • Supports UART/SPI/I2C/SDIO/GPIO/ADC/PWM
  • SMD38 package
  • Supports OpenOCD debug interface
  • Supports multi sleep modes, deep sleep current as low as 6.5uA
  • UART baudrate up to 4Mbps
  • Embedded Lwip and FreeRTOS
  • Supports STA/AP/STA+AP operation mode
  • Supports Smart Config (APP) / AirKiss (WeChat), one key networking
  • Supports UART local firmware upgrade and/or remote firmware upgrade (FOTA)
  • AT commands for getting started fast
  • Supports secondary development, integrated Windows / Linux environment

Applications

The ESP32-S suit for IOT applications such as:

  • Smart home
  • Intelligent building
  • Industrial automation
  • Wearable devices
  • IP camera
  • Intelligent agriculture

Development Resources

Wiki : www.waveshare.com/wiki/ESP32-S
