RePhone Geo Kit

  • 590 kr

Tracking things down with the RePhone Geo Kit!The combination of Xadow GSM+BLE and Xadow GPS v2 is what makes RePhone Geo Kit brilliant. The kit can f

Produkten är tyvärr slut i lager. :(

Artikelnummer: 395
Dela
  • Information

Tracking things down with the RePhone Geo Kit!
The combination of Xadow GSM+BLE and Xadow GPS v2 is what makes RePhone Geo Kit brilliant. The kit can fulfil your GPS based project easily and excellently. It allows you to obtain the real-time geographic position, altitude, travelling speed and time information at any time, and all-weather conditions, through GSM network (SMS). Also as a bonus, the Xadow GSM Breakout can provide you with more possibilities for hacking electronics.

Features

  • Slim and small modules

  • Powered by Xadow GSM+BLE

  • High sensitivity

  • Low power consumption

  • Various rich-featured add-on modules for function extension

  • Stackable, chainable and sewable with other Xadow Modules




Technical details

Dimensions
200mm x140mm x20mm
Weight
G.W 147g
Battery
Lithium Cells/Batteries packed with equipment UN3481 -PI966
Core Module
Xadow GSM+BLE
Microcontroller
MT2502
MCU Core
32-bit ARM7EJ-STM RISC processor
RAM
4MB
Flash Memory
16MB
Power Supply
3.3 – 4.2V
Power Consumption
20mW/30mW/52mW @ standby(no radio)/standby(GSM)/standby(BT)
Quad-band
850/900/1800/1900 MHz
GPRS
Class 12 modem
Clock Speed
260 MHz
Connector
35 PIN Connector & 11 PIN Connector for Xadow, SMD Female JST battery connector
Interfaces
External ports for LCD, camera, I2C, SPI, UART, and GPIOs etc.
Dimension
25.37mm X 20.30mm / 1’’ X 0.8’’

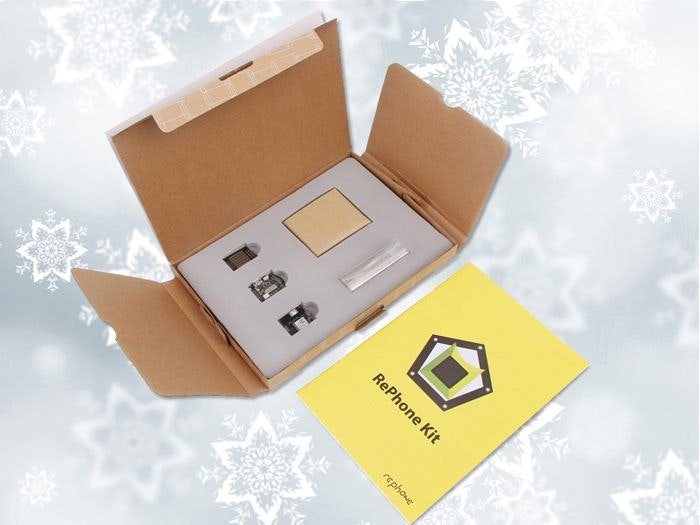

Part List

Xadow GSM+BLE
1
Xadow GPS v2
1
Xadow GSM Breakout
1
FPC Cable 35 PIN
1
FPC Cable 11 PIN
1
Battery 520mAh
1
User Guid
1

ECCN/HTS

ECCN
5A991.b
HSCODE
9023009000


Documents

Wiki
