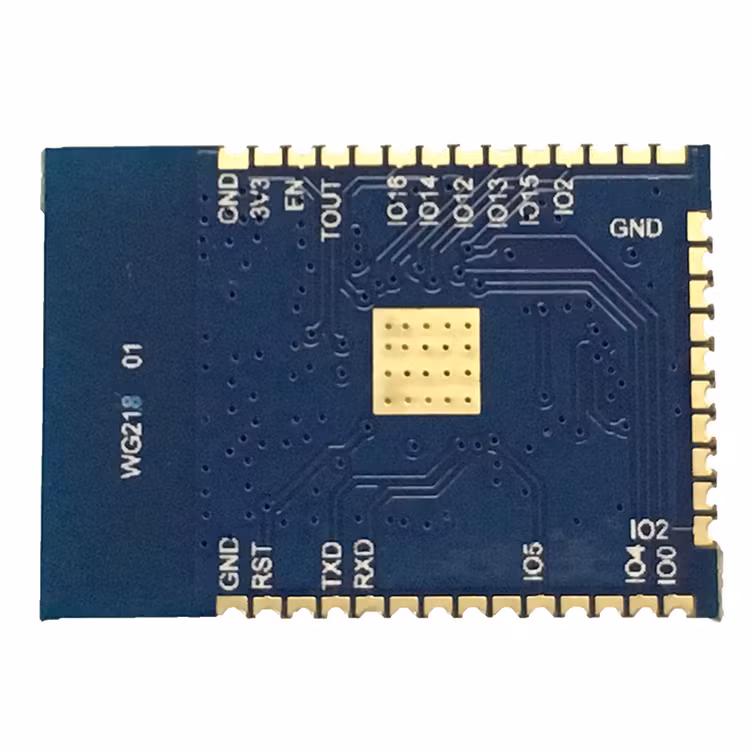

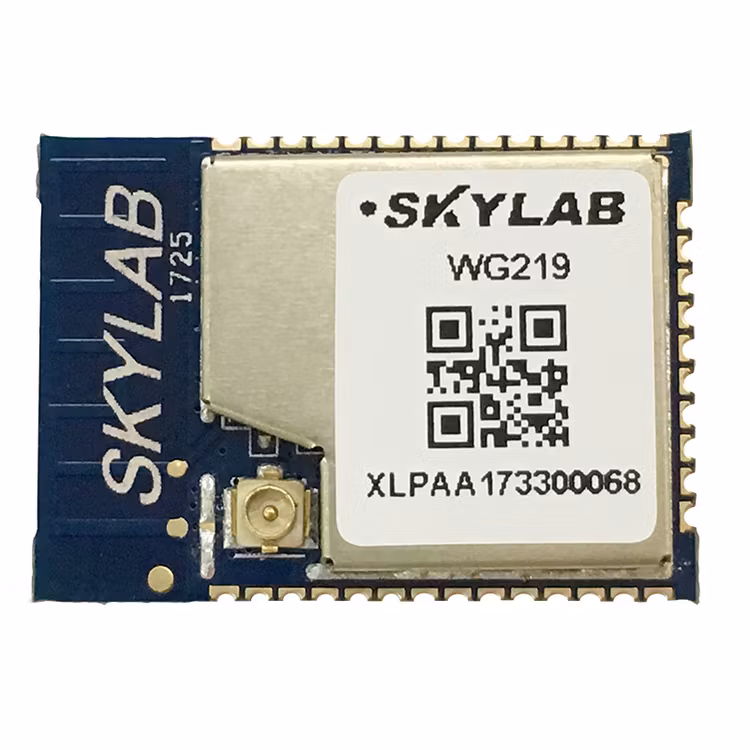

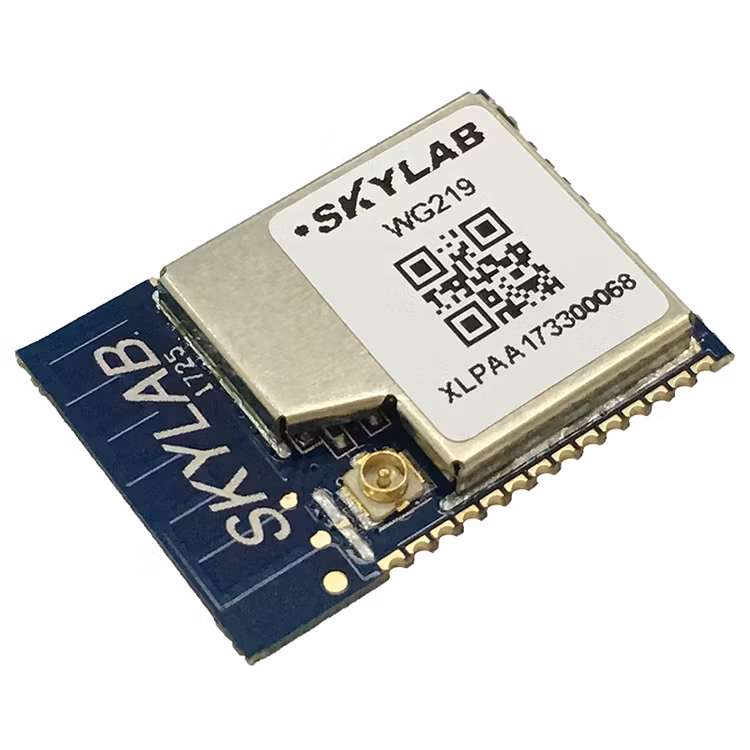

TCP/UDP/HTTP/FTP WG219 IoT WLAN Module Industry Control esp8266 wifi module with i2c.
The WG219 Wi-Fi Module is a small form-factor, single stream, 802.11b/g/n WiFi module with on-board low power application processor. It is a low cost serial WiFi module, support UART-WiFi - Ethernet data transmission.
The WG219 has been optimized for client applications in the home, enterprise, smart grid, home automation and control that have lower data rates and transmit or receive data on an infrequent basis. The WG219 Wi-Fi Module also enables rapid application development of ultra low power devices with the complete application SW on-chip . This combination makes the WG219 Wi-Fi Module an ideal solution for low power automation and sensor solutions because of its high efficiency and low power consumption.
The WG219 Wi-Fi Module can be used to design applications using 802.11b/g/n communication protocols. All features are enhanced by a built-in antenna, external antenna connector and an interface port to the carrier board. This interface port includes power supply pins, GPIO ports and UART ports.
Features of TCP/UDP/HTTP/FTP WG219 IoT WLAN Module Industry Control esp8266 wifi module with i2c
802.11 b/g/n/e/i
802.11 n (2.4 GHz), up to 72.2 Mbps
802.11 e: QoS for wireless multimedia technology
AT Set, Cloud Server, App
A-MPDU and A-MSDU aggregation
Network Protocols: IPv4, TCP/UDP/HTTP/FTP
Fragmentation and defragmentation
Automatic Beacon monitoring/scanning
802.11 i security features: pre-authentication and TSN
Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)
Infrastructure BSS Station mode/Soft AP mode
Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management
UMA compliant and certified
Antenna diversity and selection /RoHS compliance (Lead-free) /FCC,CE compliance
| Hardware Features | ||
| Model | WG219 | |
| Antenna Type | IPEX connecter or PCB antenna | |
| Chipset solution | ESP8266 | |
| Voltage | 3.3V+/-10% | |
| Dimension(L×WxH) | 25.5mm*18.0mm*3.2mm | |
| 2.4GHz Wireless Features | ||
| Wireless Standards | IEEE 802.11 b/g/n | |
| Frequency Range | 2.412-2.484GHz | |
| Data Rates | IEEE 802.11a Standard Mode: 6,9,12,18,24,36,48,54Mbp | |
| IEEE 802.11 b Standard Mode: 1,2,5.5,11Mbps | ||
| IEEE 802.11g Standard Mode: 6,9,12,18,24,36,48,54Mbps | | |
IEEE 802.11n/Draft 2.0 Mode: 72.2Mbps @ HT20(MCS7) | ||
| 2.4GReceiver Sensitivity | HT20 MCS7 : -70dBm@10% PER(MCS7) | |
| OFDM 54M : -73dBm@10% PER | ||
| 54M: -77dBm@10% PER | ||
| CCK, 11M: -88dBm@ 8% PER | ||
| Wireless Security | Supports WEP64/128, WPA, WPA2, TKIP, WAPI, and AES
hardware encryption | |
| Transmit Power With ±2dBm tolerance | IEEE 802.11n: 13-16dBm @HT40 MCS7 | |
| IEEE 802.11g: 16dBm | ||
| IEEE 802.11b: 18dBm | ||
| Work Mode | Soft AP/ Station/Soft
AP+Station | |
| Others | ||
| Environment | Operating Temperature: -20℃~70℃ | |
| Storage Temperature: -40℃~125℃ | ||
| Operating Humidity: 10%~90% non-condensing | ||
| Storage Humidity: 5%~90% non-condensing | ||
Applications of TCP/UDP/HTTP/FTP WG219 IoT WLAN Module Industry Control esp8266 wifi module with i2c
IoT (internet of things)
Network Consumer Device
Metering
Building Automation
Home Automation
Smart Home Gateway
Smart Lighting
Smart Plugs and Lights
Baby Monitors
Mesh Network
Sensor Network
Industry Control

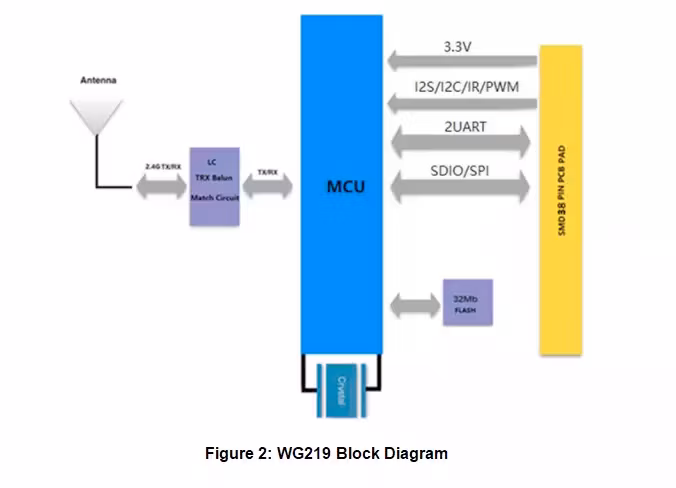

Application Block Diagram of TCP/UDP/HTTP/FTP WG219 IoT WLAN Module Industry Control esp8266 wifi module with i2c
