LILYGO® TTGO SIM7600E-H Module ESP32-WROVER-B Chip WiFi BLE 18560 Battery Holder Solar Charge Development Board

I lager.
Antal: 2

875 kr

Artikelnummer: 1052

T-SIM7600E-H is a wireless networking module with WIFI/Bluetooth/4G LTE CAT4. On this basis, we integrate a 18650 battery holder and add a solar charging interface.

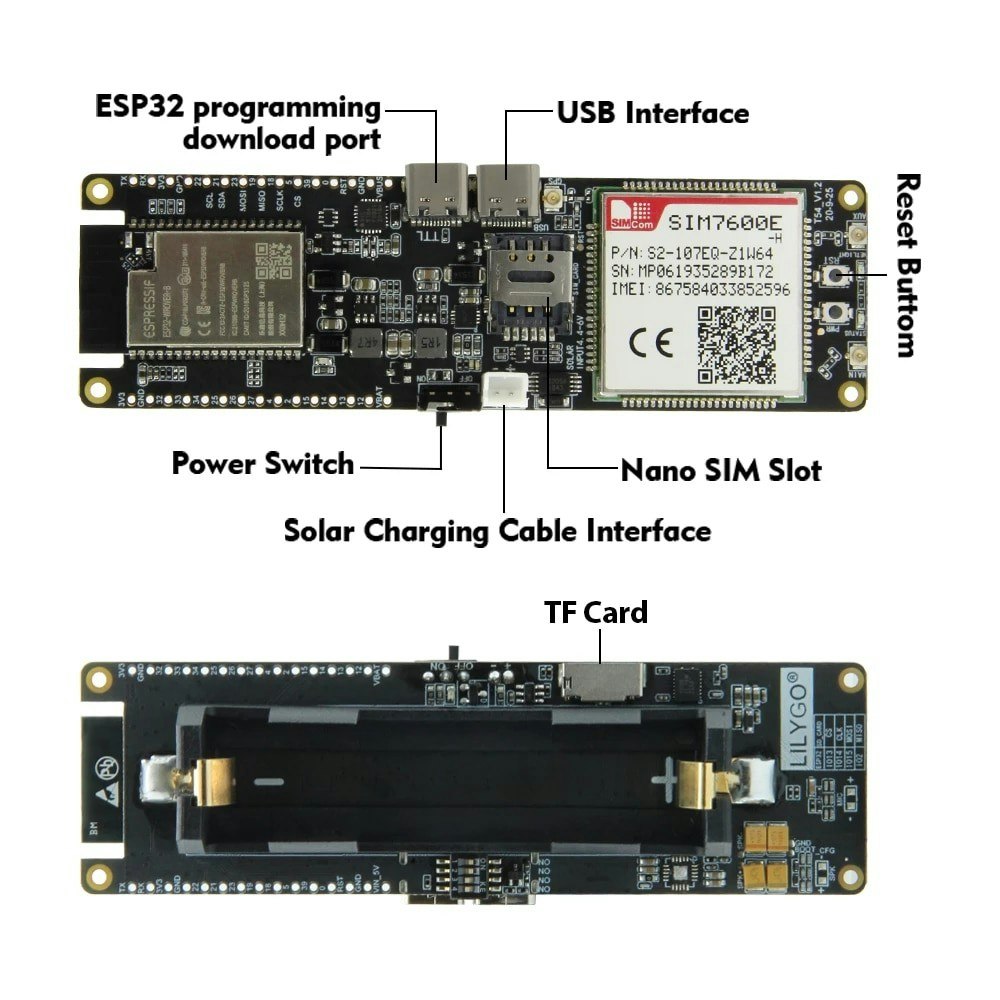

In order to facilitate the use of various application scenarios, two T-type-c interfaces are reserved on the development board, one is used to upload the program to the main control chip, and the other is the SIM7600E-H USB dongle industrial network card interface.

It can be connected to a computer via a USB cable and configured as a wireless network card.

Version update function:

1. The battery's positive and negative poles to avoid connected to the wrong protection, overcharge and over discharge protection

2. GPS power control, reduce power consumption, the lowest reaches 300uA when sleeping

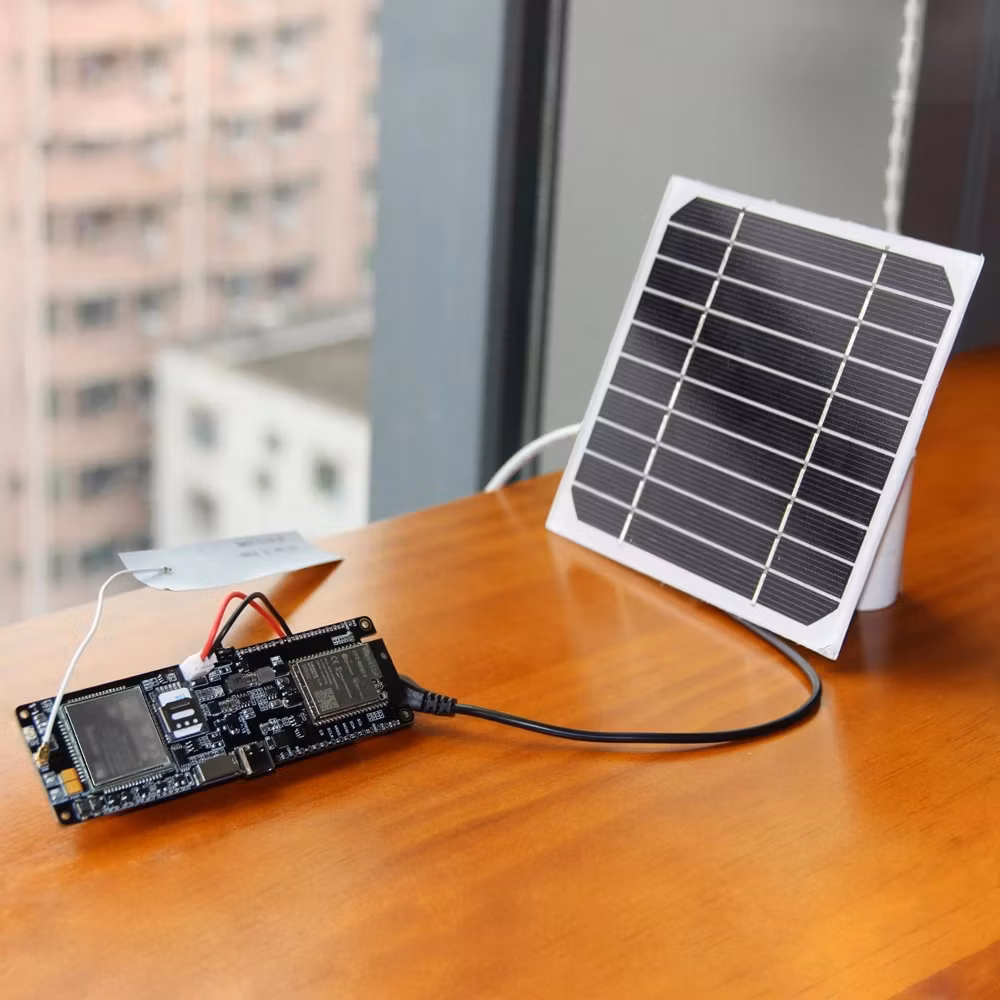

3. Replacement of ordinary charging IC with solar charging IC

Github Link:

https://github.com/Xinyuan-LilyGO/LilyGO-T-SIM7600X

Product Pin:









Product Size:






Product Detail:








The Link Of OLED:

https://www.aliexpress.com/item/32922106384.html

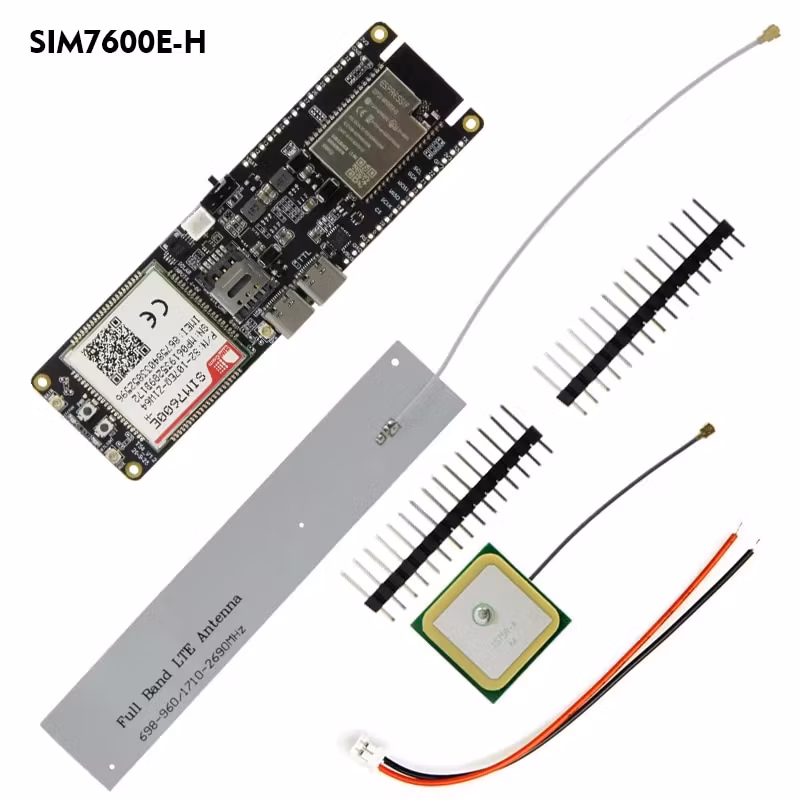

Shipping List:

T-SIM7600E-H:

1 X T-SIM7600E-H

1 X SIM antenna

1 X GPS antenna

1 X Power cable

2 X Pin






Shipping List:

SIM7600G-H 2R 9102:

1 X SIM7600G-H 2R 9102

1 X SIM antenna

1 X GPS antenna

1 X Power cable

2 X Pin
