Mabee MLX90640 thermal camera

  • 699 kr

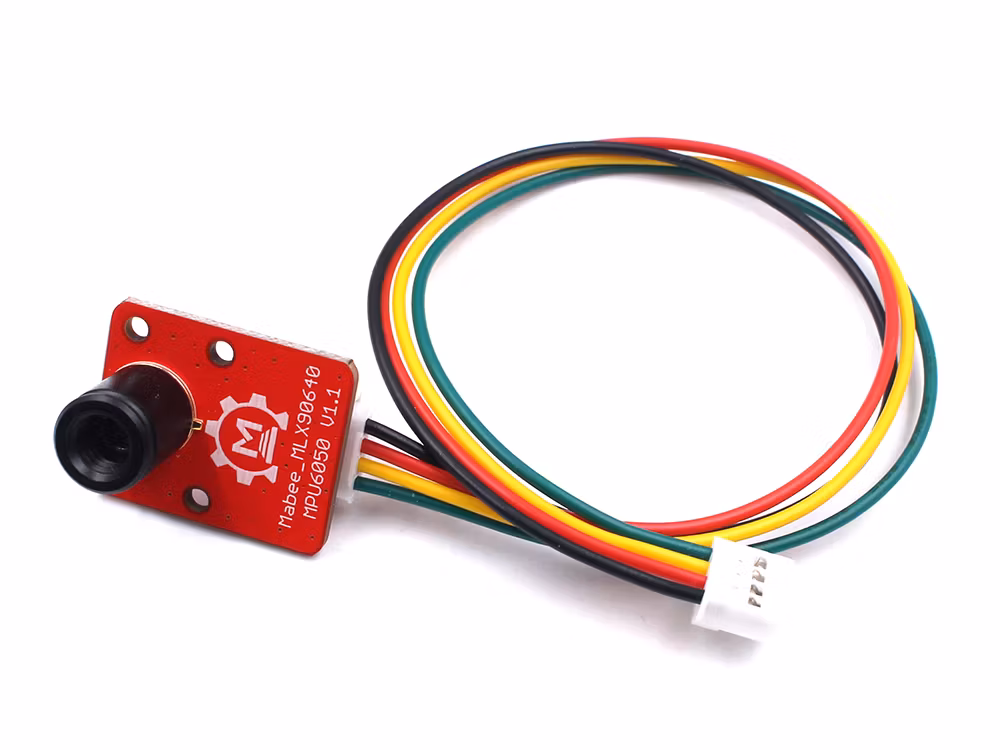

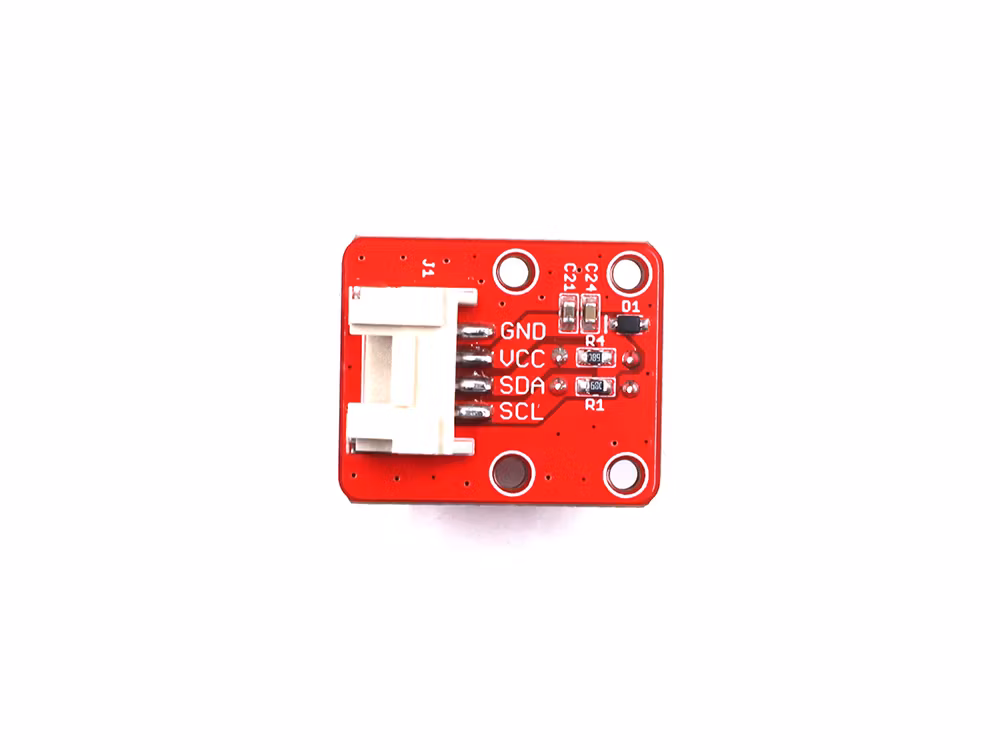

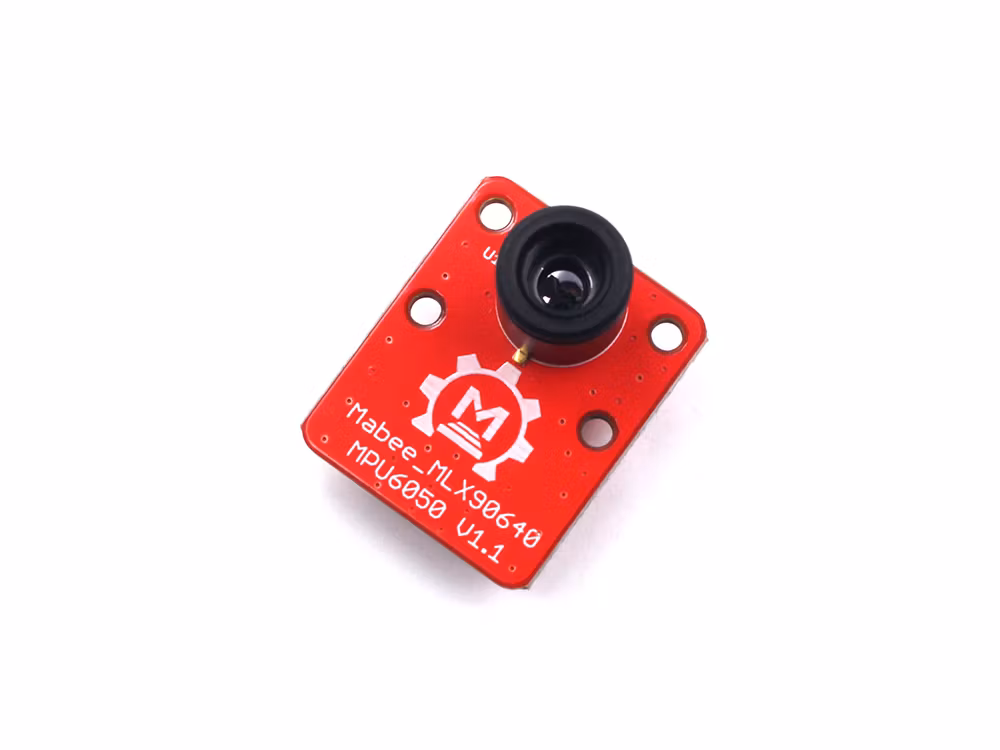

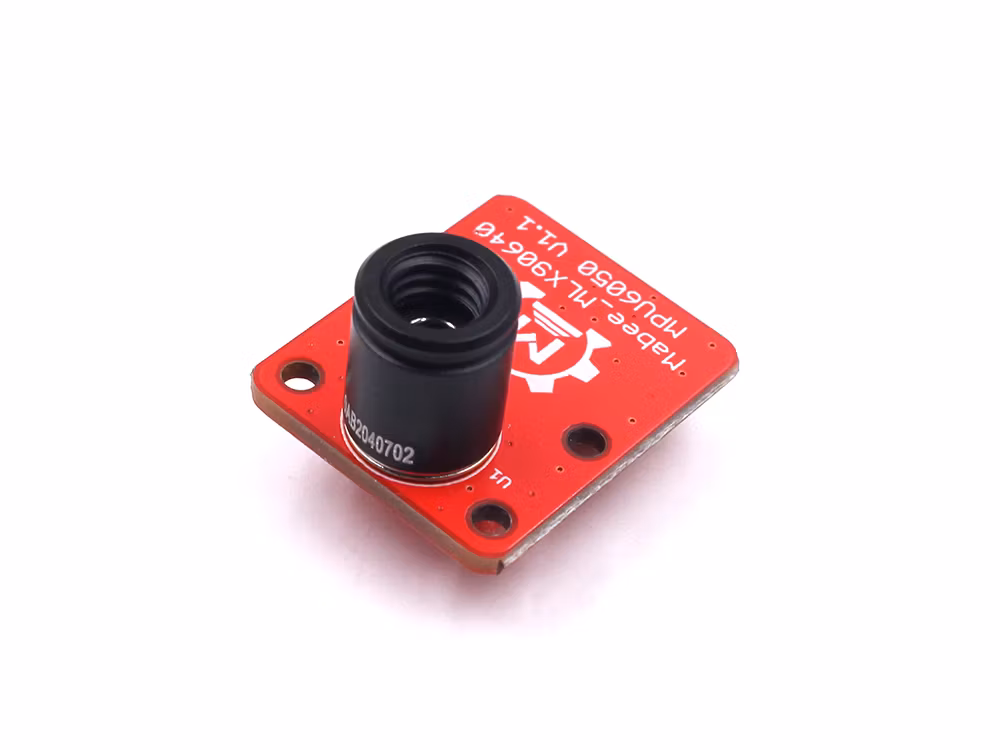

This thermal camera measures temperature and displays the thermal imaging figure. It is based on MLX90640, a 32x24 array thermal sensor (MLX90640), detects the

I lager.
Lagersaldo: 3
Artikelnummer: 1094
Dela

This thermal camera measures temperature and displays the thermal imaging figure. It is based on MLX90640, a 32x24 array thermal sensor (MLX90640), detects the temperature of objects from feet away with the accuracy of ±1.5℃.

The FOV(Field of View) of this camera is 55°x35°, and the temperature measurement range is -40℃~300℃. It communicates with the controller with the I2C interface.

Features:


  • IR Thermal Sensor Array 32X24(MLX90640)
  • 55°x35° FOV(field of view)
  • Temperature measurement range:-40℃~300℃
  • I2C Grove interface
  • Voltage: 3.3v
  • Current Consumption: 18mA
  • FOV: 55°x35°
  • Temperature Resolution: ±1.5°C
  • Interface: I2C(0x33)
