Jetson Nano Developer Kit with Camera, TF Card

  • 1 999 kr

 1 999 kr NVIDIA Jetson Nano möjliggör utvecklingen av miljontals nya små AI-system med låg effekt. Det öppnar nya världar av inbyggda IoT-applikation

Produkten är tyvärr slut i lager. :(

Artikelnummer: SKUjet340

 1 999 kr

NVIDIA Jetson Nano möjliggör utvecklingen av miljontals nya små AI-system med låg effekt. Det öppnar nya världar av inbyggda IoT-applikationer, inklusive nätverksvideooptagare på nätverksnivå (NVR), hemrobotar och intelligenta gateways med fullständiga analysfunktioner.

Besides NVIDIA Jetson Nano Developer Kit official content, the Jetson Nano Developer Kit Package also includes IMX219-77 camera board, SanDisk 64GB class 10 TF card along with a card reader, and the power adapter. This pack is the ideal choice for image recognition.

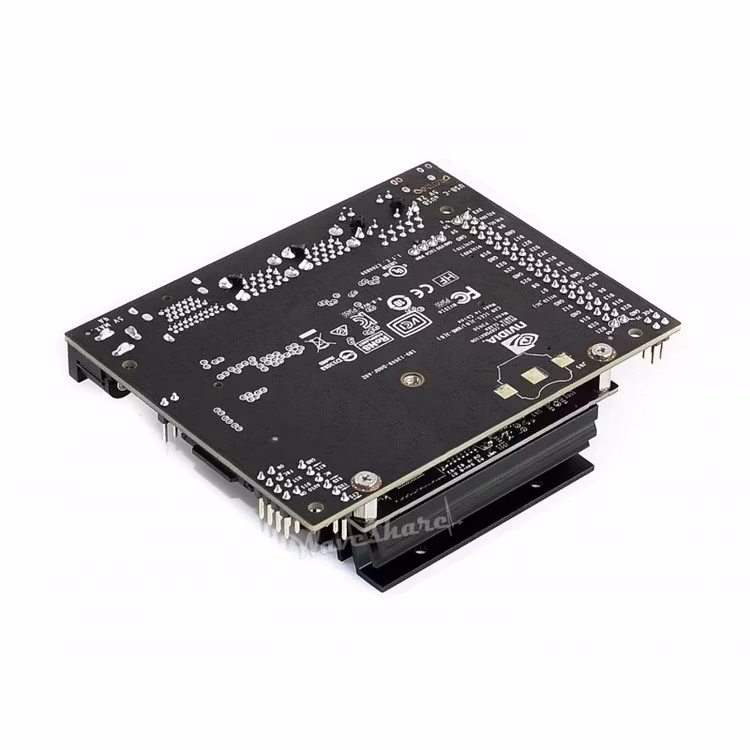

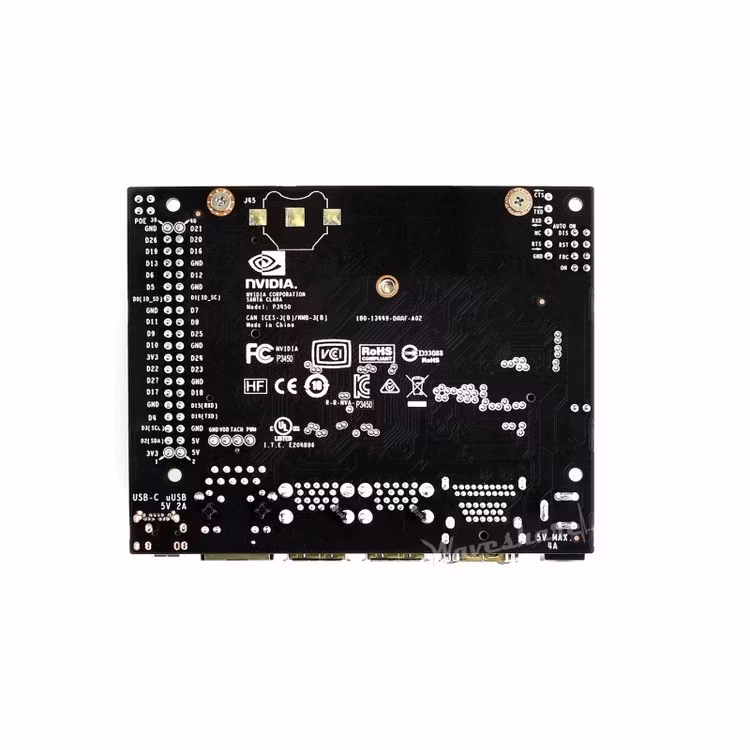

NVIDIA Jetson Nano Developer Kit, a small, powerful computer for AI development.

NVIDIA Jetson Nano Developer Kit is a small, powerful computer that lets you run multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing. All in an easy-to-use platform that runs in as little as 5 watts.

Jetson Nano delivers 472 GFLOPS for running modern AI algorithms fast, with a quad-core 64-bit ARM CPU, a 128-core integrated NVIDIA GPU, as well as 4GB LPDDR4 memory. It runs multiple neural networks in parallel and processes several high-resolution sensors simultaneously.

Jetson Nano is also supported by NVIDIA JetPack, which includes a board support package (BSP), CUDA, cuDNN, and TensorRT software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. The SDK also includes the ability to natively install popular open source Machine Learning (ML) frameworks such as TensorFlow, PyTorch, Caffe / Caffe2, Keras, and MXNet, enables the developers to integrate their favourite AI model / AI framework into products fast and easily.

Jetson Nano Developer Kit Specifications

  • GPU: 128-core Maxwell™ GPU
  • CPU: quad-core ARM® Cortex®-A57 CPU
  • Memory: 4GB 64-bit LPDDR4
  • Storage: Micro SD card slot (requires an external minimum 16G TF card)
  • Video:
    • Encode: 4K @ 30 (H.264/H.265)
    • Decode: 4K @ 60 (H.264/H.265)
  • Interfaces:
    • Ethernet: 10/100/1000BASE-T self-negotiation
    • Camera: 12-ch (3x4 OR 4x2) MIPI CSI-2 DPHY 1.1 (1.5Gbps)
    • Display: HDMI 2.0, DP (DisplayPort)
    • USB: 4x USB 3.0, USB 2.0 (Micro USB)
    • Others: GPIO, I2C, I2S, SPI, UART
  • Power:
    • Micro USB (5V 2A)
    • DC jack (5V 4A)
  • Dimensions:
    • Core module: 69.6 mm × 45 mm
    • Whole kit: 100mm × 80mm × 29mm

IMX219-77 Camera Features

  • Supports NVIDIA Jetson Nano Developer Kit
  • 8 Megapixels
  • Sensor: Sony IMX219
  • Resolution: 3280 × 2464
  • Lens specifications:
    • CMOS size: 1/4inch
    • Aperture (F): 2.0
    • Focal Length: 2.96mm
    • Angle of View (diagonal): 77 degree
    • Distortion: < 1%
    • Lens dimensions: 6.5mm × 6.5mm
  • 4 screw holes
    • Used for attachment
    • Provides 3.3V power output
  • Dimension: 25mm × 24mm

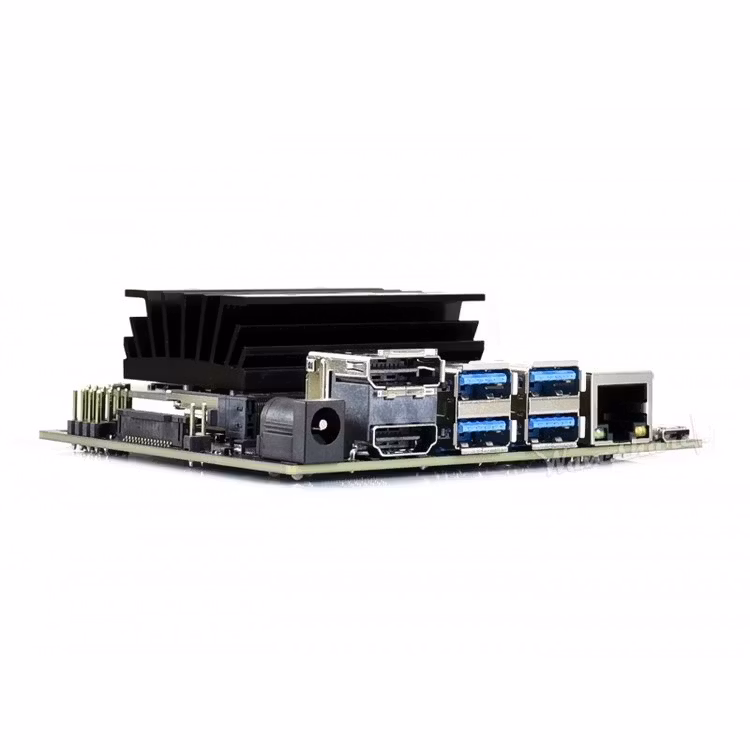

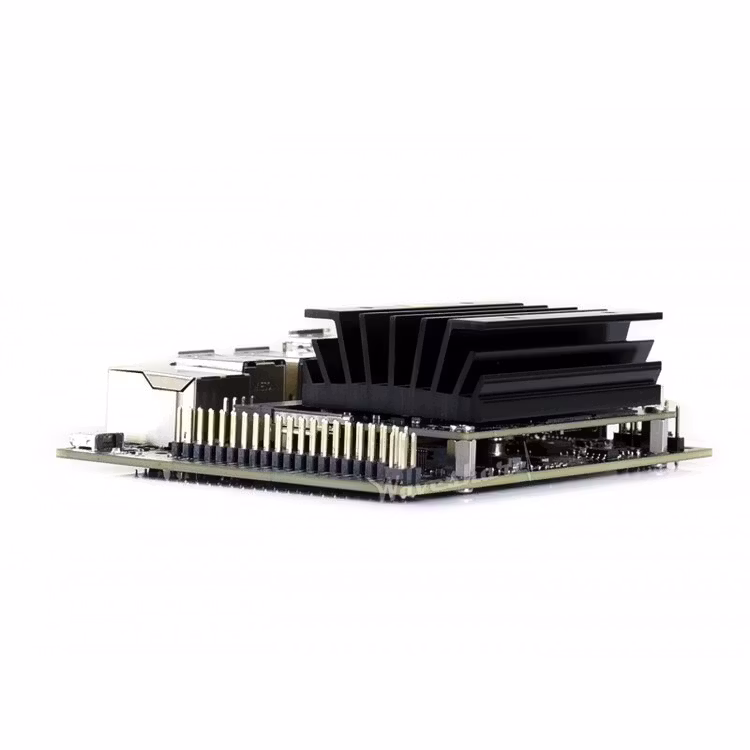

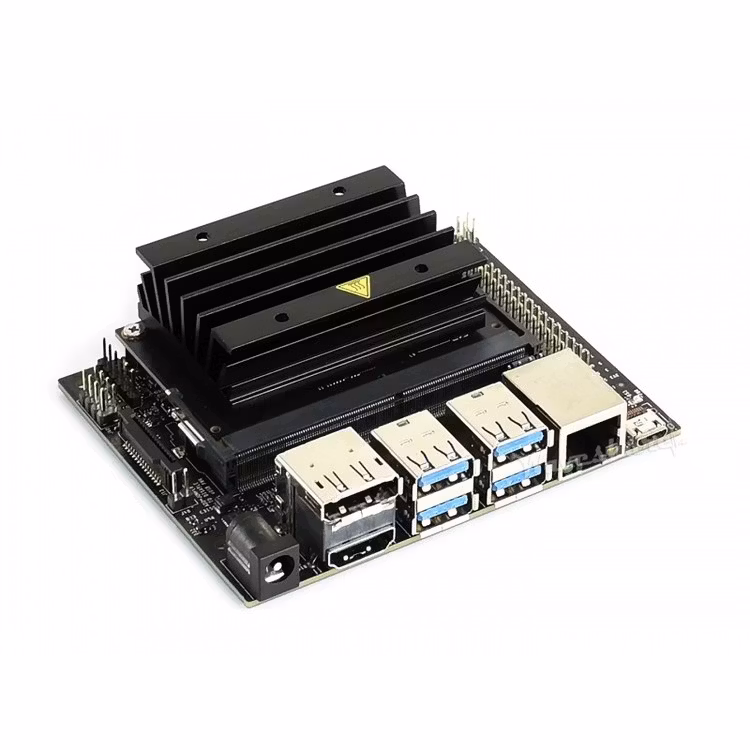

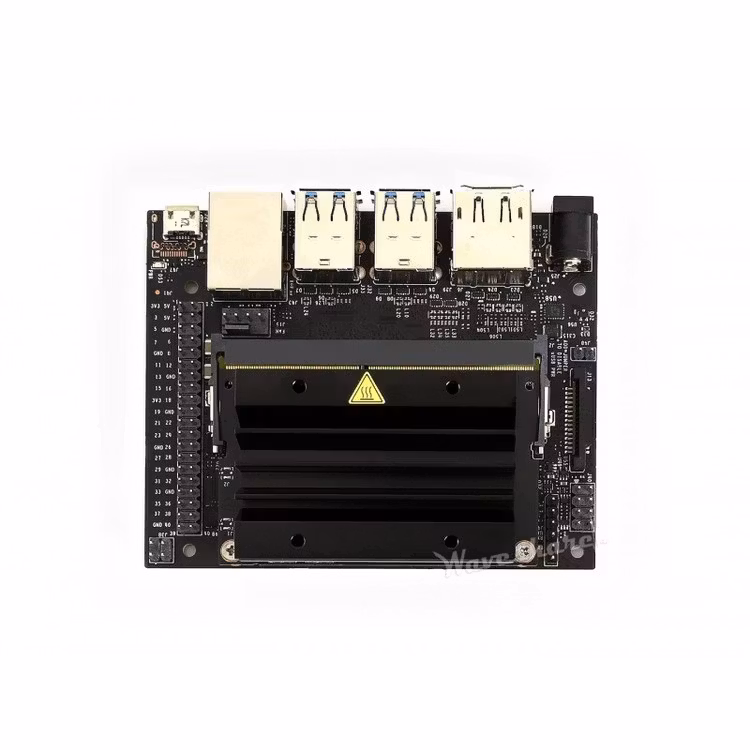

What's on Jetson Nano Developer Kit

  1. Micro SD card slot: insert a 16GB or larger TF card for main storage and writing system image
  2. 40-pin expansion header
  3. Micro USB port: for 5V power input or for USB data transmission
  4. Gigabit Ethernet port: 10/100/1000Base-T self-negotiation
  5. 4x USB 3.0 port
  6. HDMI output port
  7. DisplayPort connector
  8. DC jack: for 5V power input
  9. MIPI CSI camera connector:

Development Resources

Wiki :


Development Kit User Guide


Technical Blog

NVIDIA Jetson™ family for products

Grove Python Libraries for Nvidia Jetson Nano

Shipping include

  • Jetson Nano Developer Kit x1
  • IMX219-77 Camera x1
  • Micro SD Card 64GB x1
  • Power adapter EU standard USB output x1
  • SD card reader x1
  • 15-pin FFC (opposite sides contact) x1
