PoE Ethernet / USB HUB HAT for Raspberry Pi Zero, 1x RJ45, 3x USB

I lager.
Antal: 3

349 kr

Artikelnummer: 995

PoE Ethernet / USB HUB HAT For Raspberry Pi Zero, 3x USB 2.0 Ports, 802.3af-Compliant.

Suitable For Raspberry Pi Zero / Zero W / Zero WH, 802.3af-Compliant

Features At A Glance

The PoE/ETH/USB HUB HAT is a PoE (Power over Ethernet) USB HUB HAT designed for Raspberry Pi Zero. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with 3x extended USB ports.

  • Designed for Raspberry Pi Zero, compatible with Zero series boards
  • Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
  • PoE (Power over Ethernet) feature, 802.3af-compliant
  • Fully isolated SMPS (Switch Mode Power Supply)
  • 3x extended USB ports, compatible with USB 2.0 / 1.1

Specifications

POE POWER INPUT37V ~ 57V DC in
POWER OUTPUT5V 2.5A DC out
NETWORK STANDARDIEEE 802.3af-compliant PoE
DIMENSIONS23.10 × 65.00 mm

Compatible With Raspberry Pi Zero Series

Designed For Raspberry Pi Zero, Compatible With Zero / Zero W / Zero WH

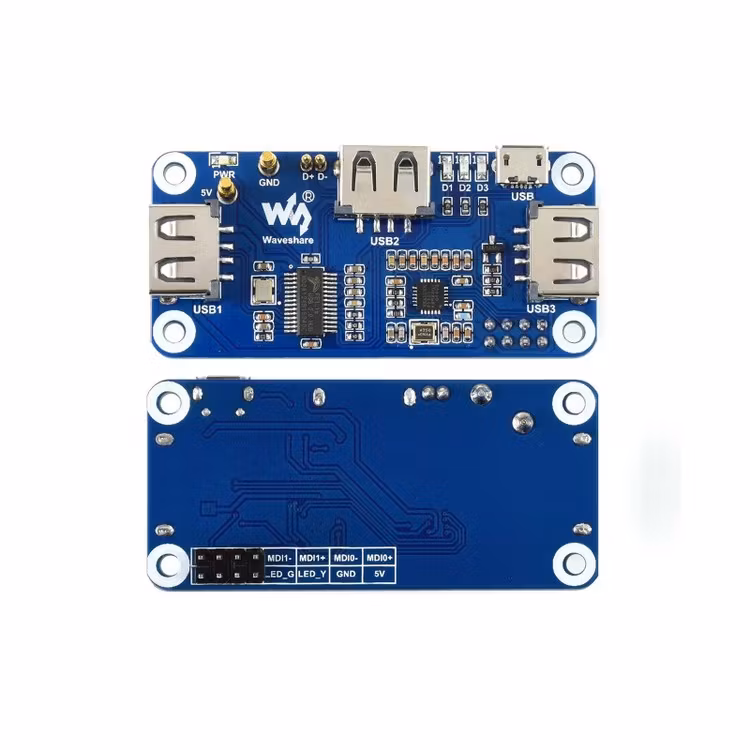

3x Extended USB 2.0 Ports

USB1 ~ USB3, Compatible With USB 2.0 / 1.1

Extended Ethernet Port

USB To Ethernet Conversion By The RTL8152B Chip, 10M / 100M Auto-Negotiation

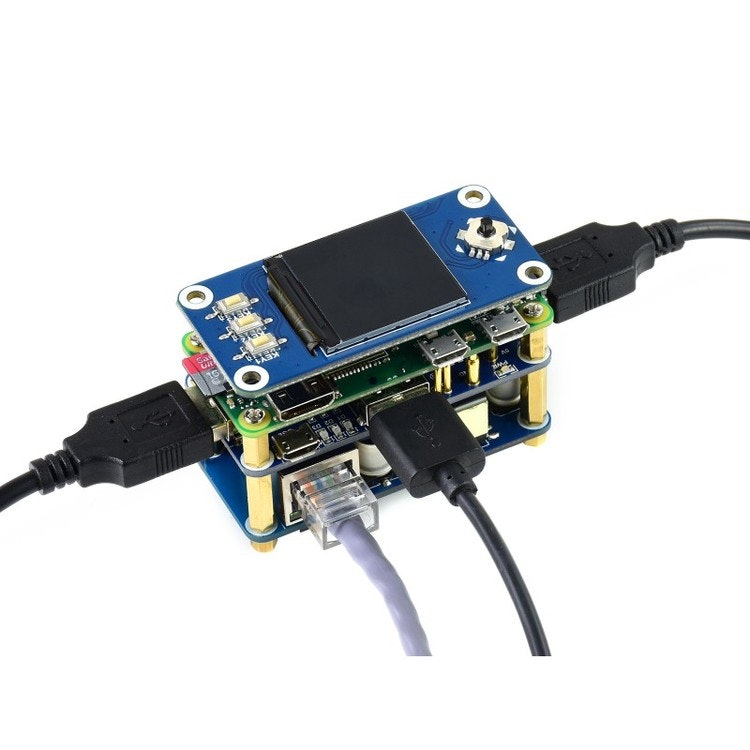

Application Example

For reference ONLY, the Raspberry Pi Zero, LCD display, and MicroSD card are NOT included.

Outline Dimensions

Resources & Services

Wiki: PoE/ETH/USB_HUB_HAT

Shipping list

Weight: 0.063 kg

  1. PoE/ETH/USB HUB HAT x1
  2. USB HUB Board x1
  3. Screws pack x1
  4. Screwdriver x1
