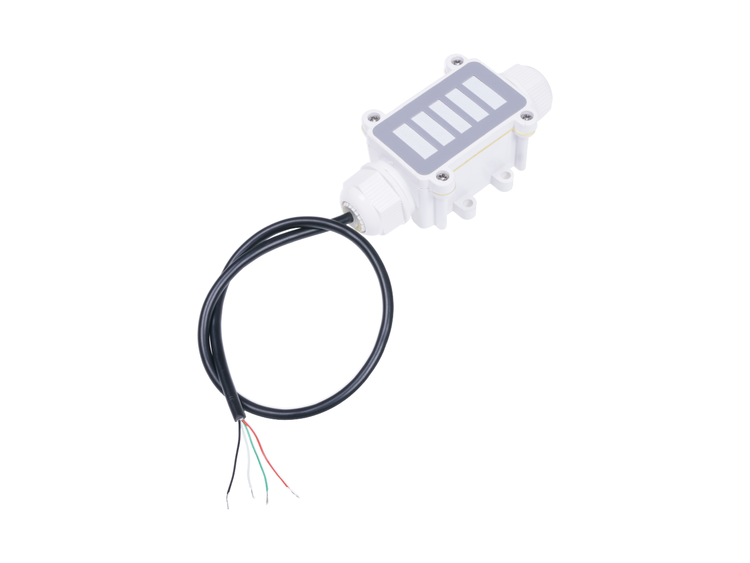

NDIR CO2 Sensor with UART, I2C, & PTFE Filter (S-CO2-01A)

I lager.

1 399 kr

Artikelnummer: 792

Preorder

Estimated Availability Date: Jul 30, 2020

This digital NDIR CO2 sensor comes with UART and I2C interfaces, built-in calibration functionality, and compact in size, making it widely applicable in greenhouses, poultry farms, transportation stations, and other application scenarios where CO2 level is needed.

Features

  • High performance: high accuracy, fast response, and superior stability

  • Sensirion NDIR SCD30 Sensor: compact size, best performance-to-price ratio

  • User-friendly: fully-calibrated, easy to install and integrate

  • Wide-range Power Supply: 5V ~ 16V

  • Wide Range & High Accuracy: 400ppm ~ 10,000 ppm, ±(30 ppm + 3%MV)

CO2 has a large impact on us, human activities, plants, and animals, basically everything on this planet. In agriculture, CO2 is vital for photosynthesis, and increases in CO2 concentration could be beneficial to certain crops such as wheat, rice, and soya beans, etc. [Source: Climate Change and World Agriculture] Whereas, a high CO2 level may cause asphyxiation to human and animals. The CO2 emissions trapped in the atmosphere is the main cause of global warming. CO2 also causes the ocean to become acid, which causes harm to life in the ocean. Hence, getting access to the data on the CO2 level is important. With the data available, we will know what actions to take in different circumstances.
This CO2 Sensor is a digital NDIR (nondispersive infrared) sensor based on the Sensirion SCD30 sensor module, which enables the highest accuracy in the measurement of CO2 level in the atmosphere continuously and accurately for long-term use. It's designed with a built-in calibration functionality, making it more accurate and reliable in measurement. We've also added a specially-designed PTFE filter which allows airflow and ensures fast response. It comes with UART and I2C interfaces, compact in size, can be easily integrated into various application scenarios.

This product also has two other sensors (humidity and temperature) on board. Please see the detailed specifications of each parameter below.

Specifications

CO2
ParametersConditionsValue
Measurement Range-0 to 40,000 ppm
Accuracy400 to 10,000ppm± (30 ppm + 3 %MV)
Repeatability400 to 10,000ppm±10 ppm
Temperature StabilityT = 0 ... 50°C,
400 ppm
– 10’000 ppm
±2.5 ppm/℃
Response Time
τ63%
20s
Accuracy Drift over Lifetime
400 ppm – 10’000 ppm
± 50ppm
Humidity
ParametersConditionsValue
Measurement Range-0 %RH  100 %RH
Accuracy25°C, 0  100 %RH
±3%RH
Repeatability-± 0.1 %RH
Response Time τ63%
8s
Accuracy Drift
-< 0.25 %RH / year
Temperature
ParametersConditionsValue
Measurement Range-- 40°C  70°C
Accuracy050°C
± (0.4°C + 0.023 × (T [°C] – 25°C))
Repeatability-± 0.1°C
Response Time τ63%
> 10s
Accuracy Drift
-< 0.03 °C / year

Applications

  • Smart Agriculture /Precision Farming

  • Greenhouse Management

  • Smart Cities

  • Smart Weather Station

  • Transportation Stations

  • Other Environmental Monitoring Applications

Wiring Diagram

Probe Dimensions

ECCN/HTS

HSCODE9027100090
UPC

LEARN AND DOCUMENTS

Documentations

Datasheet of Sensirion SCD30 CO2 Sensor

Interface Description of Sensirion SCD30 CO2 Sensor
