Raspberry Pi Compute Module 4 - 8GB RAM, 32GB eMMC, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0

I lager.
Antal: 2

1 449 kr

Artikelnummer: 1048

New product

This version of the Raspberry Pi Compute Module 4 includes a high-performance 64-bit quad-core processor, 8GB LPDDR4 RAM, 32GB eMMC, dual-display support at resolutions up to 4K, hardware video decode at up to 4Kp60, Gigabit Ethernet, USB 2.0, dual camera interfaces, PCIe Gen 2 x1 interface, and dual-band 2.4/5.0GHz wireless LAN and Bluetooth 5.0.



Features

  • High-performance 64-bit quad-core processor
  • Dual display support at resolutions up to 4K
  • Hardware video decode at up to 4Kp60
  • Dual camera interfaces
  • PCIe Gen 2 x1 interface

Description

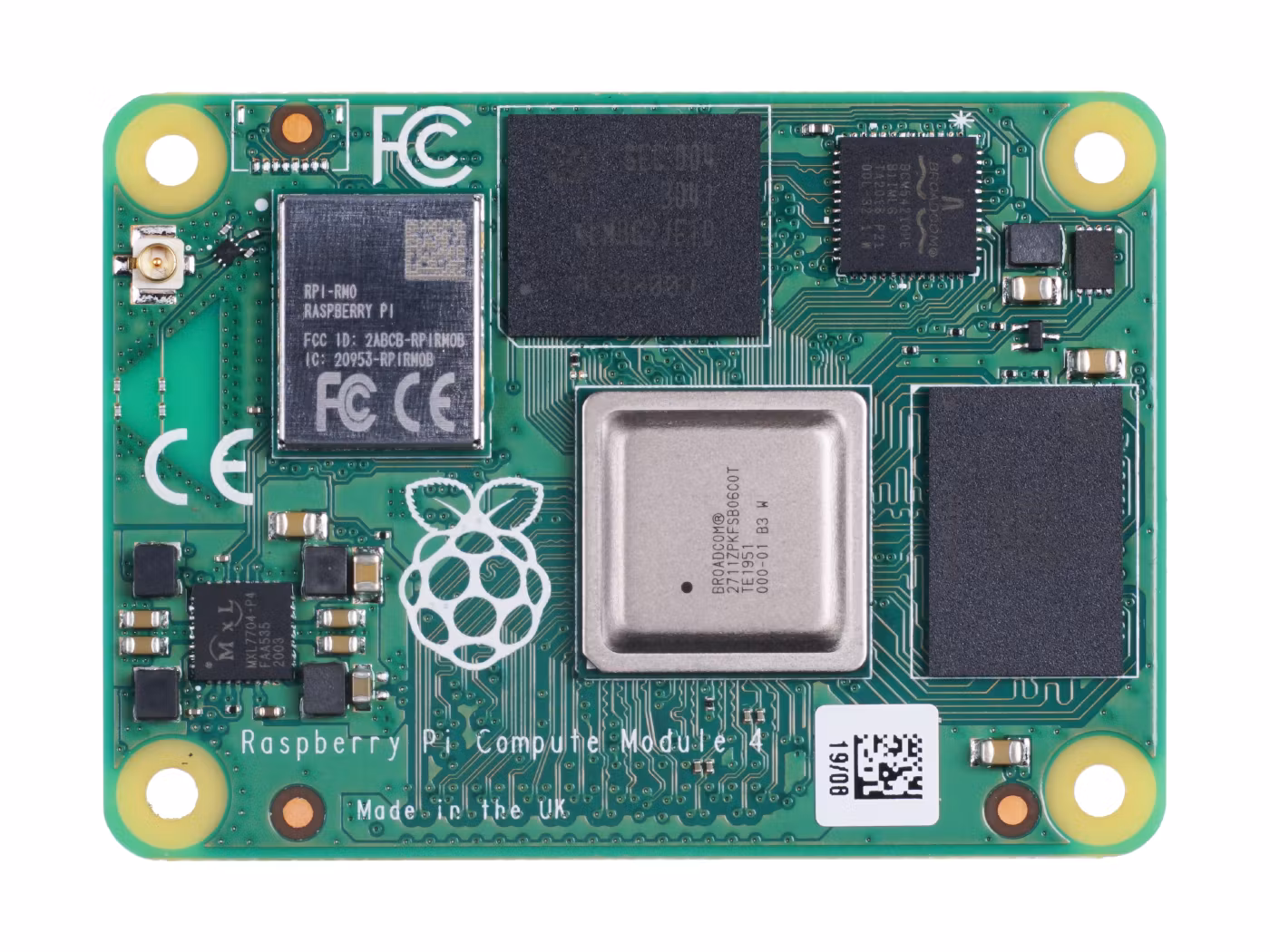

Raspberry Pi Compute Module 4 harnesses the computing power of the popular Raspberry Pi 4 Model B, bringing it to a smaller form factor suitable for integration into products.

This version of the Raspberry Pi Compute Module 4 includes a high-performance 64-bit quad-core processor, 8GB LPDDR4 RAM, 32GB eMMC, dual-display support at resolutions up to 4K, hardware video decode at up to 4Kp60, Gigabit Ethernet, USB 2.0, dual camera interfaces, PCIe Gen 2 x1 interface, and dual-band 2.4/5.0GHz wireless LAN and Bluetooth 5.0.

The dual-band 2.4/5.0GHz wireless LAN and Bluetooth 5.0 have modular compliance certification. This allows the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market. Either the onboard antenna or an external antenna kit can be used.

Specifications

SpecificationDetails
ProcessorBroadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Memory8GB LPDDR4
Storage32GB eMMC
ConnectivityOptional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options

Onboard Gigabit Ethernet PHY supporting IEEE1588

1 × USB 2.0 interface

PCIe Gen 2 x1 interface

28 GPIO signals

SD card interface for SD card or external eMMC
VideoDual HDMI interface (up to 4Kp60 supported)

2-lane MIPI DSI display interface

2-lane MIPI CSI camera interface

4-lane MIPI DSI display interface

4-lane MIPI CSI camera interface
MultimediaH.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
Input power5V DC
Operating temperature0 to +80°C
Dimensions55 mm × 40 mm
Production lifetimeRaspberry Pi Compute Module 4 will remain in production until at least January 2028
ComplianceFor a full list of local and regional product approvals, please visit:
www.raspberrypi.org/documentation/hardware/raspberrypi/conformity.md

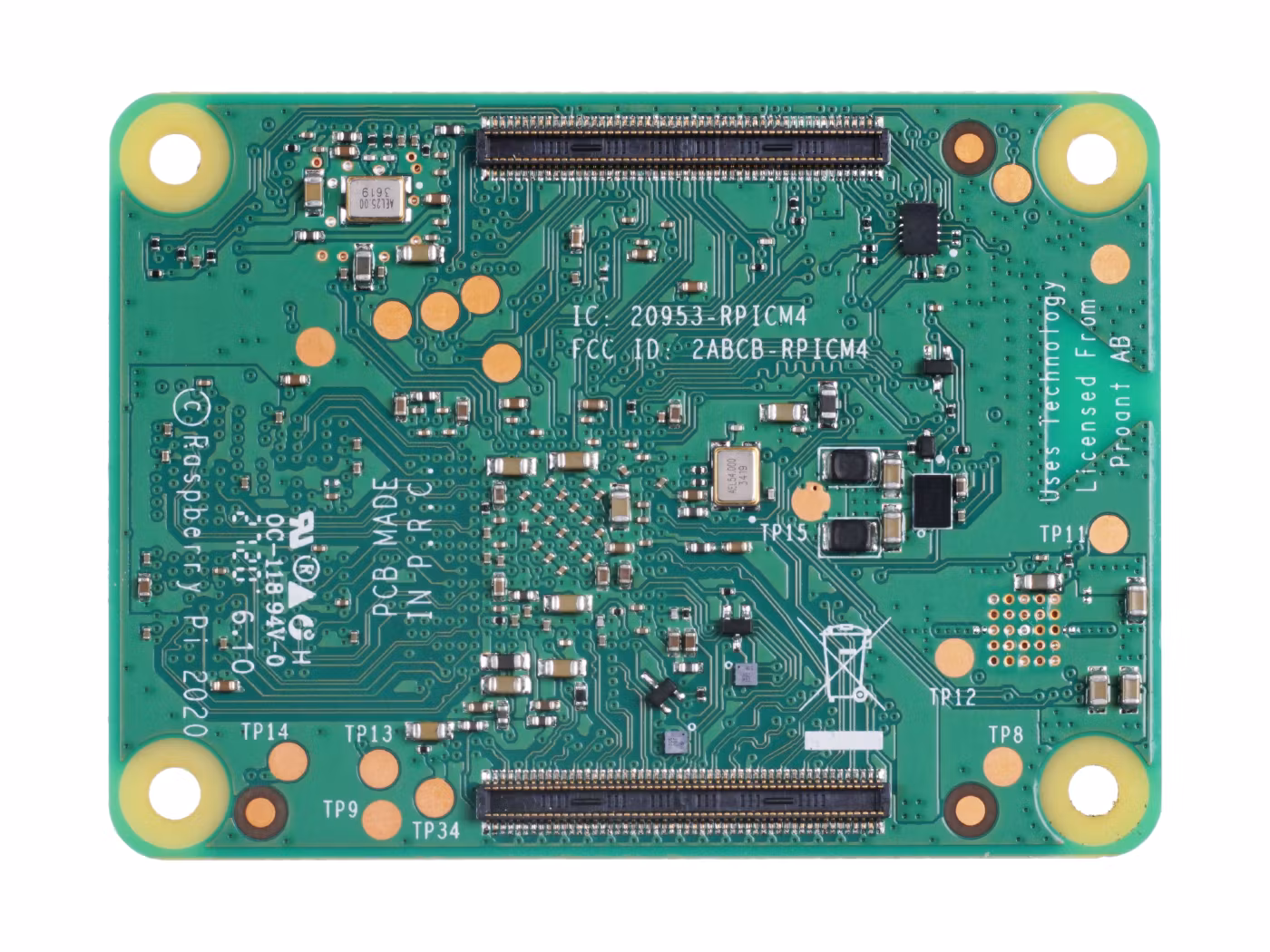

Hardware Overview

Dimensions

Note

  • 4 x M2.5 holes in corners
  • All dimensions are in mm

Part List

1 x Raspberry Pi Compute Module 4 - 8GB RAM, 32GB eMMC, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0

ECCN/HTS

HSCODE8473309000
UPC

LEARN AND DOCUMENTS

Documentations

Raspberry Pi Compute Module 4 product brief

Raspberry Pi Compute Module 4 datasheet

Compute Module 4 STEP file
