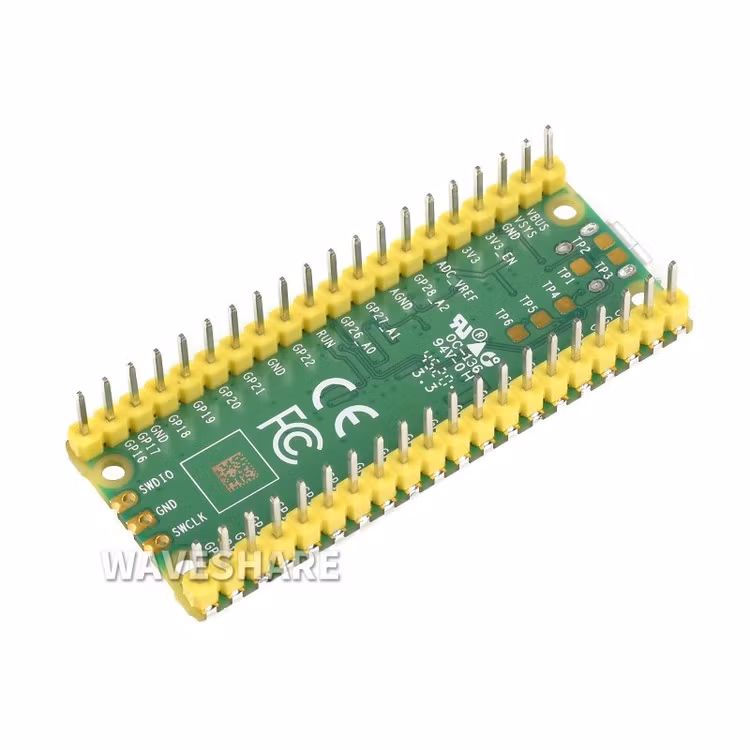

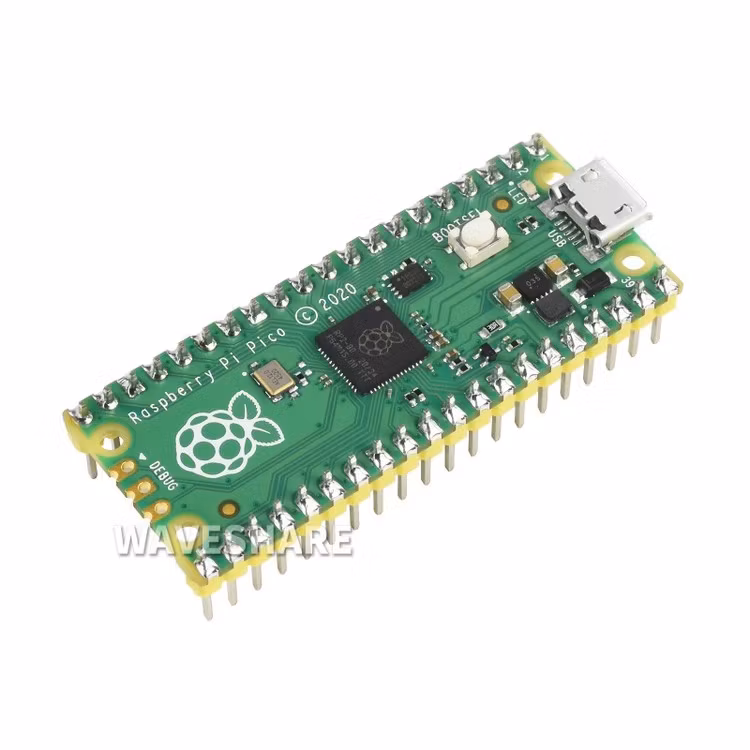

Raspberry Pi Pico with pre-soldered header kit

I lager.
Antal: 10

225 kr

Artikelnummer: 973

Raspberry Pi Pico, A Low-Cost, High-Performance Microcontroller Board With Flexible Digital Interfaces



a tiny, fast, and versatile microcontroller board

Built Using RP2040 Microcontroller Chip Designed By Raspberry Pi

Board Specifications

Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces. It incorporates Raspberry Pi's own RP2040 microcontroller chip, with dual-core Arm Cortex M0+ processor running up to 133 MHz, embedded 264KB of SRAM and 2MB of on-board Flash memory, as well as 26x multi-function GPIO pins.

For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available. There're also complete development resources and tutorials to help you get started easily, and integrate it into end products quickly.

Key features include:

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of on-board Flash memory
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 26 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

C/C++,MicroPython Support

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Dual-Core Arm Processor

Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

26 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

Outline Dimensions

Resources & Services

Wiki: Raspberry_Pi_Pico, Raspberry-Pi-Pico-Sensor-Kit

Shipping list

Raspberry-Pi-Pico-M

  1. Raspberry Pi Pico with pre-soldered header x1
  2. 1*3PIN yellow pin header x1
  3. USB-A to micro-B cable x1

Raspberry-Pi-Pico-M
