RGB Full-Color LED Matrix Panel, 64×32 Pixels, Adjustable Brightness

  • 449 kr

RGB Full-Color LED Matrix Panel, 64×32 Pixels, Adjustable Brightness64×32 RGB LED Matrix Panel2048 Individual RGB LEDs, 3mm PitchSupports Raspberry Pi, Pi Pico,

I lager.
Lagersaldo: 3
Artikelnummer: 20117
Dela
  • Information

RGB Full-Color LED Matrix Panel, 64×32 Pixels, Adjustable Brightness

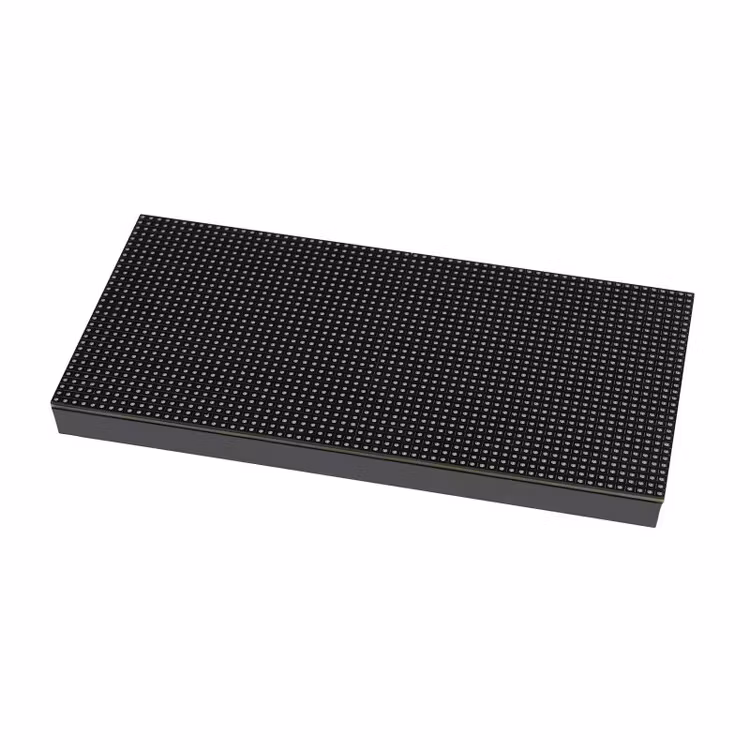

64×32 RGB LED Matrix Panel

2048 Individual RGB LEDs, 3mm Pitch

Supports Raspberry Pi, Pi Pico, ESP32, Arduino...



Features At A Glance

Maybe be on the wall of tall buildings, maybe on corners of unknown streets, you can always see the dazzling neon light, everywhere in the noisy yet energetic city. Sometimes, looking at these shining screens, you may want to make a unique one, and give it to the beautiful night as a gift. Now, this 64×32 RGB LED matrix panel will be the start to make your wish come true.

  • 2048 individual RGB LEDs, full-color display, adjustable brightness

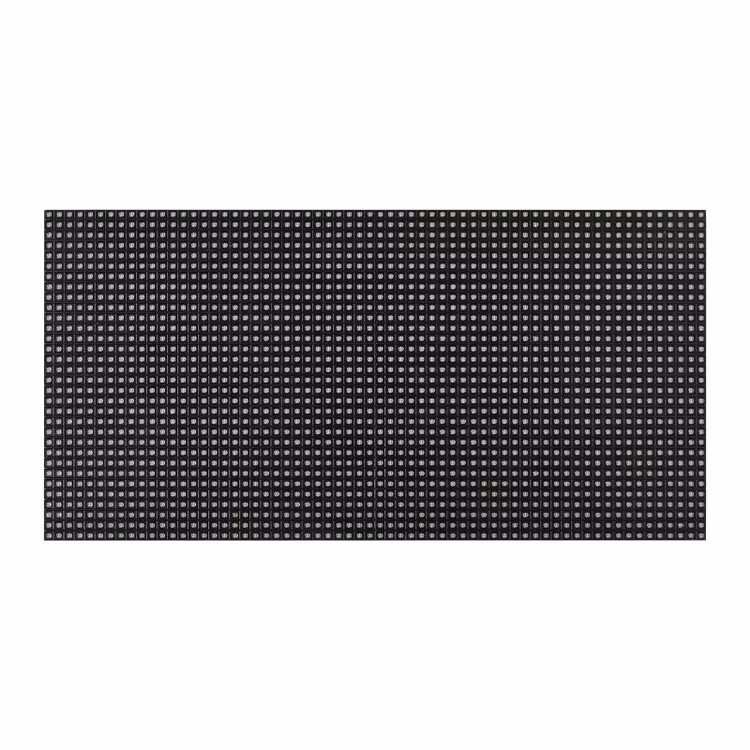

  • 64×32 pixels, 3mm pitch, allows displaying text, colorful image, or animation
  • 192×96mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

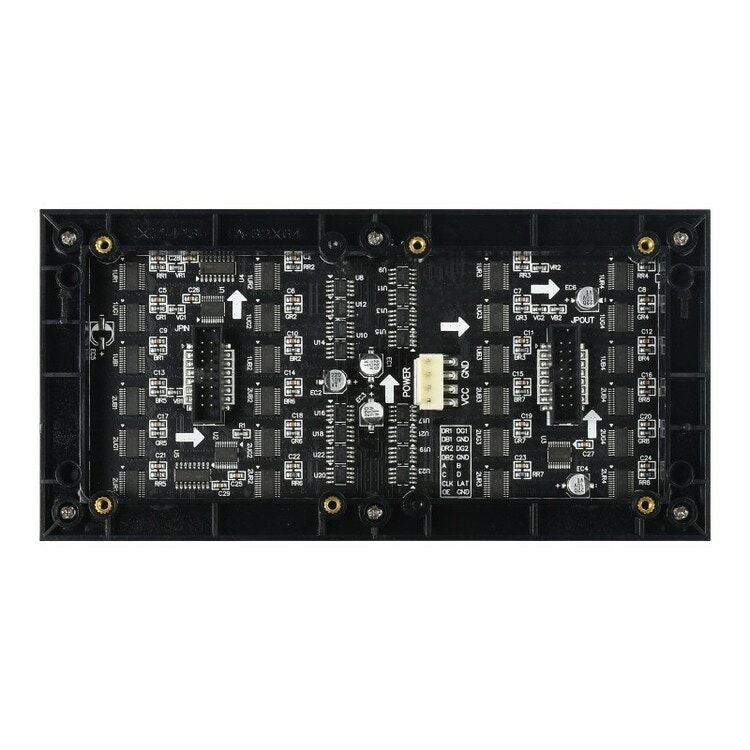

  • Onboard two HUB75 header, one for controller data input, one for output, chain support
  • Provides open source development resources and tutorials, for use with Raspberry Pi, Pico, ESP32, Arduino, and so on

Specifications

DIMENSIONS192mm × 96mm
PIXELS64×32=2048 DOTS
PITCH3mm
PIXEL FORM1R1G1B
VIEWING ANGLE≥160°
CONTROL TYPEsynchronization
DRIVING1/16 scan
HEADERHUB75
POWER SUPPLY5V / 2.5A (VH4 header input)
POWER≤12W

Header Definition

PINDESCRIPTIONPINDESCRIPTION
VCC5V power inputGNDGround
R1R higher bit dataR2R lower bit data
G1G higher bit dataG2G lower bit data
B1B higher bit dataB2B lower bit data
AA line selectionBB line selection
CC line selectionDD line selection
EE line selectionCLKclock input
LAT/STBlatch pinOEoutput enable

Chainable Design

Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header

Each RGB LED matrix panel requires a standalone 5V/2.5A or above power supply, when their're chianed to display.

Usage Scenarios

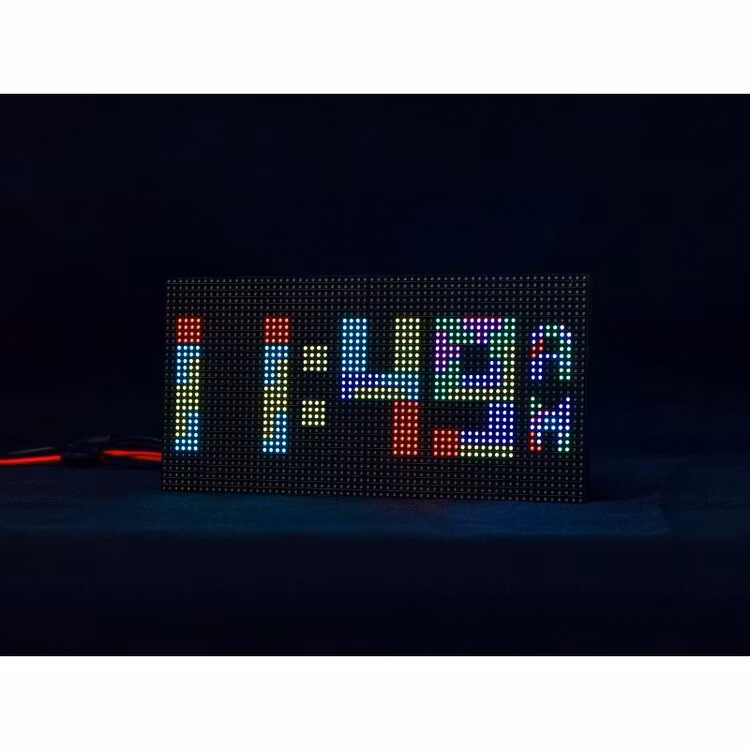

DIY Maker Desktop Or Wall Mount Display, Signboard, Environment Monitor...

Dimensions

Resources & Services

WIKI: RGB-Matrix-P3-64x32

Shipping list

Weight: 0.248 kg

  1. RGB-Matrix-P3-64x32 LED matrix and accessories x1
  2. Dark brown acrylic front panel x1
  3. Double-sided tape x1
  4. Magnetic bolt 4pcs x1
