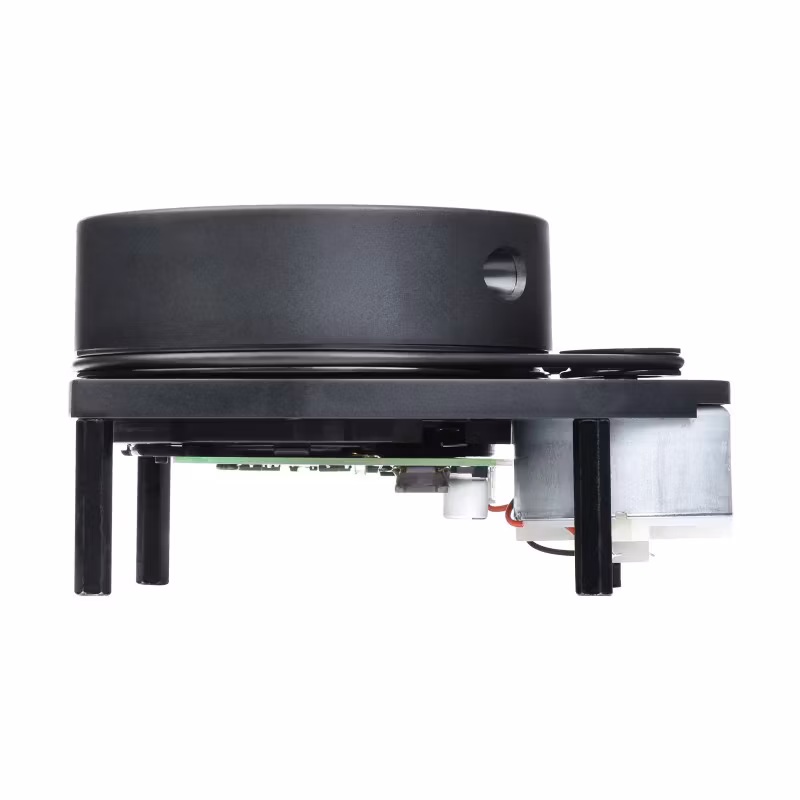

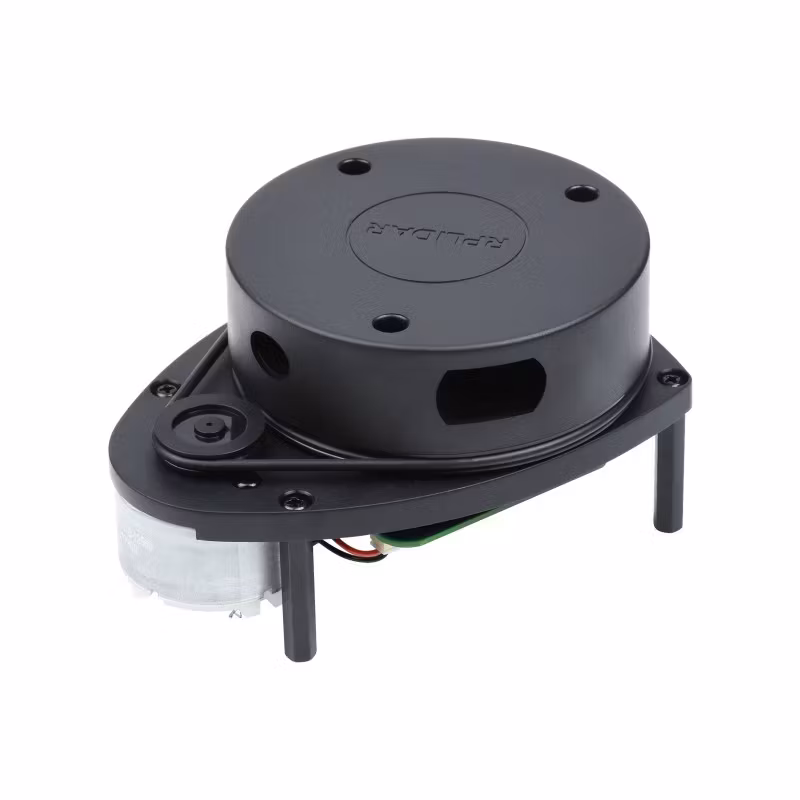

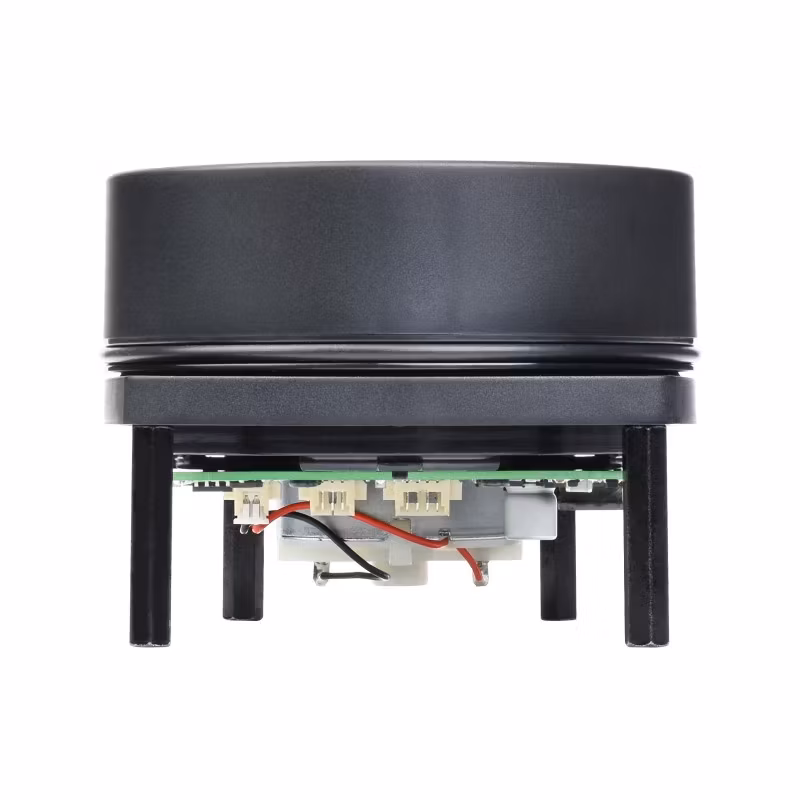

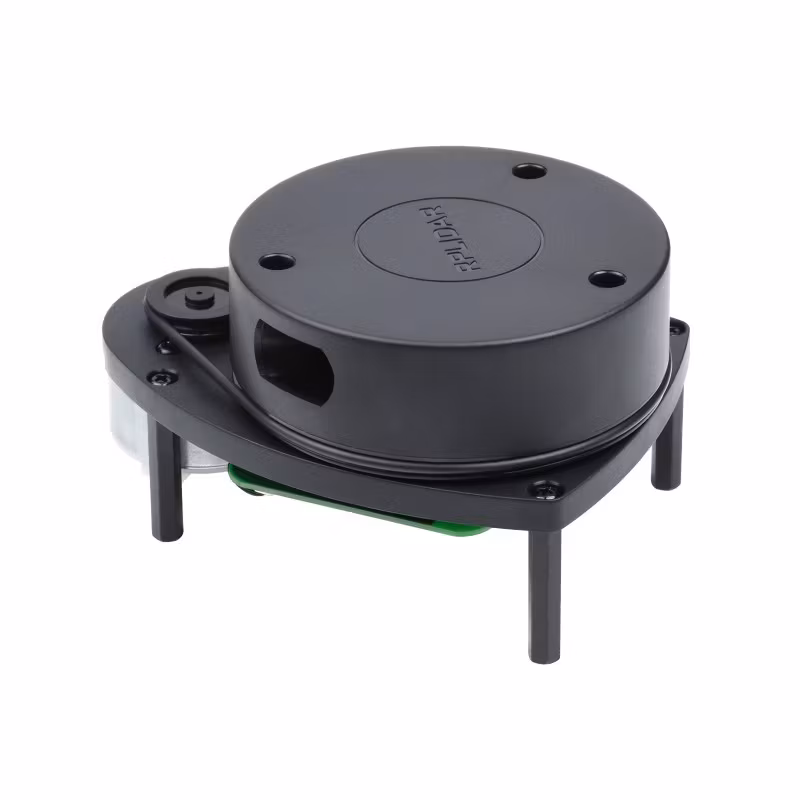

RPLiDAR A1M8 360 Degree Laser Scanner Kit - 12M Range

I lager.

1 599 kr

RPLIDAR A1 is a low cost 360 degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform 360degree scan within 6meter range. The produced 2D point cloud data can be used in mapping, localization and object/environment modeling.

RPLIDAR A1’s scanning frequency reached 5.5 hz when sampling 360 points each round. And it can be configured up to 10 hz maximum.

RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellent in all kinds of indoor environment and outdoor environment without sunlight.

Features

■Measures distance data in more than 8000 times/s

■360 Degree Omnidirectional Laser Range Scanning

■8000 times sample rate,the highest in the current economical LIDAR industry

■OPTMAG Original Design,prolong the life-span

■Configurable Scan Rate from 2-10Hz

■Ideal for Robot Navigation and Localization

■Plug and Play

Application Scenarios

■Home service /cleaning robot navigation and localization

■General robot navigation and localization

■Smart toy’s localization and obstacle avoidance

■Environment scanning and 3D re-modeling

■General simultaneous localization and mapping (SLAM)

Technical details

Dimensions
98.5mm x70mm x60mm
Weight
G.W 170g
Battery
Exclude
Distance Range
0.15 - 6m,White objects
Angular Range
0-360 Degree
Distance Resolution
<0.5mm
Angular Resolution
≤1Degree
Sample Duration
0.5ms
Sample Frequency
2000~2010Hz
Scan Rate
1~10Hz,Typical 5.5Hz,

Part List

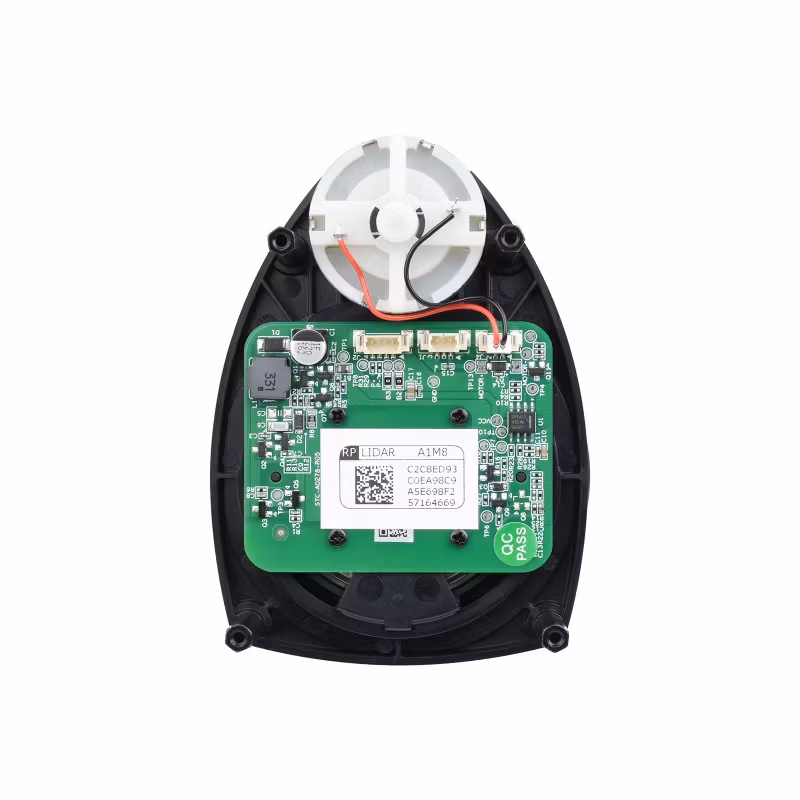

RPLIDAR A1(PWM motor driver embedded)
1
USB Adapter
1
RPLIDAR A1 communication cable
1

ECCN/HTS

HSCODE
9031809090
USHSCODE
9015900190
UPC
841454121244

Documents

Getting Started with LIDAR
