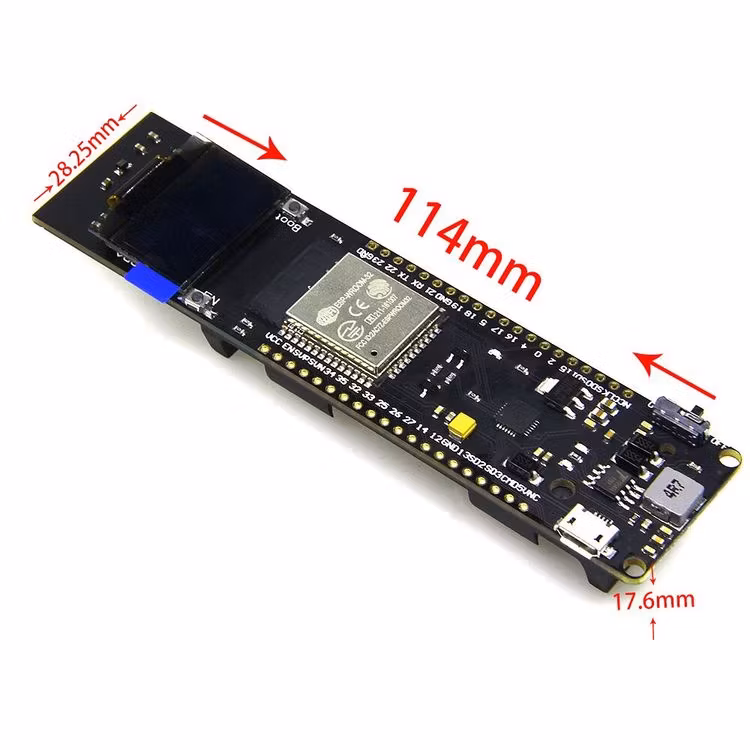

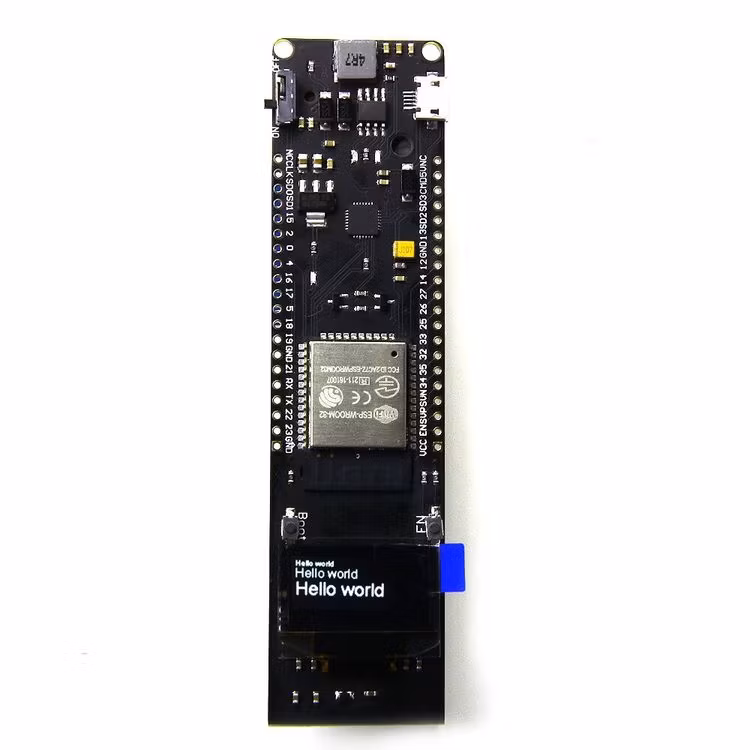

TTGO WiFi & Bluetooth Battery ESP32 0.96 Inch OLED Development Tool

I lager.

299 kr

Artikelnummer: SKU74

When you do some ESP32projects you must hate to add a power bank to provide the power. This tiny board could solve such problems. A LG 3000mAH 18650 battery could make ESP32 running.

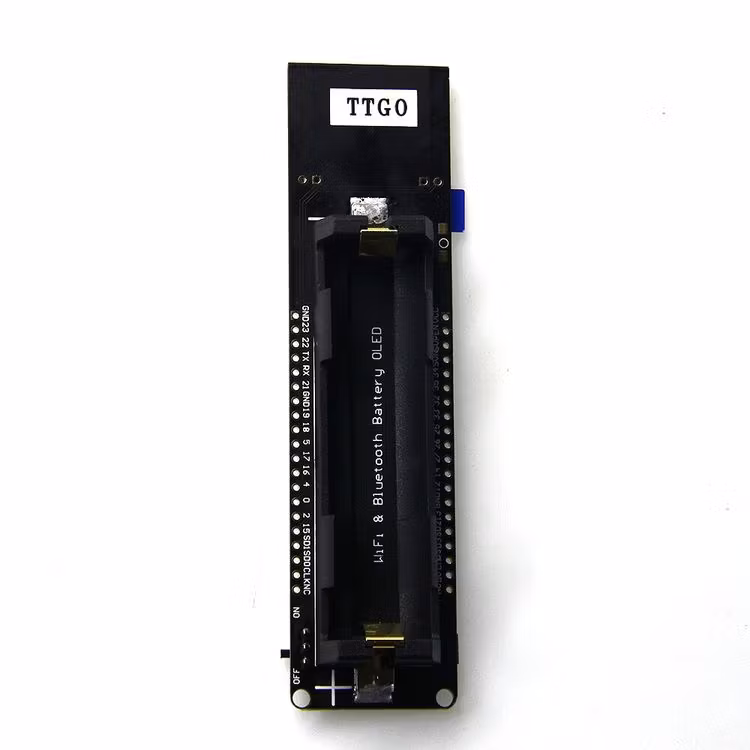

18650 charging system integrated.

indicate LED inside(Green means full& Red means charging)

Charging and working could be at the same time.

1 Switch could control the power.

1 extra LED could be programmed(Connected with GPIO16[D0])

0.5A charging current

1A output

Over charge protection

Over discharge protection

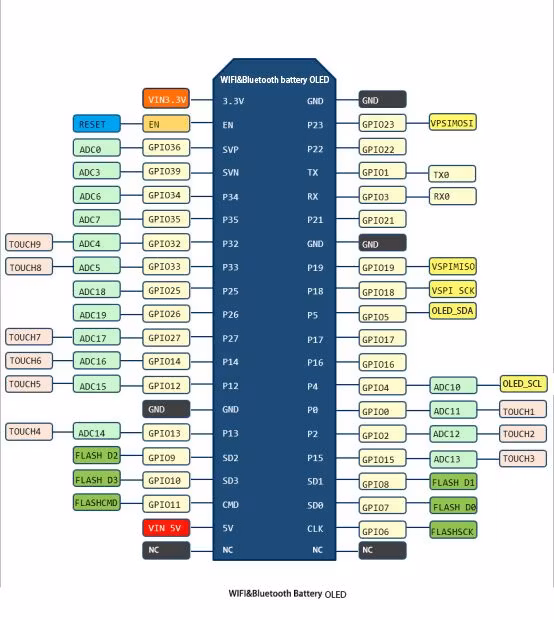

Full ESP32 pins break out

Click the link for more details:

Shipping List :

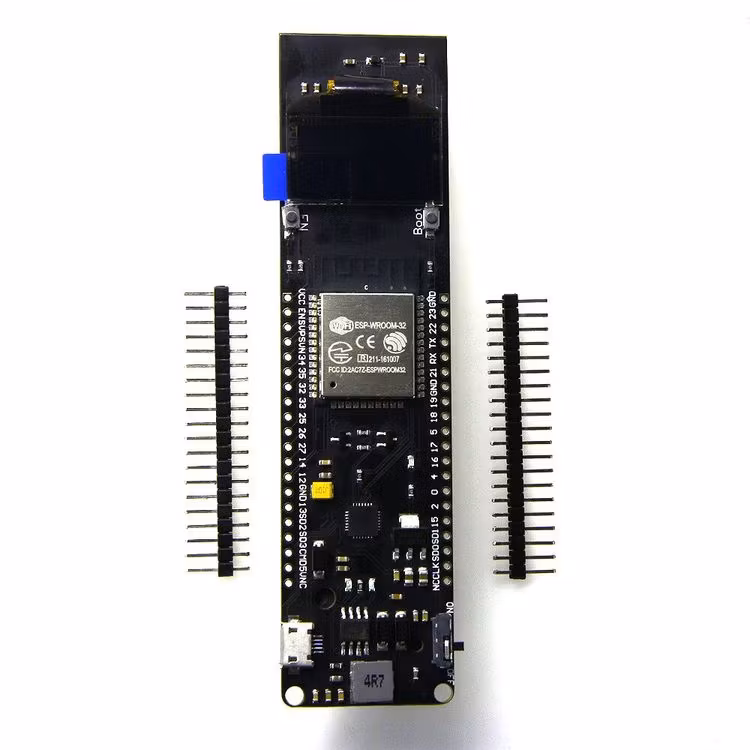

ESP32 0.96 inch OLED + 18650 charging system
