LILYGO®TTGO T-Higrow ESP32 WiFi And Bluetooth Battery And DHT11 Soil Temperature And Humidity Photometric Electrolyte Sensor

  • 449 kr

LILYGO®TTGO T-Higrow ESP32 WiFi And Bluetooth Battery And DHT11 Soil Temperature And Humidity Photometric Electrolyte Sensor  Hardware Specificat

I lager.
Lagersaldo: 7
Artikelnummer: 805
Dela
  • Information

LILYGO®TTGO T-Higrow ESP32 WiFi And Bluetooth Battery And DHT11 Soil Temperature And Humidity Photometric Electrolyte Sensor

10




Hardware Specifications

ChipsetESPRESSIF-ESP32 (Wi-Fi & Bluetooth)240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASHQSPI flash 4MB
SRAM 520 kB SRAM
ButtonIO0
Wake up IO35
Reset
USB to TTLCP2104
Modular interfaceUART、SPI、SDIO、I2C、LED PWM、TV PWM、I2S、IRGPIO、capacitor touch sensor、ADC、DACLNA  pre-amplifier
On-board clock40MHz crystal oscillator
Temperature and humidity sensorDHT11
Reserved extension interface21~22
Working currentAbout 150 mA
Sleep currentAbout 220 uA
Working temperature range -40℃ ~ +85℃
Size&Weight155.04*35*8.19mm(13.65g)
Power Supply Specifications
Power Supply InputUSB 5V/1A
Charging current500mA
Battery Input 3.7-4.2V
Battery3.7V lithium battery
Charge ICTP4054
JST Connector2Pin 1.25mm
USBType-C

Wi-Fi

StandardFCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (ESP32 chip)
Protocol802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval
Frequency range2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power22dBm
Communication distance300m

Bluetooth

ProtocolMeet bluetooth v4.2BR/EDR and BLE standard
Radio frequencyWith -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequencyCVSD&SBC audio frequency

Software specification

Wi-Fi ModeStation/SoftAP/SoftAP+Station/P2P
Security mechanismWPA/WPA2/WPA2-Enterprise/WPS
Encryption Type AES/RSA/ECC/SHA
Firmware upgradeUART download/OTA（Through network/host to download and write firmware）
Software DevelopmentSupport cloud server development /SDK for user firmware development
Networking protocolIPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User ConfigurationAT + Instruction set, cloud server, android/iOSapp
OSFreeRTOS



Copy Links For more details:

https://github.com/Xinyuan-LilyGO/TTGO-HiGrow





3D Shell Print Download Link：

https://www.tinkercad.com/search?category=tinkercad&q=HiGrow



Product Pin

15

Product Size

QQ图片20190821090634

Product Detail

555

Use Legend

13





ALG 3000mAH 18650 battery could make ESP32 working.



This capacitive soil moisture sensor differs from most of the resistive sensors on the market, using capacitive sensing principle to detect soil moisture. It avoids the problem that the resistance sensor is easy to corrode and greatly prolongs its working life.





666









S18B20 waterproof temperature sensor is used for t-higrow and t-watch with t-grove interface. For example, it can be used with t-higrow to test the temperature and humidity of flowerpot soil and environment, as well as the water temperature of fish tank when raising fish. Of course, it can also test other temperatures as long as you want.

 999





Shipping List:

If you buy T-Higrow,the list is

1 x TTGO T-Higrow

2 x Pin

1 x Power cable

G301主图08

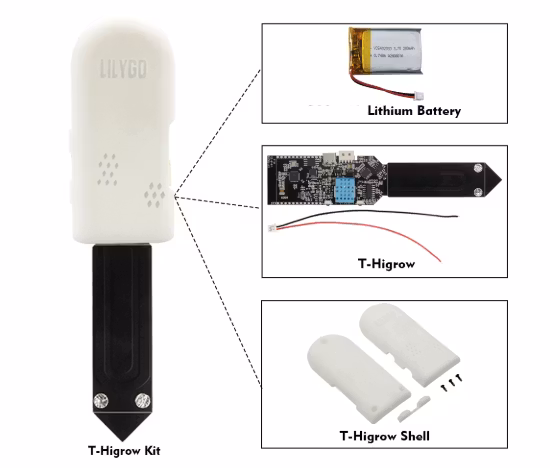

If you buy T-Higrow Kit,the list is

1 X T-Higrow Kit

(Assembled，Include T-Higrow Module ,White Shell and Built-in 200 mAh lithium battery）

14



If you buy T-Higrow Shell,the list is

1 X T-Higrow Shell

3 X Small screws

L686主图05
