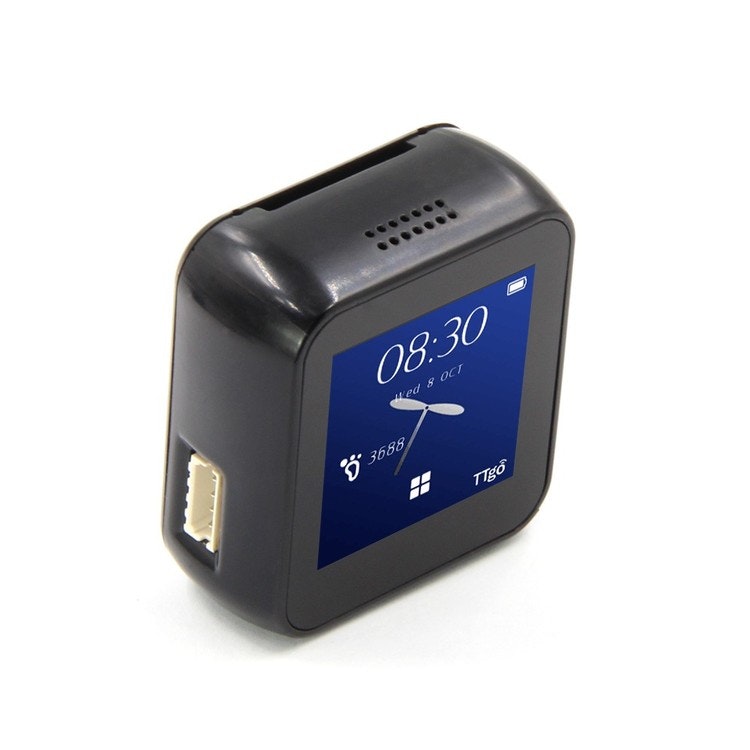

TTGO T-Watch Programmable And Networked smart watch

I lager.

999 kr


T-Watch is ESP32-based smartwatch hardware designed by TTGO. Hardware configuration with main core SOC (ESP32), 16MBytes large flash, 8MBytes external SPRAM, integrated multi-channel programmable power management chip ( AXP202), onboard three-axis accelerometer (BMA423), built-in step counter algorithm and other multi-function GSensor, with a variety of different configurations of internal replaceable backplane, such as LORA, GPS, SIM, SD.

TTGO T-Watch is watching shape ESP32 based development kit. 16 MB flash and 8 MB PSRAM both are top specifications. It also built-in a 240x240 IPS LCD, touch screen, micro-SD card port, I2C port, RTC, 3-axis accelerometer and a custom button. The backplane also can be switched to other modules such as LORA, GPS and SIM.

But the most important thing it can become a usable watch is the power system. It integrated AXP202 multi-channel programmable power management chip. This is the first time I see a development kit that has an I2C controllable power chip!

According to AXP202X_Library interface, you can control each power channel on and off, read the battery level, charging status and even direct shutdown the power, just like pushed the power button.

This model provide is  GPS And Lora

Technical Parameters

ESP-32 Master control:

  • Processors:
    • CPU: Xtensa dual-core 32-bit LX6 microprocessor, operating at 240 MHz
    • Ultra low power (ULP) co-processor
  • Memory: 520 KiB SRAM
  • Wireless connectivity:
    • Wi-Fi: 802.11 b/g/n
    • Bluetooth: v4.2 BR/EDR and BLE
  • Power supply:Type-C USB/Lithium battery
  • Operating Voltage:3.3V

T-Watch onboard:

  • 1.54 inch LCD capacitive touch screen: ST7789V
  • Touch screen chip: FT5206
  • Three-axis accelerometer: BMA423
  • PMU Power Management: AXP202
  • RTC clock module: PCF8563
  • Expand the interface:
    • Support microphone: MSM261S4030H0
    • Support SPI TF memory card
    • 2 digital I/Os: GPIO25, GPIO26 (supports ADC, DAC)
    • Support I2C, UART, SPI communication protocol

Extended features:

  • Lora module: SX1276
  • GPS communication module: NEO M8N/6M
  • GPRS communication module: SIM800L
  • Heart Rate Oxygen Sensor: MAX30102
  • Capacitive touch sensor: MRP121Q
  • Six-axis sensor: MPU6050
  • Wireless charging

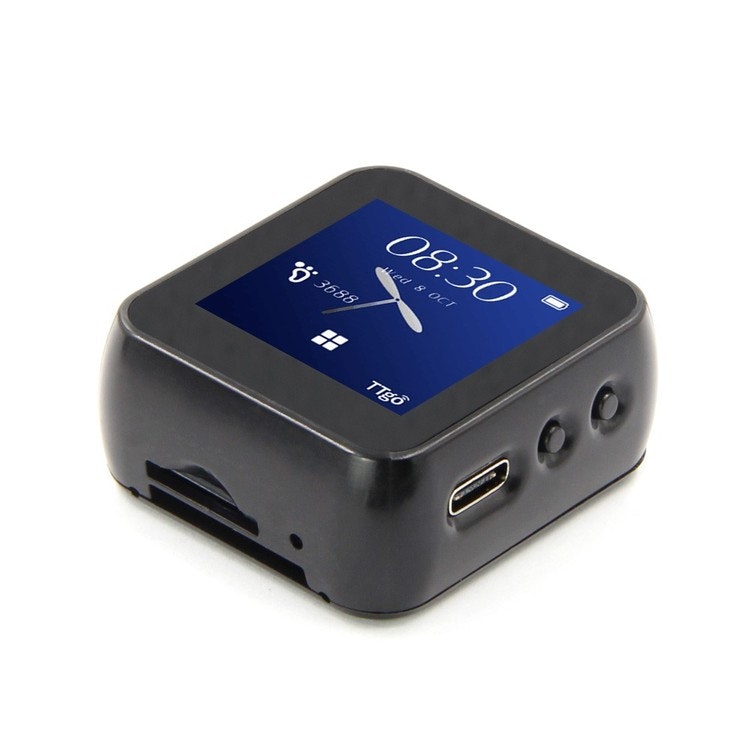

Appearance specifications

Product Features

  • Main chip: ESP32, dual-core MCU (integrated dual mode Bluetooth/wifi), PMU power management
  • Display: 1.54 inch LCD capacitive touch screen
  • Sensor: BMA423 three-axis accelerometer, built-in step counting algorithm, activity recognition/tracking, advanced gesture recognition, etc.
  • GPS module: Quickly locate the current position using the Sony CXD5603GF module
  • Lora module: a new generation of popular wireless communication technology
  • Combination kit: lithium battery, design open mold, and thick strap, and black and white
  • Development platform: ESP-IDF (native SDK), Arduino, Lua, MicroPython, Scratch

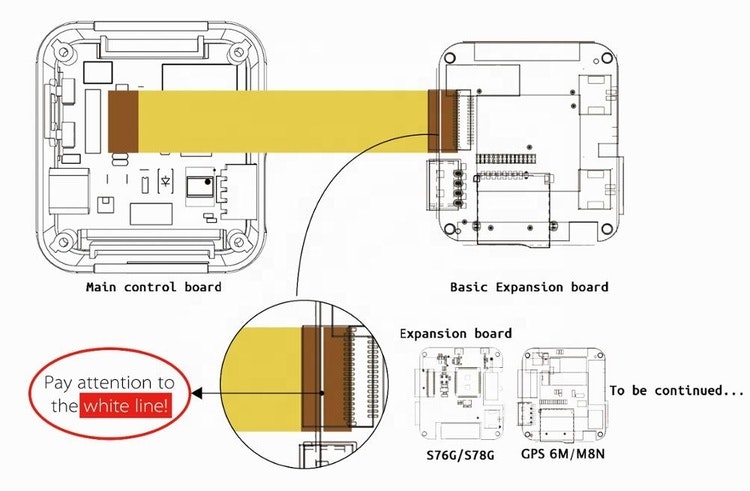

Component layout

Pin definition

Hardware Specifications

Chipset
ESP32, dual-core MCU, PMU power management
FLASH
QSPI flash 16MB
SRAM
520 kB SRAM / PSRAM 8MB
Button
power key , IO36
Extended function

USB to TTL
CP2104
Modular interface
UART、SPI、SDIO、I2C、LED PWM , PWM、I2S、IRGPIO、capacitor touch sensor、ADC、DACLNA
On-board clock
40MHz crystal oscillator
Working voltage
2.7V-3.6V
Working current
about 70mA
Sleep current
about 3mA
Working temperature range
-40℃ ~ +85℃
Size&Weight
46.47*43*20.4mm
43.19g
Display:
1.54 inch LCD capacitive touch screen
Sensor:
BMA423 three-axis accelerometer, built-in step counting algorithm, activity recognition / tracking, advanced gesture recognition.
RTC clock :
PCF8563

Power Supply Specifications

Power Supply
USB 5V/1A
Charging current
500mA
Battery
3.7V lithium battery

Wi-Fi

Standard
FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
Protocol
802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
Frequency range
2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power
22dBm
Communication distance
300m
Bluetooth

Protocol
meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency
with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency
CVSD&SBC audio frequency

Software specifications

Wi-Fi Mode
Station/SoftAP/SoftAP+Station/P2P
Security mechanism
WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type
AES/RSA/ECC/SHA
Firmware upgrade
UART download/OTA(Through network/host to download and write firmware)
Software Development
Support cloud server development /SDK for user firmware development
Networking protocol
IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User Configuration
AT + Instruction set, cloud server, android/iOSapp
OS
FreeRTOS


Developing resource

More Guide TTGO T-Watch

More

Product Details

Accelerometer

• Chip: BMA423

• Latest generation triaxial, low-g acceleration sensor from Bosch

• ultra-small

• digital interfaces

• 2-bit digital resolution and embedded intelligence,

• allows low-noise measurement of accelerations in 3 perpendiculars and thus senses wrist

tilt, tab/double tab and enables plug ’n’ play step counting especially in wearable devices.

Recommended for

- Step-counting in wearable devices

- Wake up display on wrist tilt

- Low power user interaction by tab/double tab

- Advanced gesture recognition

- Activity recognition/tracking

- Advanced power management for mobile devices

- Tilt compensation for electronic compass

Shipping List

1 x T-Watch

1 x Female Pin extension board

1 x Blackstrap(25.5CM)

1 x Charging cable

1 x Data cable

1 x Small screwdriver

4 x Small screw

1 x Blue small rag

1 x Manual

1 x Exclusive box
