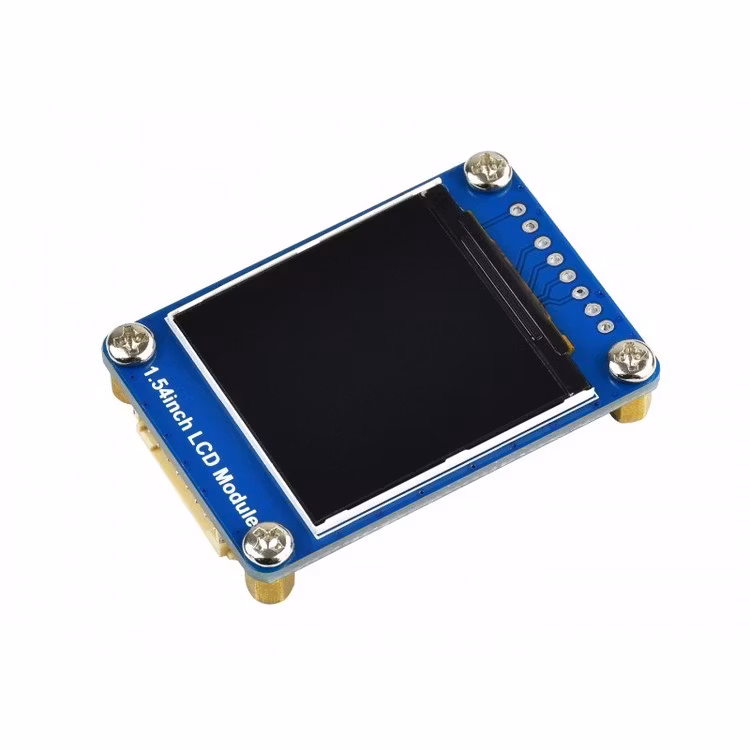

240×240, General 1.54inch LCD Display Module, IPS, 65K RGB

  • 249 kr
  • 224 kr

1.54inch LCD Display Module, IPS Screen, 65K RGB Colors, 240×240 Resolution, SPI Interface1.54" LCD DISPLAY MODULEEmbedded ST7789 Driver, Using SPI BusComes wit

I lager.
Artikelnummer: 796
Dela
  • Information

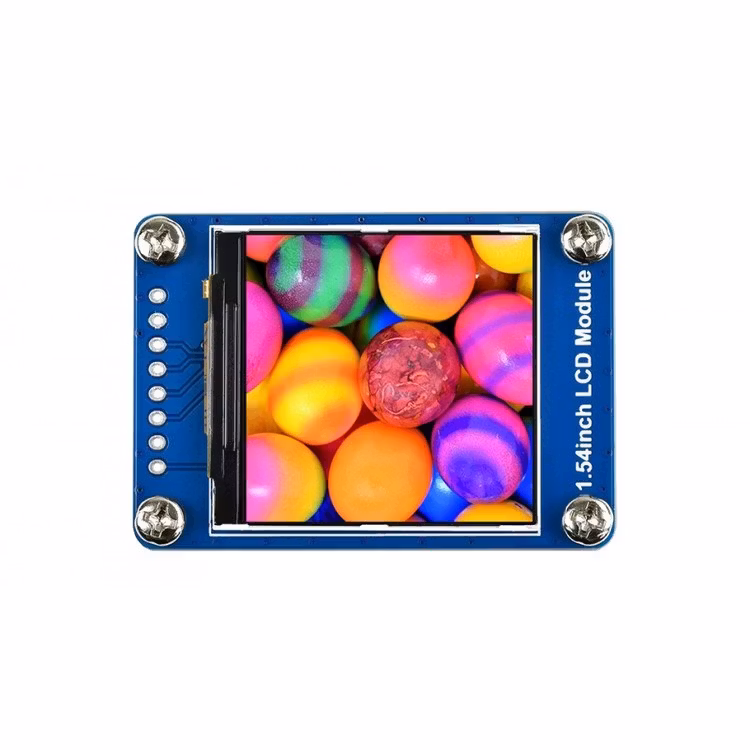

1.54inch LCD Display Module, IPS Screen, 65K RGB Colors, 240×240 Resolution, SPI Interface

1.54" LCD DISPLAY MODULE

Embedded ST7789 Driver, Using SPI Bus

Comes with examples for Raspberry Pi, Arduino, STM32, etc.



Size 1.54"

Resolution 240×240

 Display Color 65K RGB

Display Panel IPS

 Interface SPI

 Driver ST7789

Features At A Glance

  • 240×240 resolution, 65K RGB colors, clear and colorful displaying effect
  • SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
  • Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Specifications

OPERATING VOLTAGE
3.3V/5V
RESOLUTION
240 × 240pixels
COMMUNICATION INTERFACE
4-wire SPI
DISPLAY SIZE
27.72 × 27.72mm
DISPLAY PANEL
IPS
PIXEL SIZE
0.1155 × 0.1155mm
DRIVER
ST7789
DIMENSIONS
50 × 35mm

Controlled Via SPI Bus

Supports Controller Boards Like Raspberry Pi/Arduino/STM32

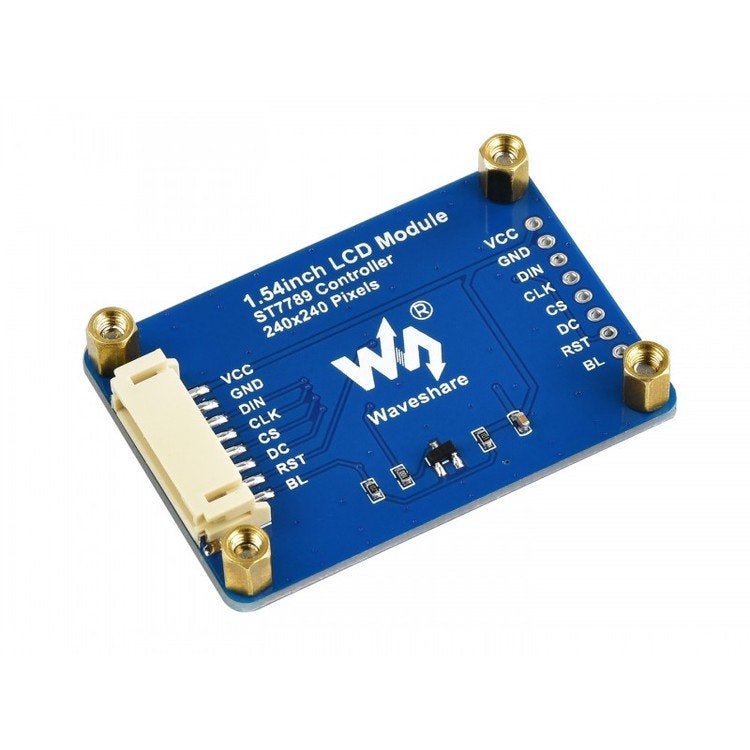

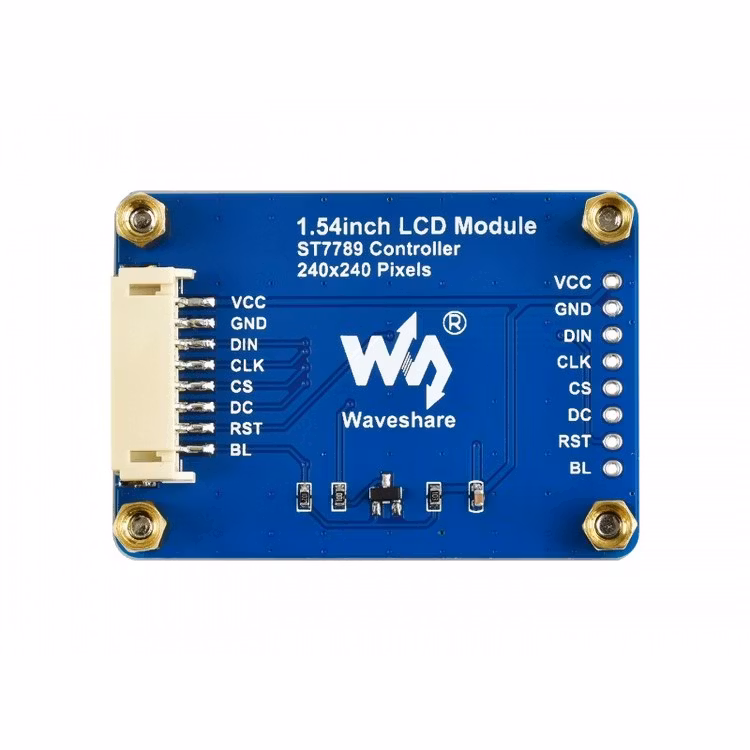

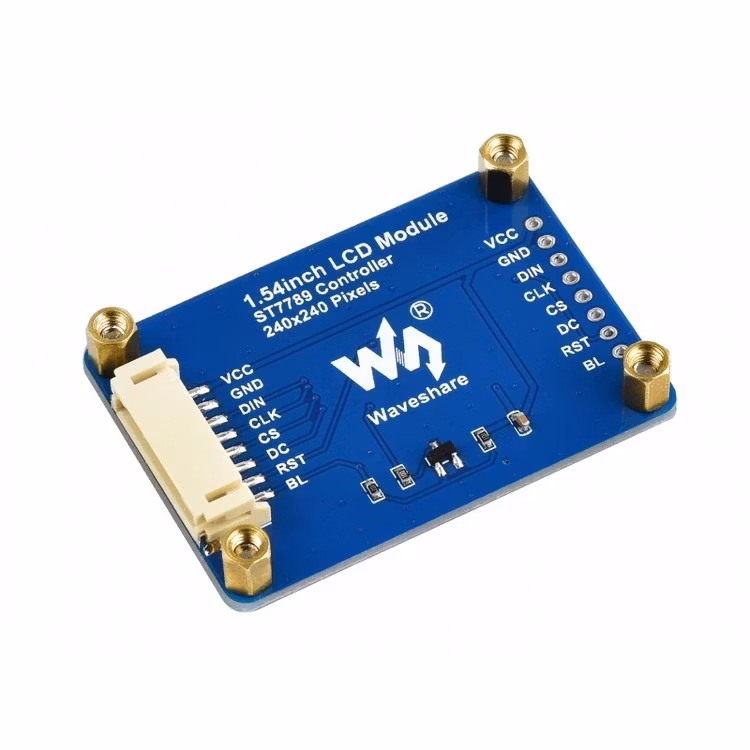

VCC
Power (3.3V/5V input)
GND
Ground
DIN
SPI data input
CLK
SPI clock input
CS
Chip selection, low active
DC
Data/Command selection (high for data, low for command)
RST
Reset, low active
BL
Backlight

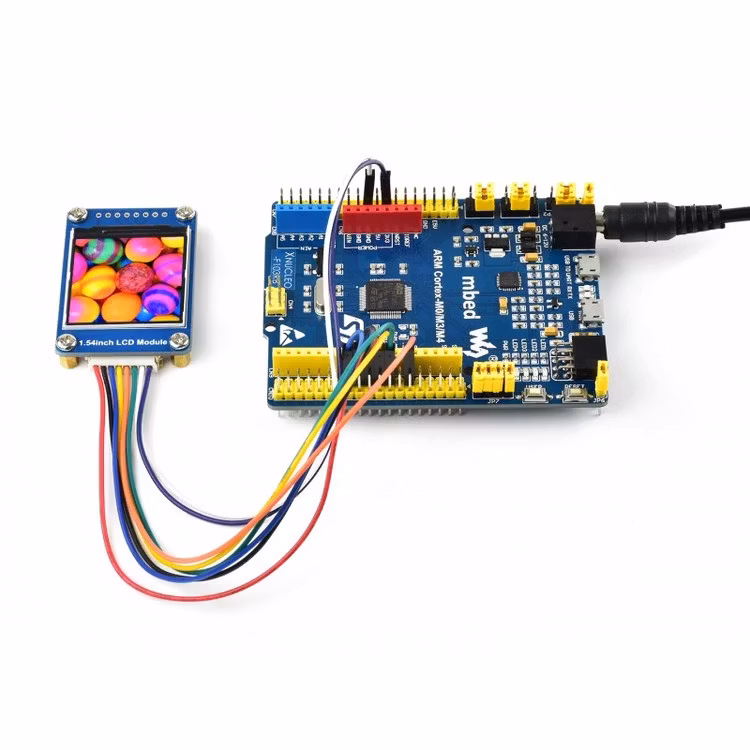

Hardware Connection

Connecting With Raspberry Pi

Connecting With Arduino Board

Living Example

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/1.54inch_LCD_Module
