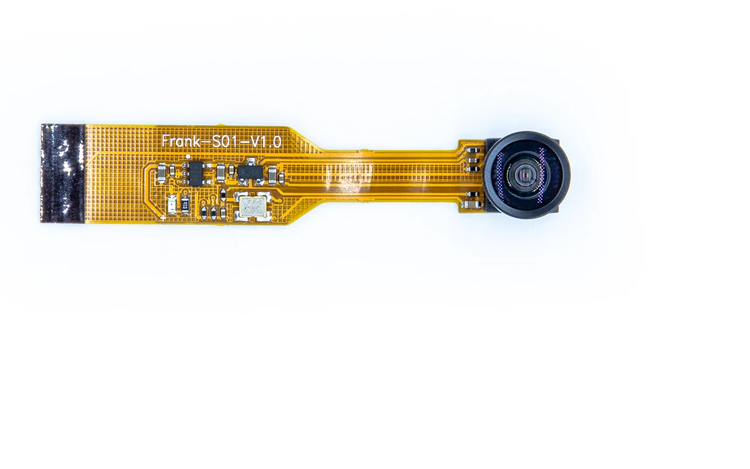

Camera Module for Raspberry Pi Zero - 160° variable focus

I lager.
Antal: 6

249 kr

Artikelnummer: 649

This Raspberry Pi camera features a wide 160° fisheye lens and uses the same OV5647 chip as the standard Raspberry Pi camera! It's, therefore, able to deliver a crystal clear 5MP resolution image or 1080p HD video recording at 30fps!


CSI camera port works with Raspberry Pi zero or zero W
Raspberry Pi Camera, supports all revisions of the Pi
5-megapixel OV5647 sensor
Camera specifications
CCD size : 1/4inch
Focal Length : 2.1mm, f2.0 Lens
Field of View: 160 degrees (while other normal cameras are typically 72 degrees)
Sensor best resolution : 1080p
2592 × 1944 still picture resolution
Support 1080p/30fps, 720p/60fps and 480p/90fps video record

Dimension: 60mm × 11.5mm × 10.5mm

1pcs Camera module

Technical Details:

Please download the camera user guide here.
