Raspberry Pi Zero WH Package D, with USB HUB HAT

I lager.
Antal: 1

665 kr

Artikelnummer: SKU582

Raspberry Pi Zero WH (Built-In WiFi, Pre-Soldered Headers) Development Kit Type D, Micro SD Card, Power Adapter, USB HUB, And Basic Components

Overview

This development kit includes: the Raspberry Pi Zero WH (built-in WiFi, pre-soldered headers), 16GB Micro SD Card, 5V 2.5A Power Adapter, a USB HUB HAT that allows you to plug in more USB devices.

The kit also comes with some most basic components you may need to get going with your Pi Zero: Mini HDMI to HDMI Adapter, Micro USB OTG Cable.

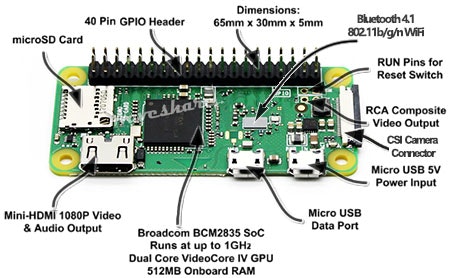

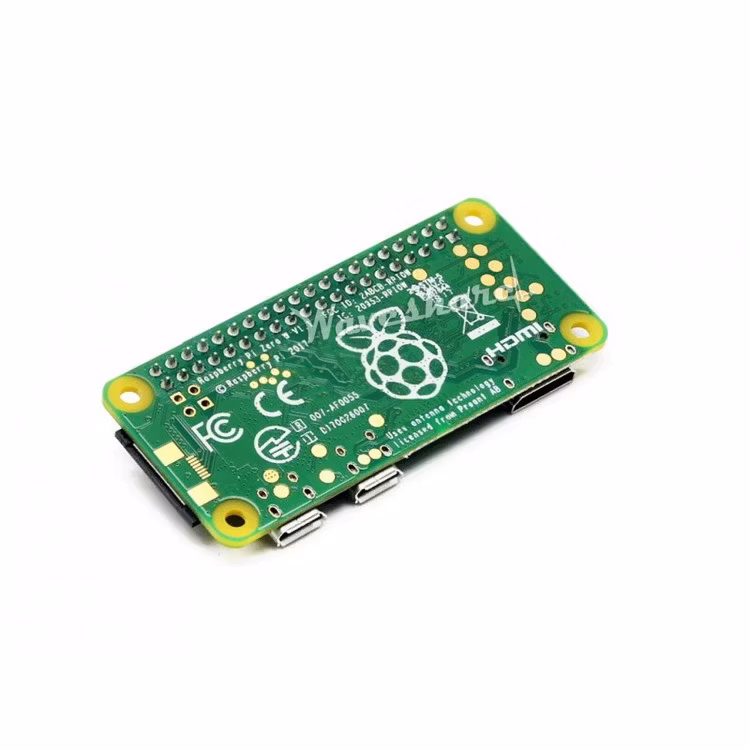

Raspberry Pi Zero WH Features

  • Broadcom BCM2835
    • 1GHz ARM11 single-core processor
  • 512MB RAM
  • Added wireless connectivity
    • 802.11 b/g/n wireless LAN
    • Bluetooth 4.1
    • Bluetooth Low Energy (BLE)
  • 40PIN pre-soldered GPIO headers
  • Micro SD card slot
  • Mini-HDMI port (1080p60 video output)
  • Micro-USB power
  • Micro-USB OTG port
  • CSI camera connector
  • Composite video header
  • Composite reset header
  • Dimension: 65mm x 30mm x 11.6mm

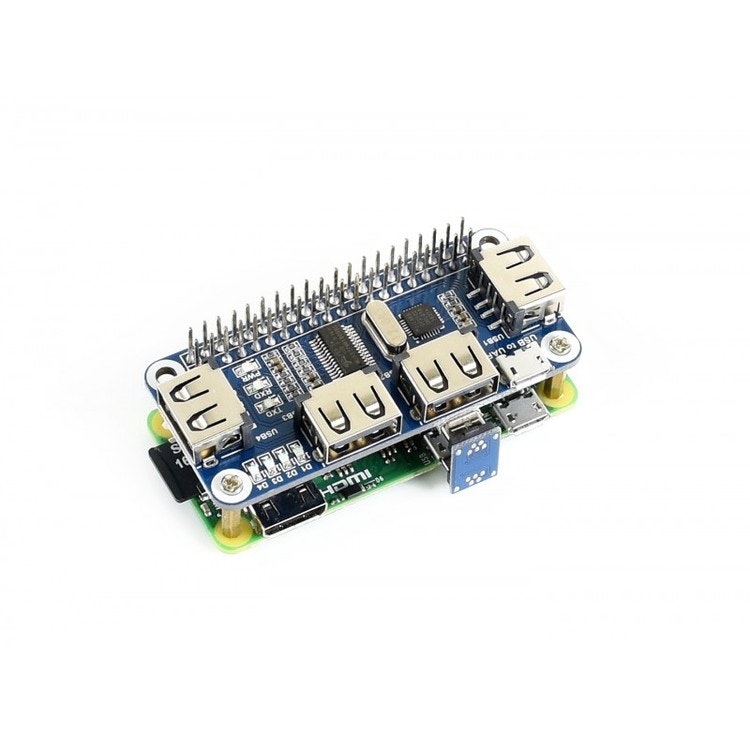

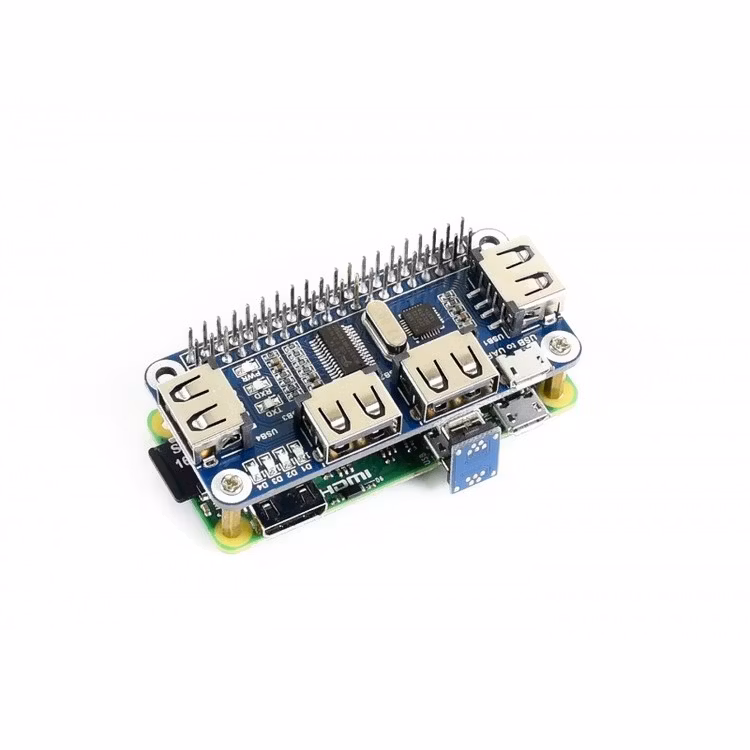

USB HUB HAT Features

  • 4 USB Ports, compatible with USB2.0/1.1
  • Onboard USB to UART, with enable / disable switch, convenient for Raspberry Pi serial debugging and avoiding conflict
  • Onboard multi indicators, for monitoring the status of power, USB to UART, and each USB port

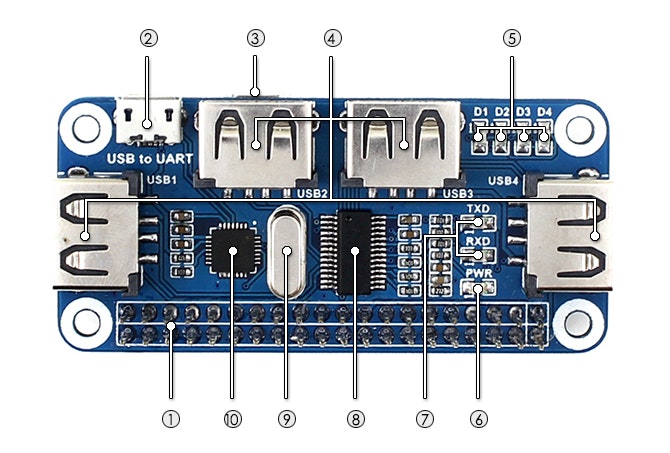

What's on the USB HUB HAT

Raspberry Pi Expansion Board on board resource

  1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
  2. USB to UART: for controlling the Raspberry Pi via serial terminal
  3. USB HUB interface (bottom):for connecting the HUB to the Raspberry Pi USB port
    • Raspberry Pi Zero / Zero W / Zero WH: connected via Micro USB connector
    • Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable
  4. USB extended ports: USB1~USB4
  5. USB port indicators: dedicated indicator for each USB port, D1~D4 for USB1~USB4 respectively
  6. Power indicator
  7. USB to UART indicator
  8. FE1.1S: USB HUB chip
  9. 12MHz crystal
  10. CP2102: USB to UART converter

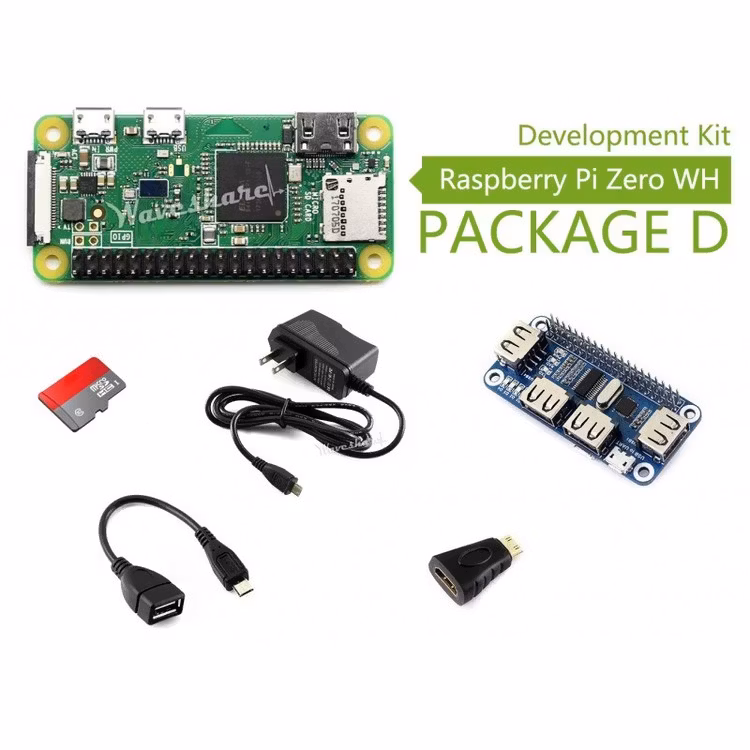

Shipping list

Weight: 0.208 kg

  1. Raspberry Pi Zero WH x1
  2. Mini HDMI to HDMI Adapter x1
  3. Micro USB OTG Cable x1
  4. Micro SD Card 16GB x1
  5. Power adapter US standard 5V/3A micro x1
  6. USB type A plug to micro B plug cable x1
  7. USB HUB HAT x1
  8. Micro USB connector x1
  9. RPi screws pack (2pcs) x1
