RPi Camera (H), Fisheye Lens, Supports Night Vision

  • 449 kr

Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View, Supports Night Vision.Raspberry Pi Camera, supports all revisions of the PiFisheye Lens, offers w

I lager.
Artikelnummer: 527
Dela

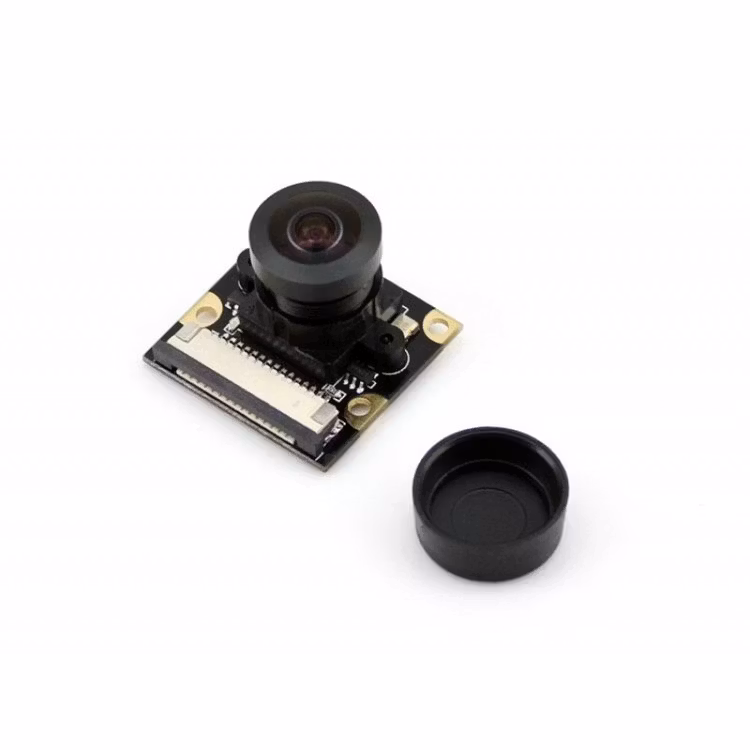

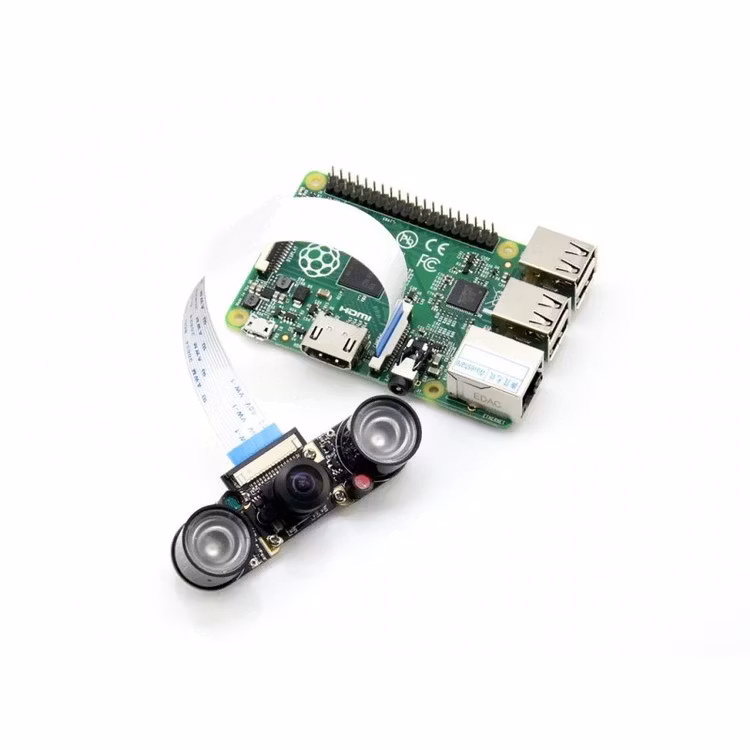

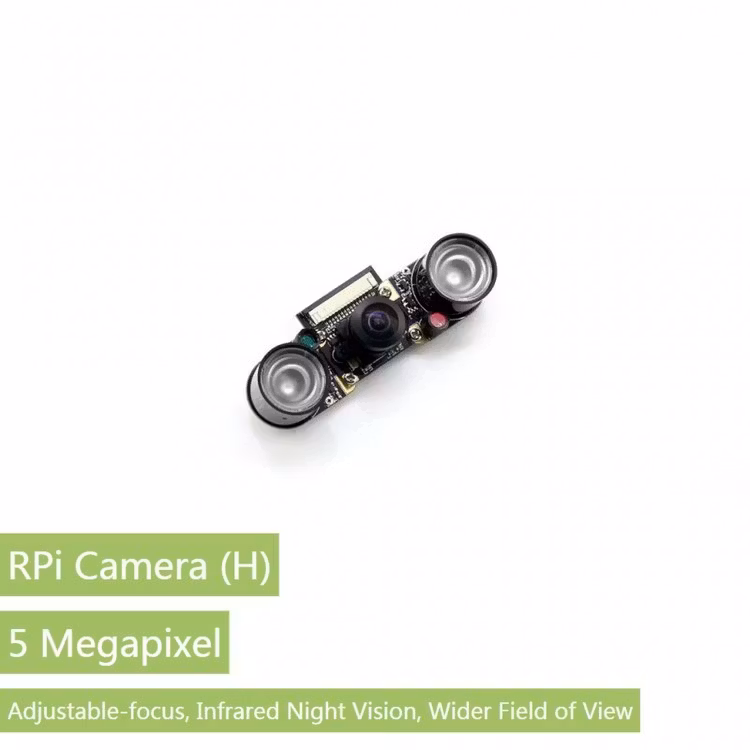

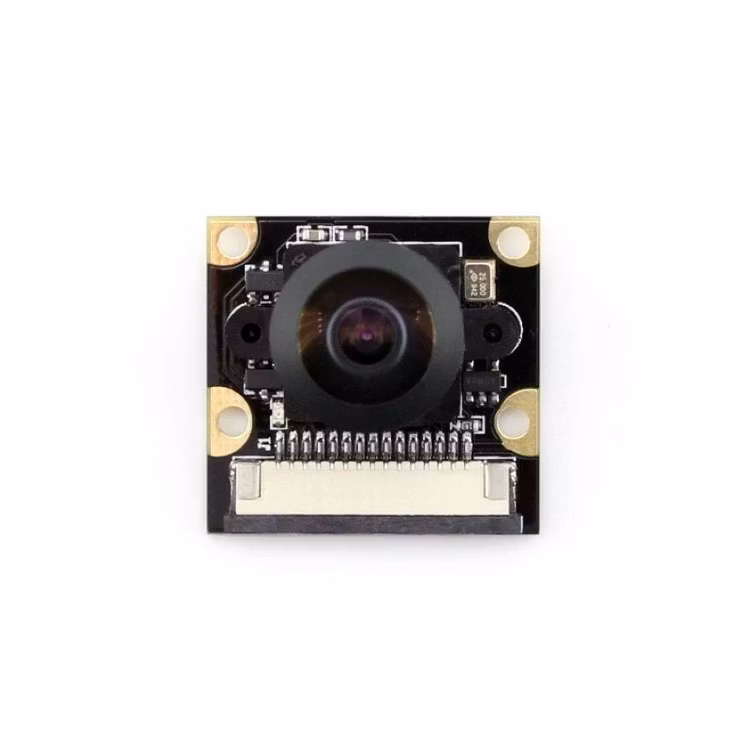

Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View, Supports Night Vision.

  • Raspberry Pi Camera, supports all revisions of the Pi
  • Fisheye Lens, offers wider field of view
  • Comes with infrared LED, supports night vision
  • 5 megapixel OV5647 sensor
  • Adjustable focus distance
  • Camera specifications
    • CCD size : 1/4inch
    • Aperture (F) : 2.35
    • Focal Length : 3.15mm
    • Angle of View (diagonal) : 160 degree (while other normal cameras are typically 72 degree)
    • Sensor best resolution : 1080p
  • 4 screw holes
    • Used for attachment
    • Provides 3.3V power output
    • Supports connecting infrared LED and/or fill flash LED
  • Dimension: 25mm x 24mm

Downloads

Development resources:user manual, etc.
Download: www.waveshare.com/wiki/RPi_Camera_(H)

Packet includes

Weight: 0.058 kg

  • Pi Camera (H) x1
  • Infrared LED Board (B) x2
  • 15-pin FFC (opposite sides contact) x1
