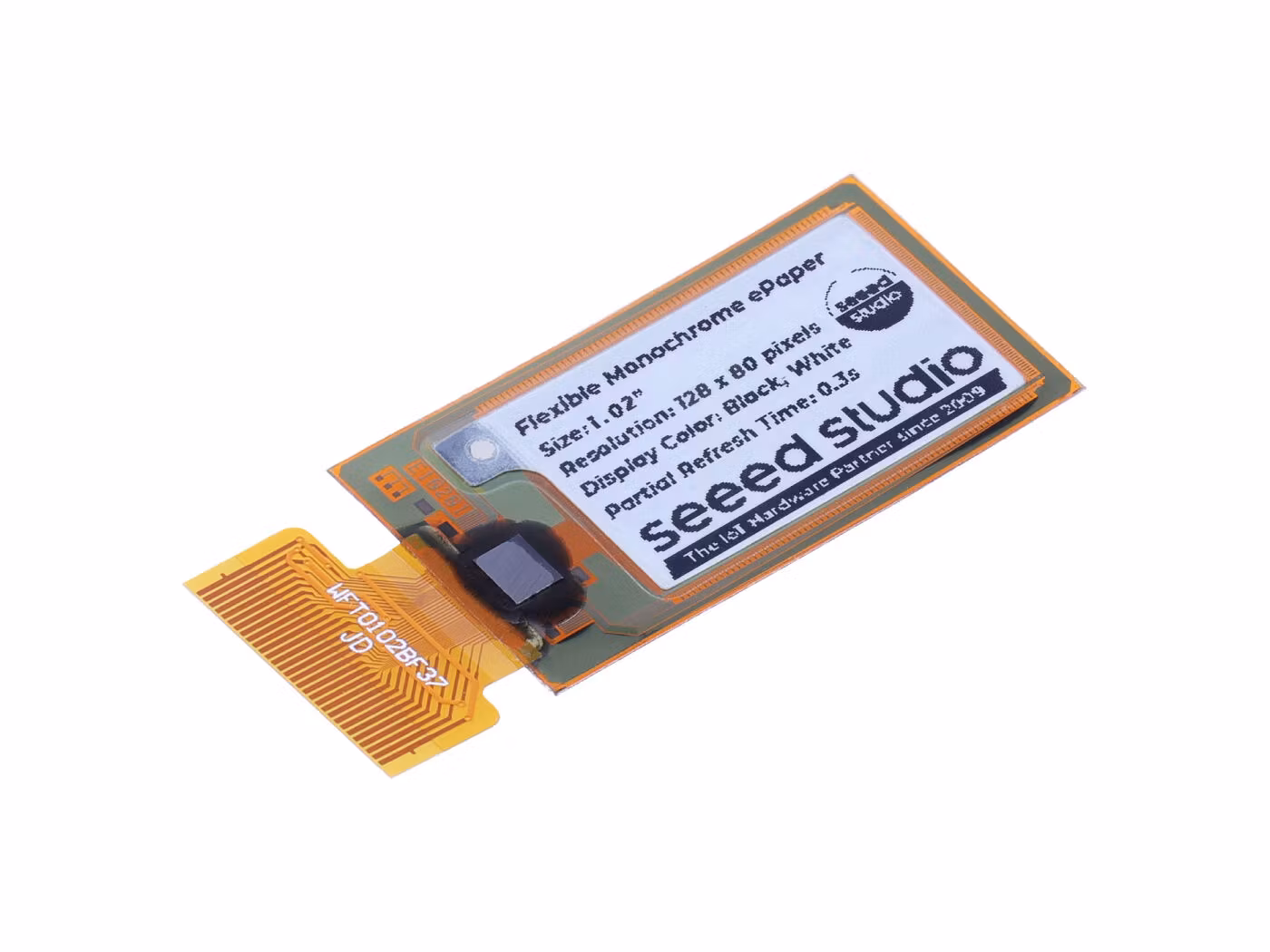

1.02" Flexible Monochrome ePaper Display with 128x80 Pixels, SPI interface, Support XIAO/Arduino/STM32

  • 149 kr

The 1.02 inch E-paper Display is a flexible substrate-based display with a 128x80 pixel active area and 1-bit white/black full display capabilities. It features

Produkten är tyvärr slut i lager. :(

Artikelnummer: 1298
Dela

The 1.02 inch E-paper Display is a flexible substrate-based display with a 128x80 pixel active area and 1-bit white/black full display capabilities. It features high contrast, ultra-low power consumption, and pure reflective mode.

PRODUCT DETAILS

The 1.02-inch E-paper Display is a flexible substrate-based display with a 128x80 pixel active area and 1-bit white/black full display capabilities. It features high contrast, ultra-low power consumption, and pure reflective mode.

Features

  • Exceptional Readability: The display's reflective properties ensure effortless legibility of text and images in different lighting environments.
  • Ultra-Low Power Usage: The E-paper only consumes power during updates, leading to prolonged battery life and efficient energy use.
  • Wide Viewing Angles: Greater than 170 degrees, unaffected by light direction.
  • Flexibility and Portability: Allowing bending and curling for versatile applications.
  • Eye-Friendly and Heat-freeEliminate glare, providing a comfortable viewing experience while remaining cool without generating heat

Description

The 1.02-inch E-paper Display is a flexible substrate-based display with a 128x80 pixel active area and 1-bit white/black full display capabilities. It features high contrast, high reflectance, ultra-wide viewing angle, ultra-low power consumption, and pure reflective mode. The display is bi-stable, operates in commercial temperature range, and has landscape and portrait modes. It is available in COG package IC thickness 280um and has an on-chip display RAM and waveform stored in On-chip OTP. The display also has a serial peripheral interface available, an on-chip oscillator, an on-chip booster, and regulator control for generating VCOM, Gate, and source driving voltage.

What is an E-Paper?

E-Paper, short for Electronic Paper, is a type of display technology that aims to mimic the appearance of traditional paper and ink. It's designed to provide high contrast and readability in various lighting conditions, including direct sunlight, without the need for a backlight. E-Paper displays use tiny microcapsules containing charged particles suspended in a liquid to produce images. When an electric field is applied, the particles move to the top or bottom of the microcapsules, resulting in different shades or colors being visible to the viewer. E-Paper is often used in e-readers, electronic shelf labels, smartwatches, and other devices where energy efficiency and readability are essential.

Advantages Over Traditional Displays

E-Paper displays offer advantages over traditional displays, including better readability like paper, visibility in sunlight, low energy consumption, thin design, wide viewing angles, and longer battery life. They are ideal for portable devices and environments where glare and power efficiency matter.

Applications

  • Reading equipment
  • Mobile device
  • Electronic tags and price tags
  • Smart Wearables
  • Electronic Shelf Labels
  • Smart Card

Specification

Parameters
Details
Model No.
GDEW0102I4FC
Type
Dot Matrix
Size
1.02 inch
Active Area(mm)
21.76 x 14
Resolution
128 x 80 pixels
Pixel Pitch(mm)
0.175 x 0.17
Display Color
Black, White
Grayscale
2
Partial Refresh Time
0.3s
Full Refresh Time
3s
Interface
SPI
Viewing Angle
>170°
Operating Voltage
3.3V
Operating Temperature
0-50°C
Driver Mode
Support XIAO/STM32/Arduino/Micropthon
Drawing
Support GUI Drawing
Power Consumption
26.4mW (typ.)
Standby Consumption
0.0165mW
Outline Dimension(mm)
32.57 x 18.6 x 0.3
Weight
3.2g

Hardware Overview



Part List

1.02 Flexible Monochrome ePaper Display
×1
