10.3inch E-paper Monitor, Mini HDMI Interface

  • 5 499 kr

10.3inch E-Paper Monitor, Mini HDMI Interface, External E-Paper Screen For MAC/Windows PC, Anti-Glare, No Blue Light. If you are interested in 9.7inch or 13.3 i

I lager.
Lagersaldo: 2
Artikelnummer: 1201
Dela

10.3inch E-Paper Monitor, Mini HDMI Interface, External E-Paper Screen For MAC/Windows PC, Anti-Glare, No Blue Light. If you are interested in 9.7inch or 13.3 inch contact us.

Selection Guide


9.7″

10.3″

13.3″
RESOLUTION1200×8251872×14041600×1200
PPI150227150
PANELAnti-glare toughen glass
REFRESH RATE15Hz (the maximum refresh rate of A2/A2+ mode)
ASPECT RATIO16:114:34:3
DISPLAY DIMENSION202.8×139.425 mm209.66×157.25 mm270.4×202.8 mm
OUTLINE DIMENSION238.3×168 mm228×185.7 mm305×225.9 mm
THICKNESS9.5 mm9 mm
NET WEIGHT501g433g685g
VESA STAND HOLE SPACING50mm75mm

Craftsmanship Quality With Exquisite Details

Explore The New Functions Of E-Paper Monitor

Better Choice For Your Monitor

No Blue Light, Eye Care

Long-term use of conventional LCD monitors will easily dry and fatigue your eyes, while e-paper display technology can release you from the blue light and return to the pure reading experience of the paper and ink.

Inspired By Paper And Ink

E-Paper Display Technology Principle

E-paper monitor utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper monitor will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Clearer And More Detailed Picture

High Resolution In E-Paper Monitor

Anti-Glare Toughen Glass
Sturdy & Eye-Care

Anti-glare toughen glass with optical bonding technology makes the screen thinner, reduces ambient light interference, reflective glare and fingerprint residue at the same time, making the image clearer and the display effect more eye-care.

Exquisite Craftsmanship, Simple Design

Light, Thin And Portable, Good Handfeeling

Primary Or Secondary, Either Is Fine

This E-Paper Monitor Can Work With Multi Devices Or Systems
Support Windows, Mac, IOS, Linux, Android*
Both Outstanding As A Primary Or Secondary Monitor

*Android only supports some mobile phones with "desktop mode".

An additional adapter is required for devices with no HDMI port, as shown in the picture above.


Most computers with Windows or Linux system support HDMI interface output, which can be connected via the HDMI to Mini HDMI cable.

Support Huawei Hongmeng system, EMUI system, support Samsung mobile phone or other Android phone with "desktop mode".

For more device compatibility details, please contact customer service.

Take Care Of Your Eyes While Busy



Developer/Maker
Long-term coding on the LCD screen will easily cause eye fatigue. Using the E-paper screen for coding is like reading a book, which is a perfect choice.



Writer
Your eyes may bear too much stress for a long-term editing work on PC. With this e-paper monitor, you don't need to worry about eye fatigue interrupting your creative inspiration, and your works will be free-flowing.



White-Collar Workers
The use of E-paper screens can effectively decompress the eyes and make your work more efficiently when editing documents, making tables and reading data.



Students
Clear and non-blinding display for more efficient learning in your class.

Multi Mode Support

Three Available Modes: GC16, A2, And A2+, Selected Via Mode Button

Contrast And Refresh Rate Adjustment

Supports Up To 10 Contrast Options, And 5 Refresh Rate Options
Combined With Different Mode, It Is Possible To Tune Your Best Own Effect

For better experience, it is recommended to use rate of 5 for video, and 1-3 for documents.

Quick Response, Low Latency

Refresh Technology Based On FPGA, Quick Response, Low Latency
15Hz Refresh Rate, Watching Video Freely*

* It can used to play video, however, because of the limitation of the EINK principle, we don't recommend you use the EINK to play video, it will decrease the lifetime of the EINK display.

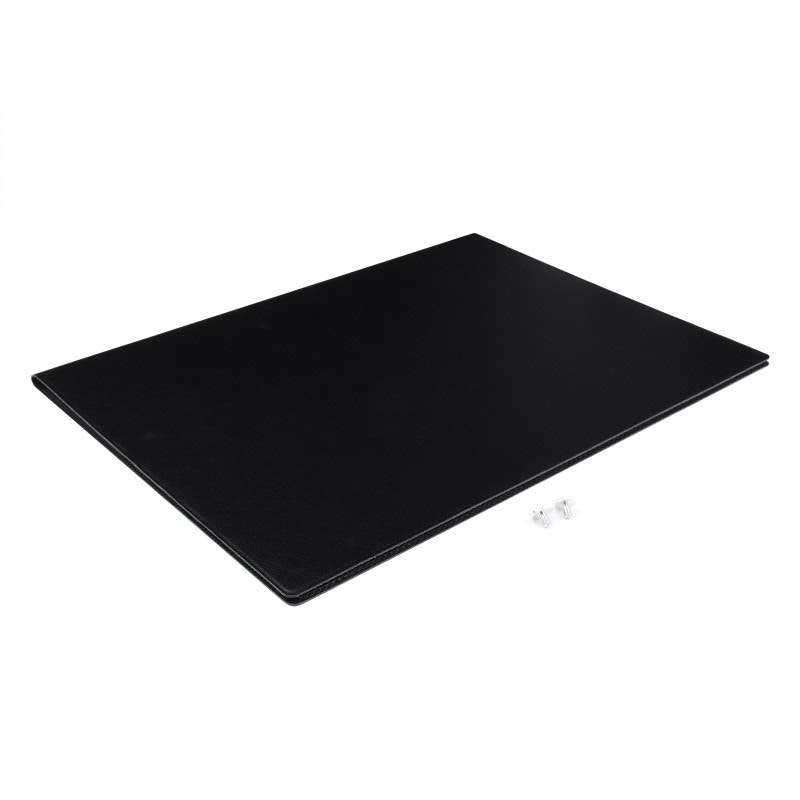

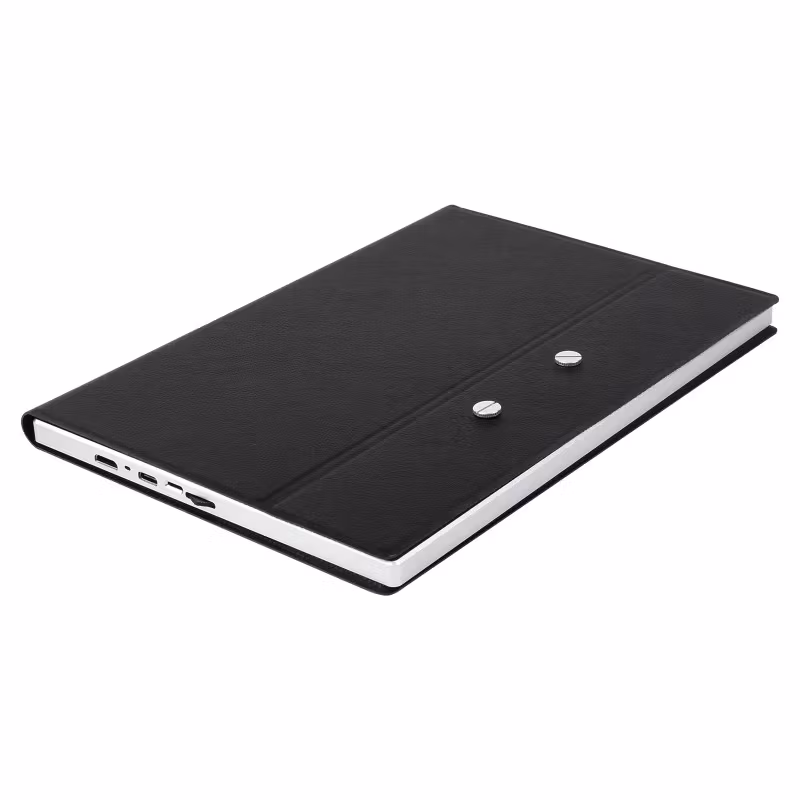

Free Leather Case, Flexible And Adjustable

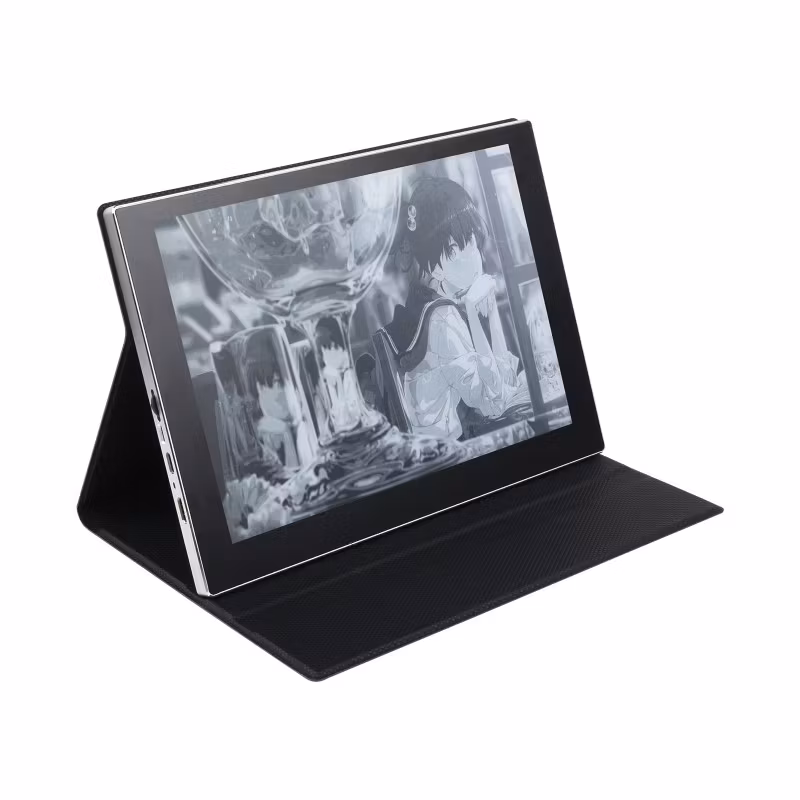

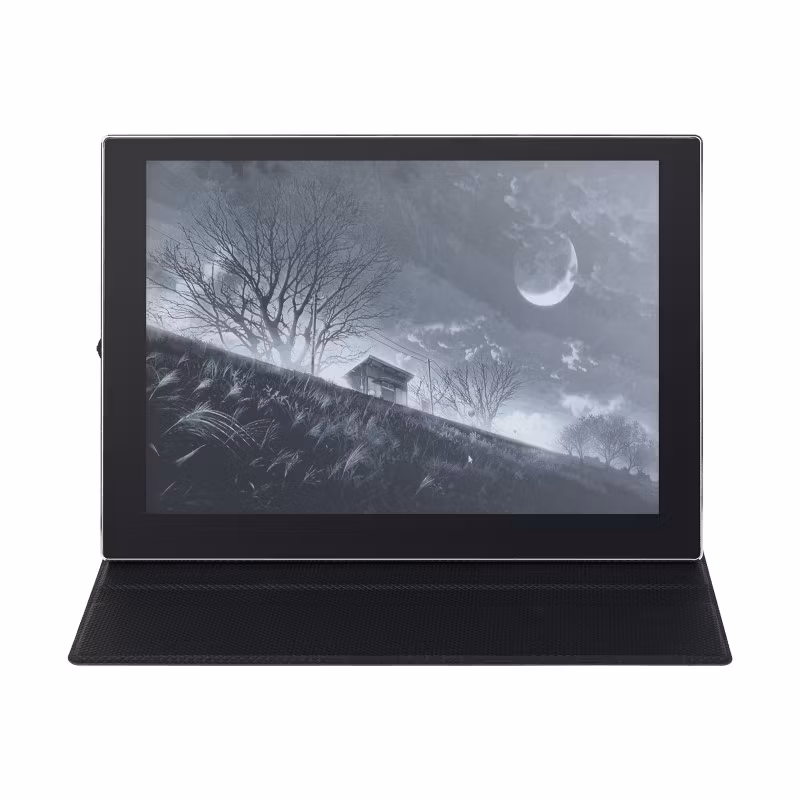

Three Adjustable Stand Angles

* 9.7” E-paper monitor only supports 2 angles adjustment

Support VESA Stand

Support 50/75mm Standard Diameter VESA Holes
Suitable For Horizontal And Vertical Placement

Interface Introduction

* The order of the interfaces position will be slightly different for different screen sizes

Product Shows


13.3″ E-Paper Monitor

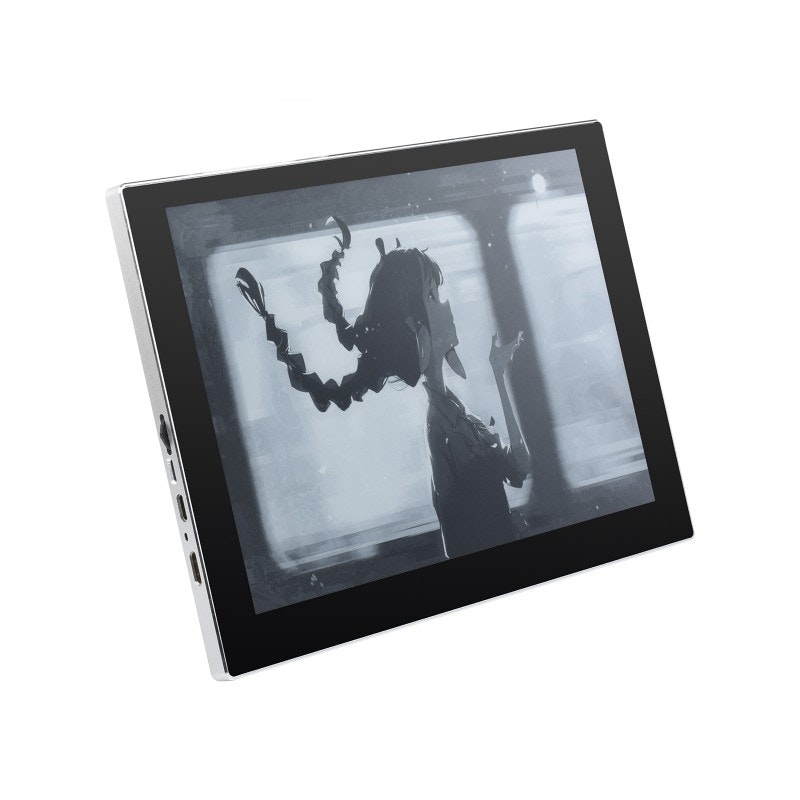

10.3″ E-Paper Monitor



9.7″ E-Paper Monitor



Package Box




  • Limited by display principle, E-paper monitor has lower refresh rate (about 15Hz on mode A2), it only suits office/study applications such as coding, document editing, spreadsheet making, webpage browsing, etc.
  • For scenes where high refresh rate is required, say, entertainment or gaming, please choose other normal LCD monitors.
  • E-paper monitor reflects ambient light for displaying, without emitting light actively, producing no blue light. It is an ideal choice for people who have to use computer for quite a long time, and are troubled by dry eyes or eyestrain.
  • VGA is not available (there may be flickering or distortion caused by the VGA analog signal)
  • If your computer has no HDMI port, please feel free to contact us with a picture of the computer connector panel, so that we can recommend a proper adapter.

Resources & Services

Wiki: www.waveshare.com/wiki/EINK-DISP-97
Wiki: www.waveshare.com/wiki/EINK-DISP-103B
Wiki: www.waveshare.com/wiki/EINK-DISP-133


Shipping list

  1. EINK-DISP Monitor x1 10.3inch
  2. Mini HDMI to HDMI cable ~1.5m x1
  3. HDMI to Micro HDMI Adapter x1
  4. OPTION 5V 3A Power Adapter x1
  5. Package Box x1
  6. Leather Case x1
