1.47inch LCD Display Module, Rounded Corners, 172x320 Resolution, SPI Interface

  • 249 kr

1.47inch LCD Display Module, Rounded Corners, 172×320 Resolution, SPI Interface1.47inch LCD Display ModuleEmbedded ST7789V3 Driver, Using SPI BusComes with exam

I lager.
Lagersaldo: 4
Artikelnummer: 1181
Dela
  • Information

1.47inch LCD Display Module, Rounded Corners, 172×320 Resolution, SPI Interface

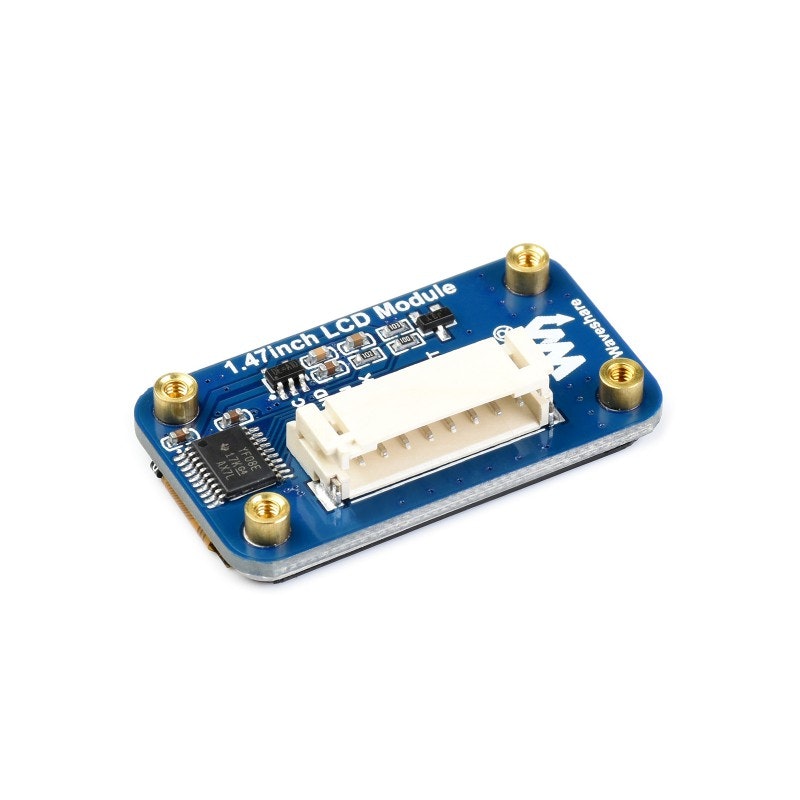

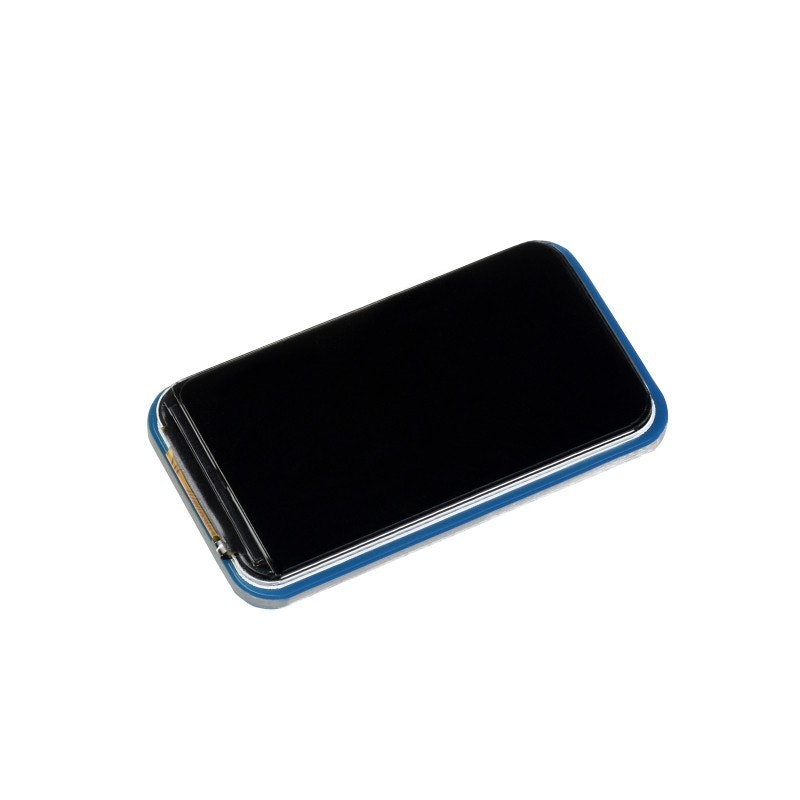

1.47inch LCD Display Module

Embedded ST7789V3 Driver, Using SPI Bus

Comes with examples for Raspberry Pi, Arduino, STM32, etc.




Size 1.47"



Resolution 172×320

Display Color 262K RGB



Interface SPI



Driver ST7789V3

Features At A Glance

  • 172×320 resolution, 262K RGB colors, clear and colorful displaying effect
  • SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
  • Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Specifications

OPERATING VOLTAGE
3.3V / 5V
RESOLUTION
172 × 320 pixels
COMMUNICATION INTERFACE
4-wire SPI
DISPLAY SIZE
17.39 × 32.35mm
DISPLAY PANEL
IPS
PIXEL PITCH
0.0337 × 0.1011mm
DRIVER
ST7789V3
DIMENSIONS
22.0 × 38.5mm

Controlled Via SPI Bus

Supports Controller Boards Like Raspberry Pi/Arduino/STM32

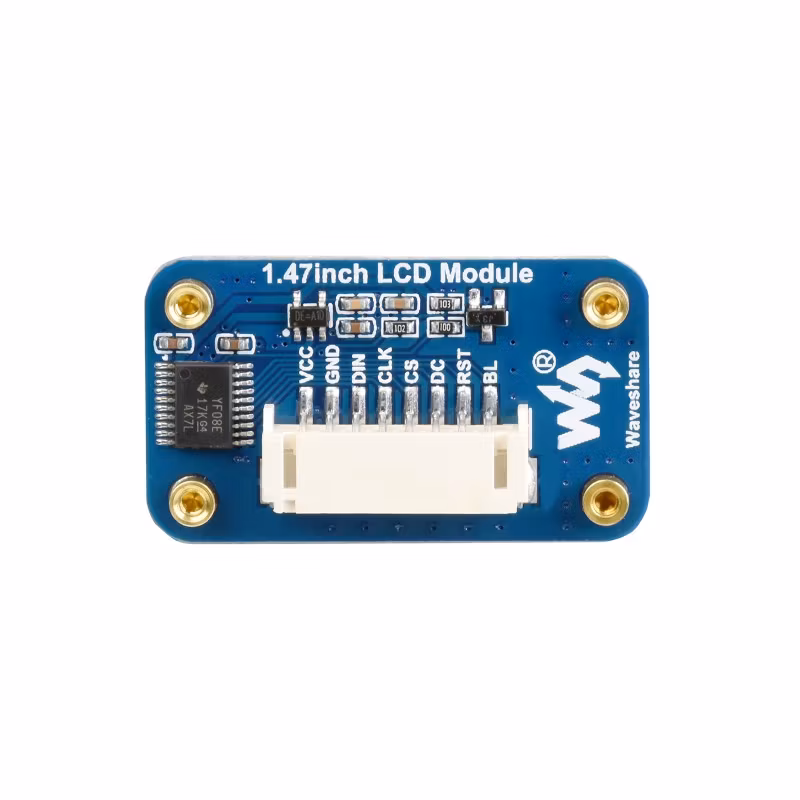

Hardware Connection

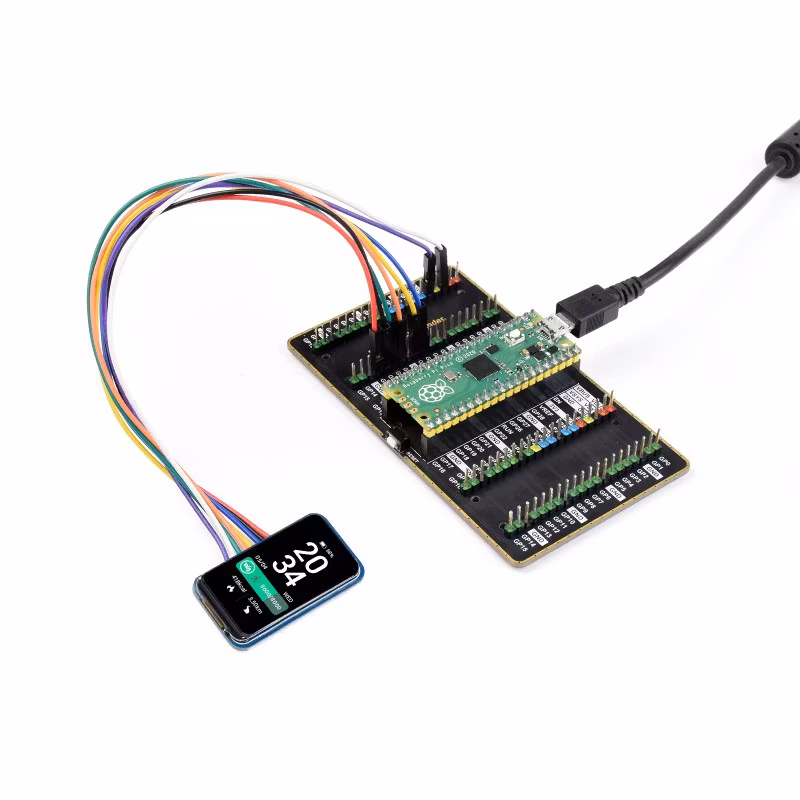

Connecting With Raspberry Pi

Connecting With Arduino Board

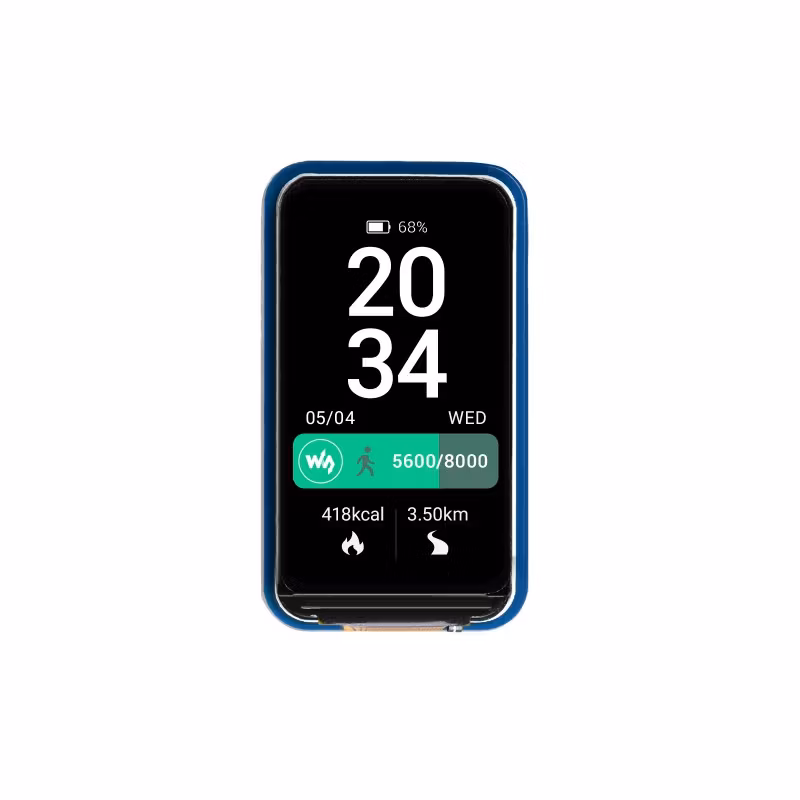

Usage Example

Outline Dimensions

Wiki: www.waveshare.com/wiki/1.47inch_LCD_Module

Shipping list

Weight: 0.012 kg

  1. 1.47inch LCD Module x1
  2. PH2.0 8PIN cable x1
