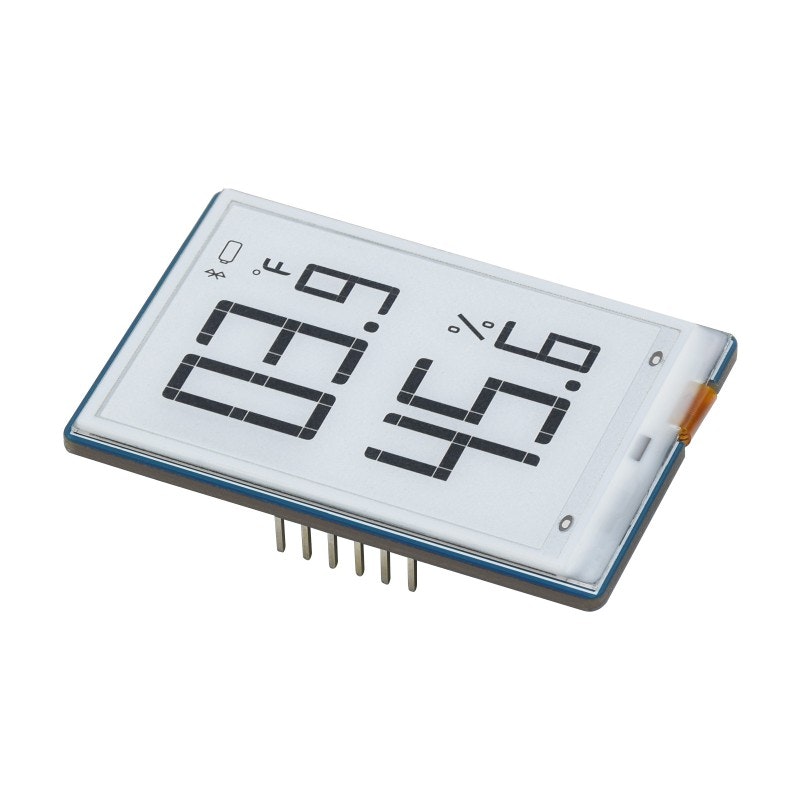

1.9inch Segment E-Paper Module Ideal for Temperature and humidity meter

  • 249 kr
  • 224 kr

1.9inch Segment E-Paper Module, 91 Segments, I2C Bus, Ideal for Temperature and humidity meter, Humidifier, Digital Meter.1.9″ Segment E-Paper ModuleSupport Par

I lager.
Lagersaldo: 1
Artikelnummer: 22689
Dela
  • Information

1.9inch Segment E-Paper Module, 91 Segments, I2C Bus, Ideal for Temperature and humidity meter, Humidifier, Digital Meter.

1.9″ Segment E-Paper Module

Support Partial Refresh, Low Power, Wide Viewing Angle, Paper-Like Displaying
Without Electricity

Ideal for Temperature and Humidity meter, Humidifier, Digital Meter...





Size 1.9″

Segment 91 segments

Viewing Angle >170°

Display Color Black/White

Grey Scale 2

Communication I2C

Display Panel E-paper

Experience Paper-like

Environment Ambient Light Required

Display Type Passively Reflective

Features At A Glance

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • I2C interface, for connecting with controller boards like Raspberry Pi/Arduino/STM32, etc.
  • Onboard MOS voltage translating circuit, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications

OPERATING VOLTAGE
3.3V/5V
GREY SCALE
2
INTERFACE
I2C
PARTIAL REFRESH TIME
0.3s
OUTLINE DIMENSIONS
51 × 34 mm
FULL REFRESH TIME
2s
DISPLAY SIZE
41.35 × 28.11 mm
REFRESH POWER
<5mW (typ.)
SEGMENTS
91
STANDBY CURRENT
<0.01uA (almost none)
DISPLAY COLOR
Black/White
VIEWING ANGLE
>170°

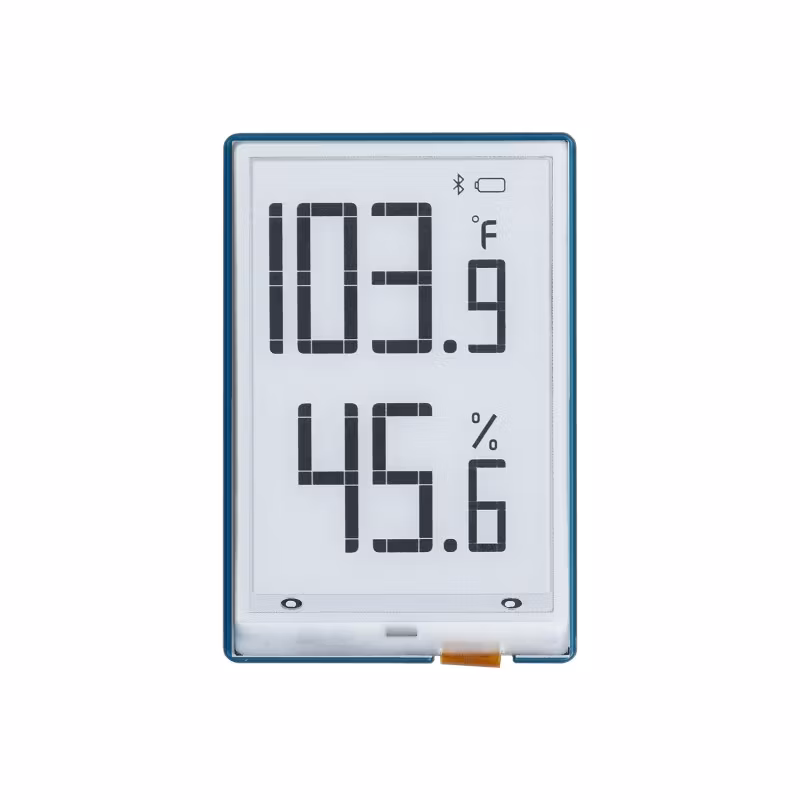

91 Segments Full Display

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

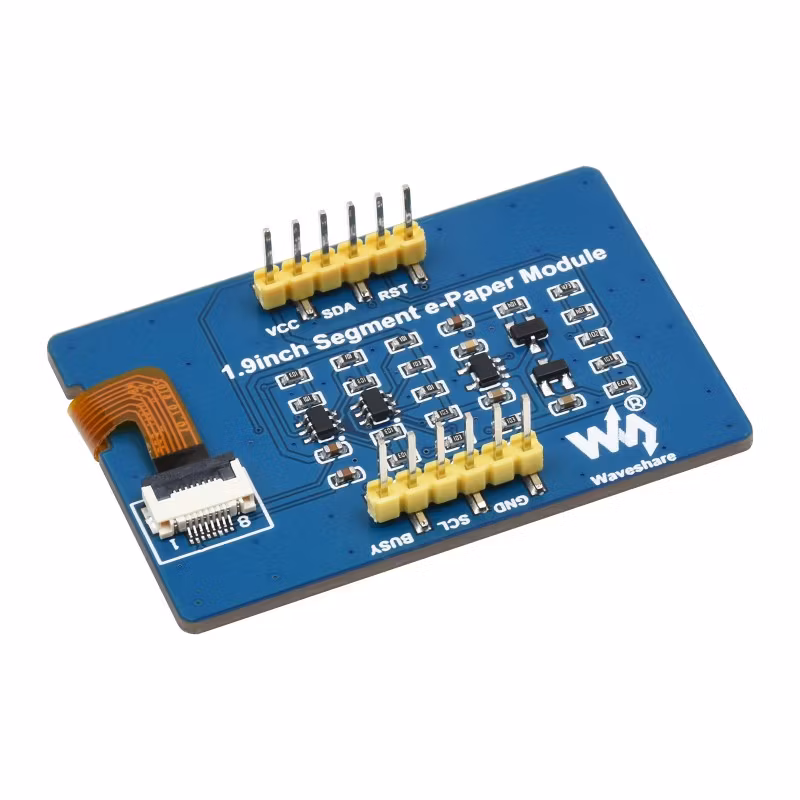

Onboard I2C Control Interface

For Use With Controller Boards Like Raspberry Pi/STM32/Arduino

VCC
Power (3.3V / 5V input)
GND
Ground
SDA
I2C data input
SCL
I2CI clock input
RST
External reset, low active
BUSY
Busy status output pin (high level means busy)

Application Examples

Suitable For Temperature And Humidity Meter, Humidifier, Digital Meter...

Outline Dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/1.9inch_Segment_e-Paper_Module
