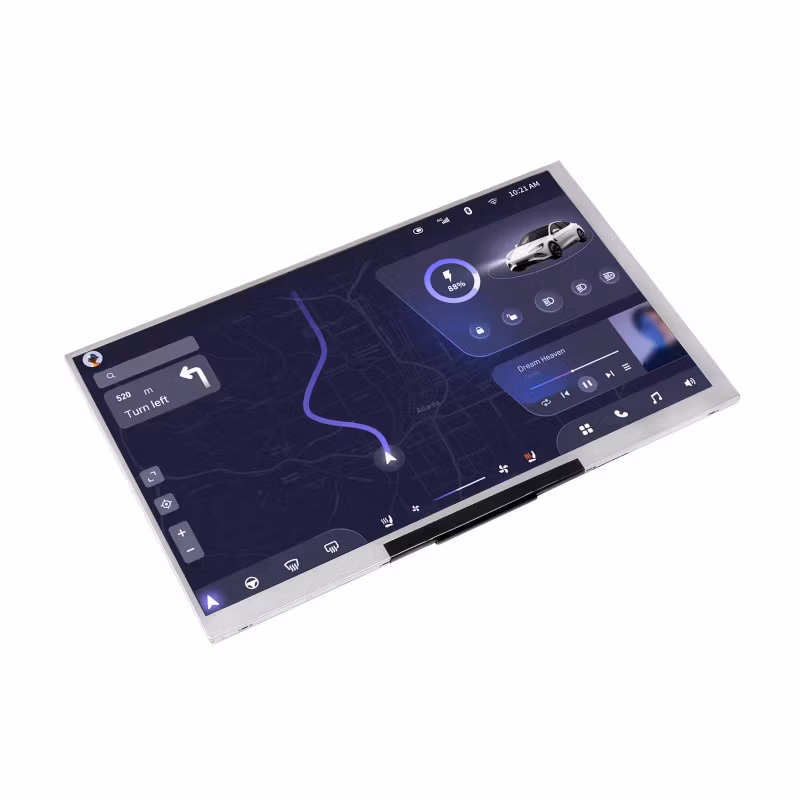

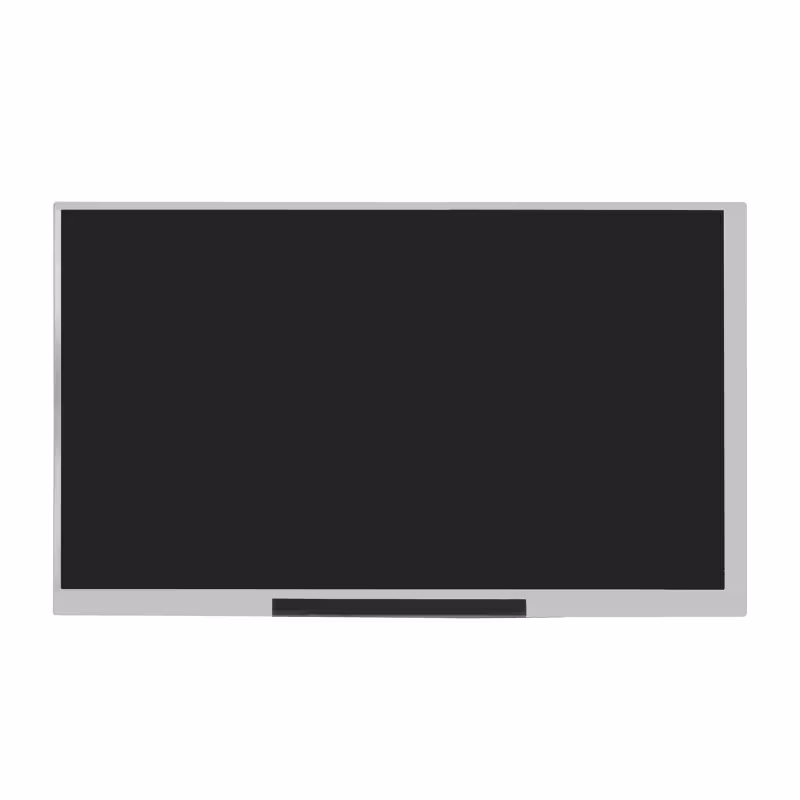

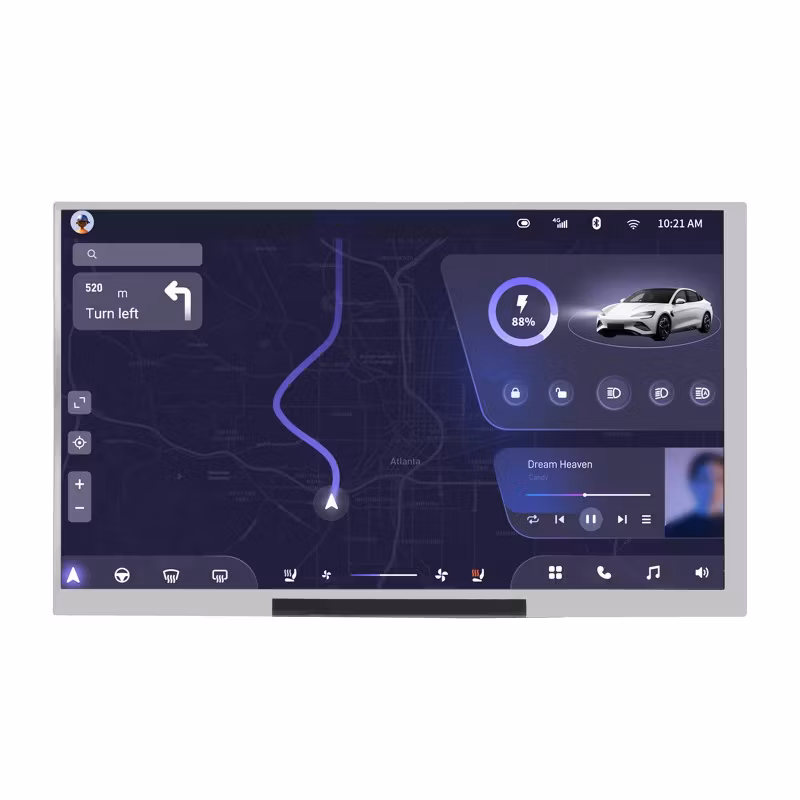

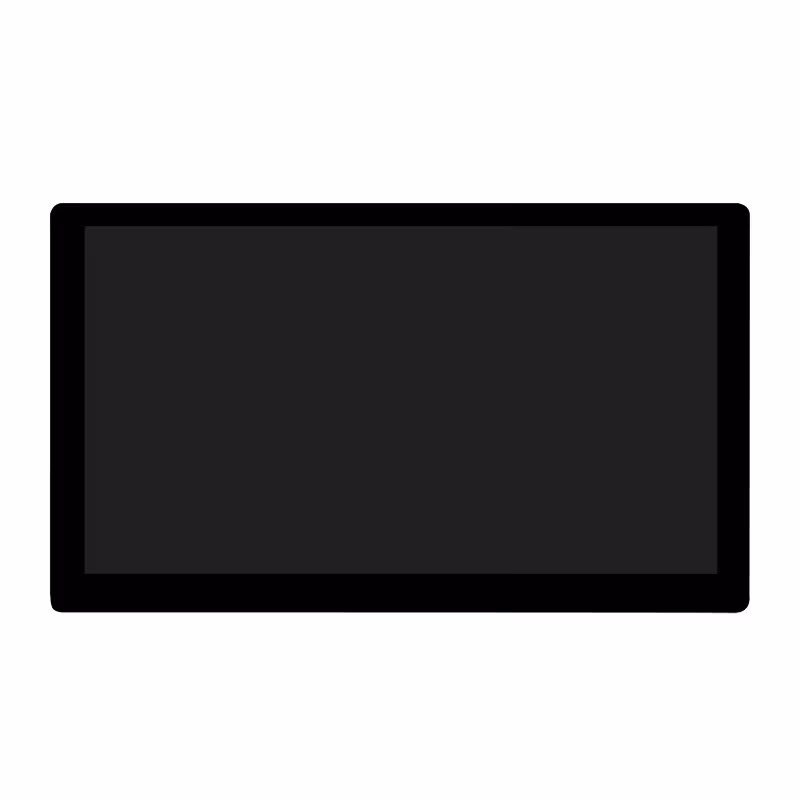

7inch QLED touch Integrated Display, 1024 × 600, Thin and Light Design

  • 1 099 kr

7inch IPS/QLED Integrated Display, 1024 × 600, Thin And Light Design. 7-Inch IPS/QLED Dispaly. Integrated Structure | Thin And Light Screen Design Size 7″R

I lager.
Lagersaldo: 1
Artikelnummer: 1204
Dela

7inch IPS/QLED Integrated Display, 1024 × 600, Thin And Light Design. 7-Inch IPS/QLED Dispaly. Integrated Structure | Thin And Light Screen Design



Size 7″

Resolution 1024×600

Display Panel IPS/QLED

Viewing Angle 170°

Touch Type Capacitive(optional)

Touch Points 5-Points(optional)

Consumption Low Power

Certification 1 RoHS2.0

Certification 2 CE

Device & System Support

Support Windows / Linux / Android Main Board Which Has HDMI Signal And USB Touch Signal



Used with development adapter, support the following devices:

All versions of Raspberry Pi
Jetson Nano
Windows PC


Comparing The Appearance

Optional Development Adapter



Integrated Structure Design

Provide Secondary Development Resources To Facilitate Integrated Design
Boost Simple Development For Embedding Engineering Applications Quickly

Thinner And More Space Saving

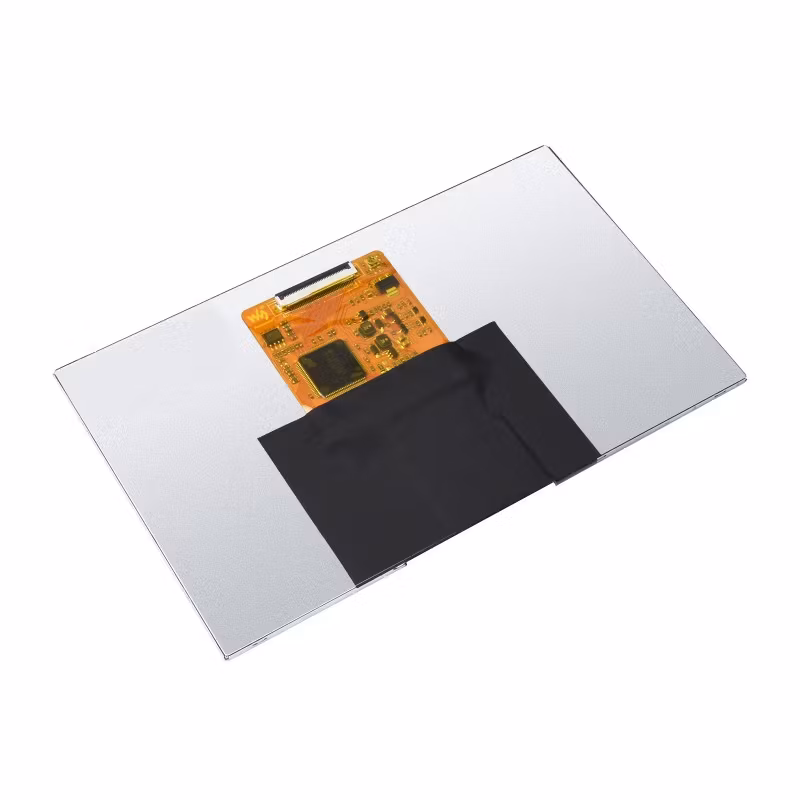

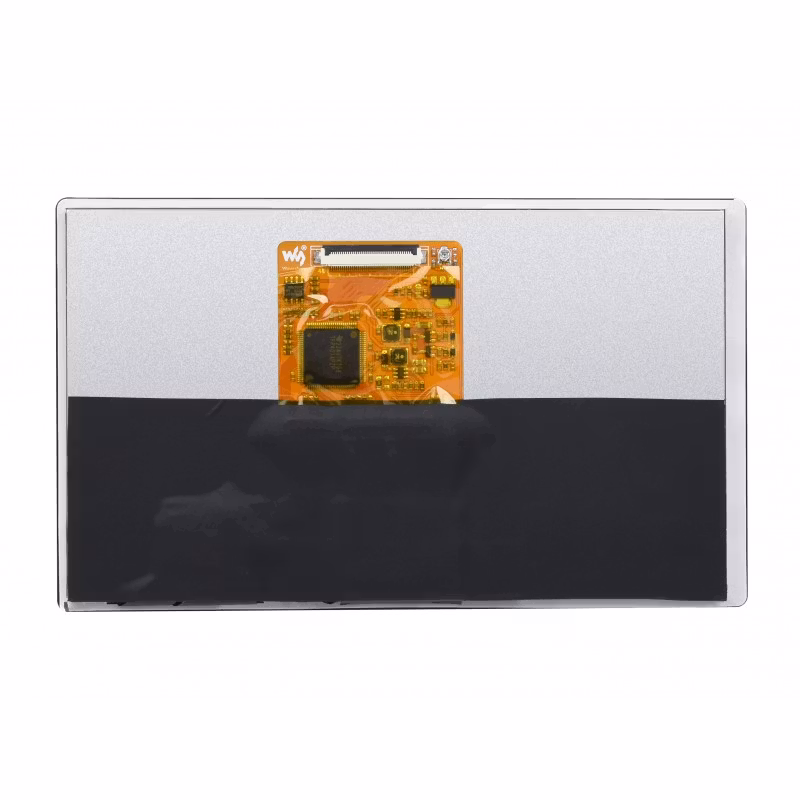

Different with the conventional connection method, integrate 40PIN multi-function interface for one-cable communication. Integrate the driver circuit into an FPC cable, the thinnest only needs 3mm thickness space

170° Wide Viewing Angle

QLED Quantum Dot Technology

Wider Color Gamut

Color Gamut Of This QLED Display Is Up To: NTSC 78%, SRGB 92%

* This function is only available on the QLED version

More Pure Chroma

Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid

* This function is only available on the QLED version

Longer Lifetime

Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

* This function is only available on the QLED version

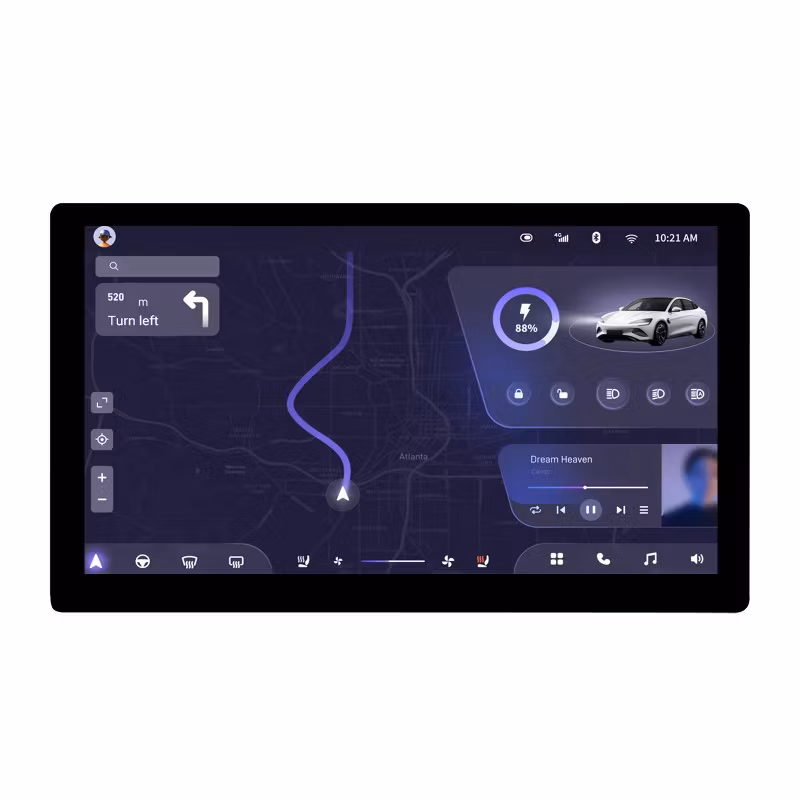

5-Point Capacitive Touch

Gently Touch, And See What You Get, Enjoy Multi-Point UI Interaction Via Flexible Operation
Adapting Touch Function With USB Signal, Support 5-Point Touch

* This function is only available on the Touch Display version

Connection Example

For the first use, it is recommended to use development adapter for connection

* for reference, Raspberry Pi board is NOT included.

Interface Introduction

Application Scenarios

New Energy, Electronic Sentinel, Human-Machine Interface, Smart Home
IoT, Industrial Applications, Consumer Electronics

Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/70H-1024600

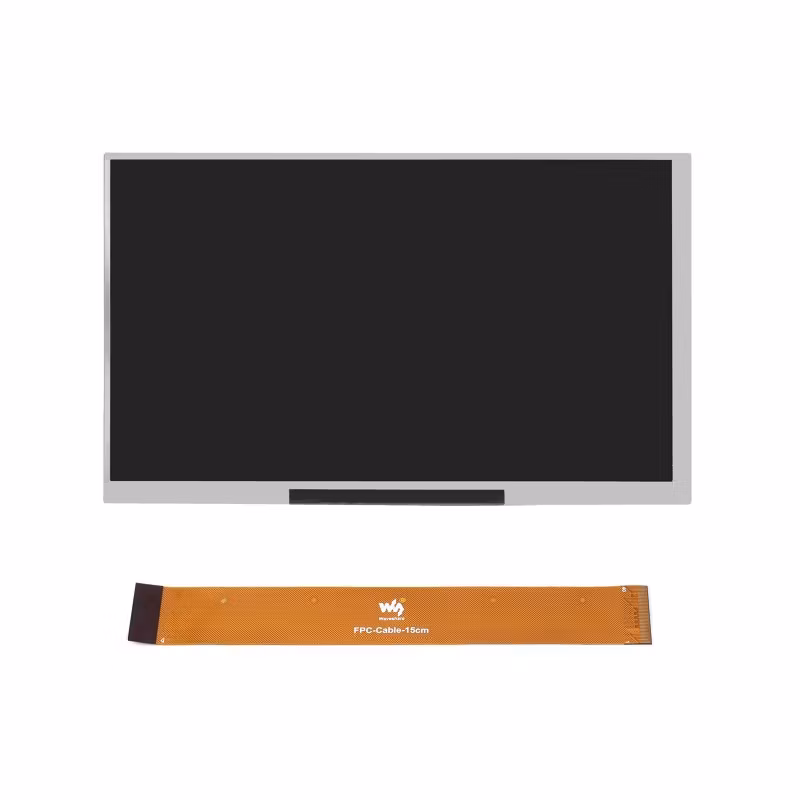

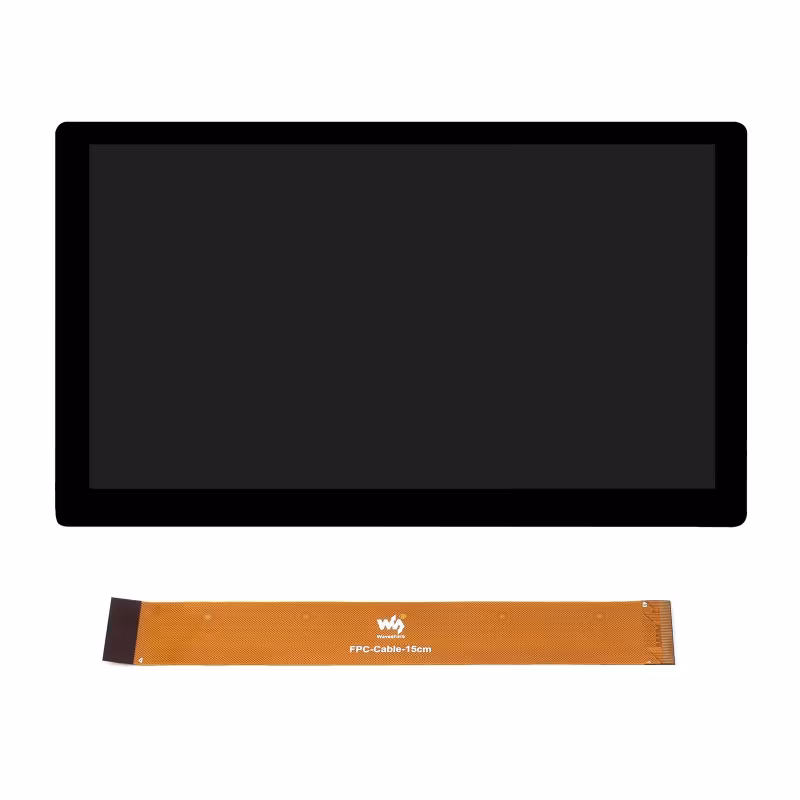

Shipping list

70H-1024600 IPS/QLED Touch Display

  1.  QLED Touch Display x1
  2. FPC cable (~ 15cm) x1
  3.  Development Accessories
