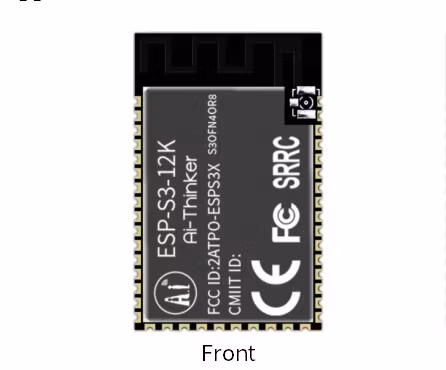

Ai-Thinker ESP-S3-12K Wi-Fi+BLE Module

ESP-S3-12 is a Wi-Fi+BLE module developed by Shenzhen Ai-Thinker Technology Co., LTD.The core processor chip ESP32-S3 is a highly integrated, low-power Wi-Fi and Bluetooth system-on-chip (SoC),designed for Internet of Things (IoT), mobile devices, wearable electronics, smart home and other applications.

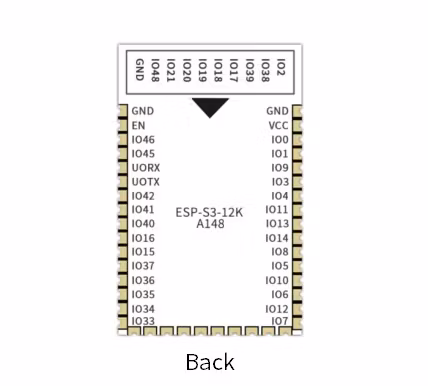

ESP-S3-12K module provides a variety of peripheral interfaces, including UART, PWM, SPI, I2S, I2C, ADC, LCD, DVP,RMT(TX/RX), pulse counter,USB OTG，USB Serial/JTAG，SDIO，DMA controller, TWAI controller, temperature sensor, capacitive sensor and up to 38 IO ports.

ESP-S3-12K module has a variety of unique hardware security mechanisms. Hardware encryption accelerator supports AES, SHA and RSA algorithms.The RNG, HMAC and Digital Signature modules provide more security features. Other security features include Flash encryption and secure boot signature verification. The perfect security mechanism enables the chip to be perfectly applied to various encryption products.

Specification
