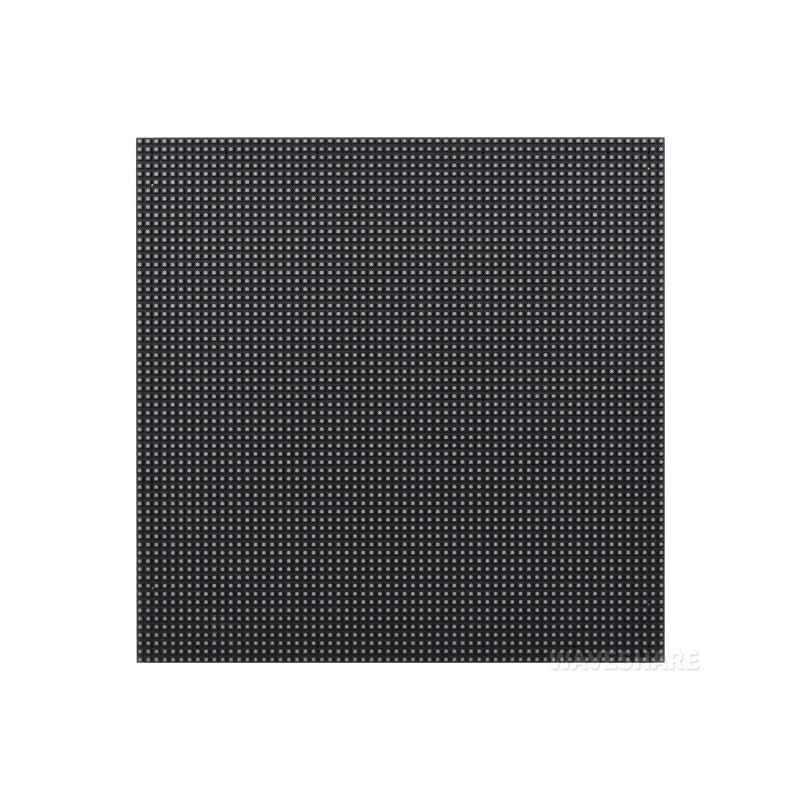

RGB Full-Color LED Matrix Panel, 3mm Pitch, 64×64 Pixels, Adjustable Brightness

  • 399 kr

RGB Full-Color LED Matrix Panel, 3mm Pitch, 64×64 Pixels, Adjustable Brightness64×64 RGB LED Matrix Panel, 4096 Individual RGB LEDs, 3mm Pitch Supports Raspberr

I lager.
Lagersaldo: 2
Artikelnummer: 1180
Dela

RGB Full-Color LED Matrix Panel, 3mm Pitch, 64×64 Pixels, Adjustable Brightness

64×64 RGB LED Matrix Panel, 4096 Individual RGB LEDs, 3mm Pitch Supports Raspberry Pi And Arduino...

Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header



Features At A Glance

By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?

  • 4096 individual RGB LEDs, full-color display, adjustable brightness

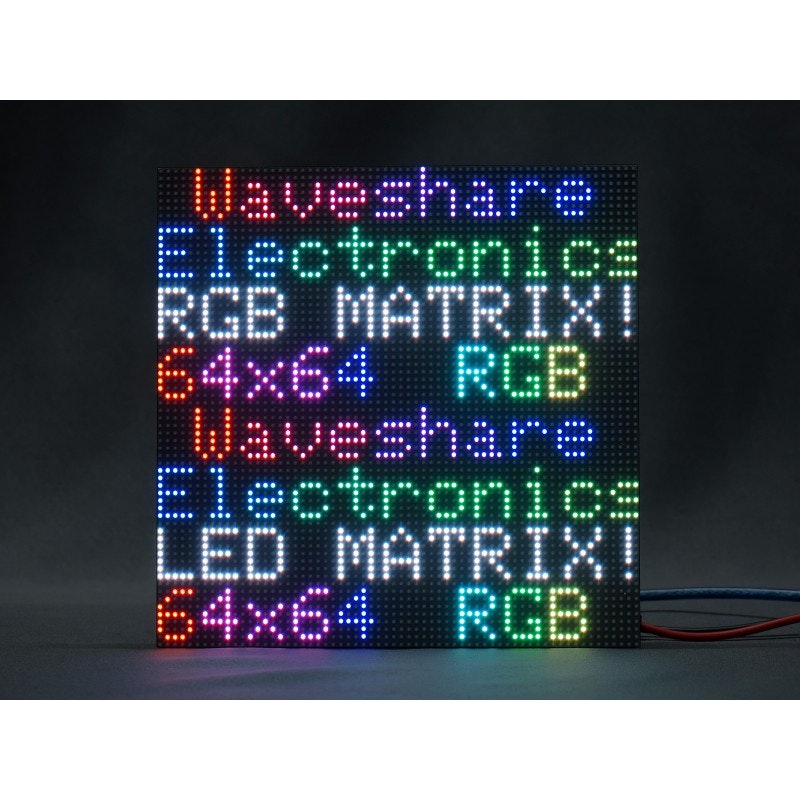

  • 64×64 pixels, 3mm pitch, allows displaying text, colorful image, or animation
  • 192×192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

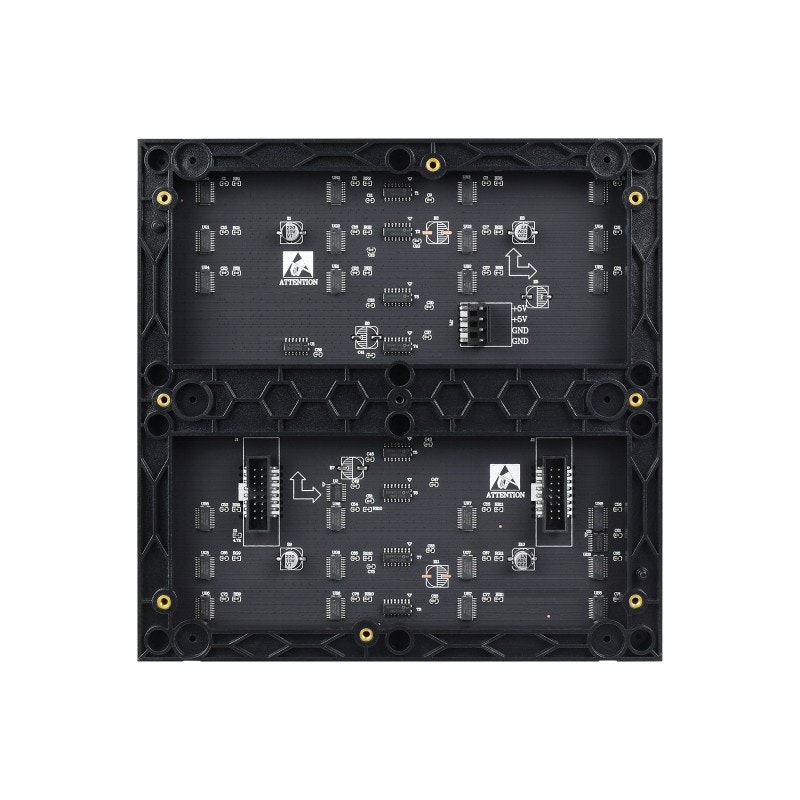

  • Onboard two HUB75 header, one for controller data input, one for output, chain support
  • Provides open source development resources and tutorials, for use with Raspberry Pi, Arduino, and so on

Specifications

DIMENSIONS192mm × 192mm
PIXELS64×64=4096 DOTS
PITCH3mm
PIXEL FORM1R1G1B
VIEWING ANGLE≥160°
CONTROL TYPEsynchronization
DRIVING1/32 scan
HEADERHUB75
POWER SUPPLY5V / 4A (VH4 header input)
POWER≤20W

Header Definition

PINDESCRIPTIONPINDESCRIPTION
+5V5V power inputGNDGround
R1R higher bit dataR2R lower bit data
G1G higher bit dataG2G lower bit data
B1B higher bit dataB2B lower bit data
AA line selectionBB line selection
CC line selectionDD line selection
EE line selectionCLKclock input
LAT/STBlatch pinOEoutput enable

Chainable Design

Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header

Each RGB LED matrix panel requires a standalone 5V/4A or above power supply, when they're chained to display.

Usage Scenarios

DIY Maker Desktop Or Wall Mount Display, Signboard, Environment Monitor...

Dimensions

Resources & Services

WIKI: RGB-Matrix-P3-64x64

Shipping list

Weight: 0.278 kg

  1. RGB-Matrix-P3-64x64 LED matrix and accessories x1
  2. Power supply terminal adapter x1
  3. 16P wire ~30cm x1

It is recommended to used with a 5V 4A power supply
