Arducam 12MP USB Camera Bundle

  • 3 449 kr

Arducam High Quality Complete USB Camera Bundle, 12MP 1/2.3 Inch 477P Camera Module with 2.8-12mm Varifocal Lens C20280M12, Metal Enclosure, Tripod and USB Cabl

I lager.
Artikelnummer: B0288
Dela
  • Information

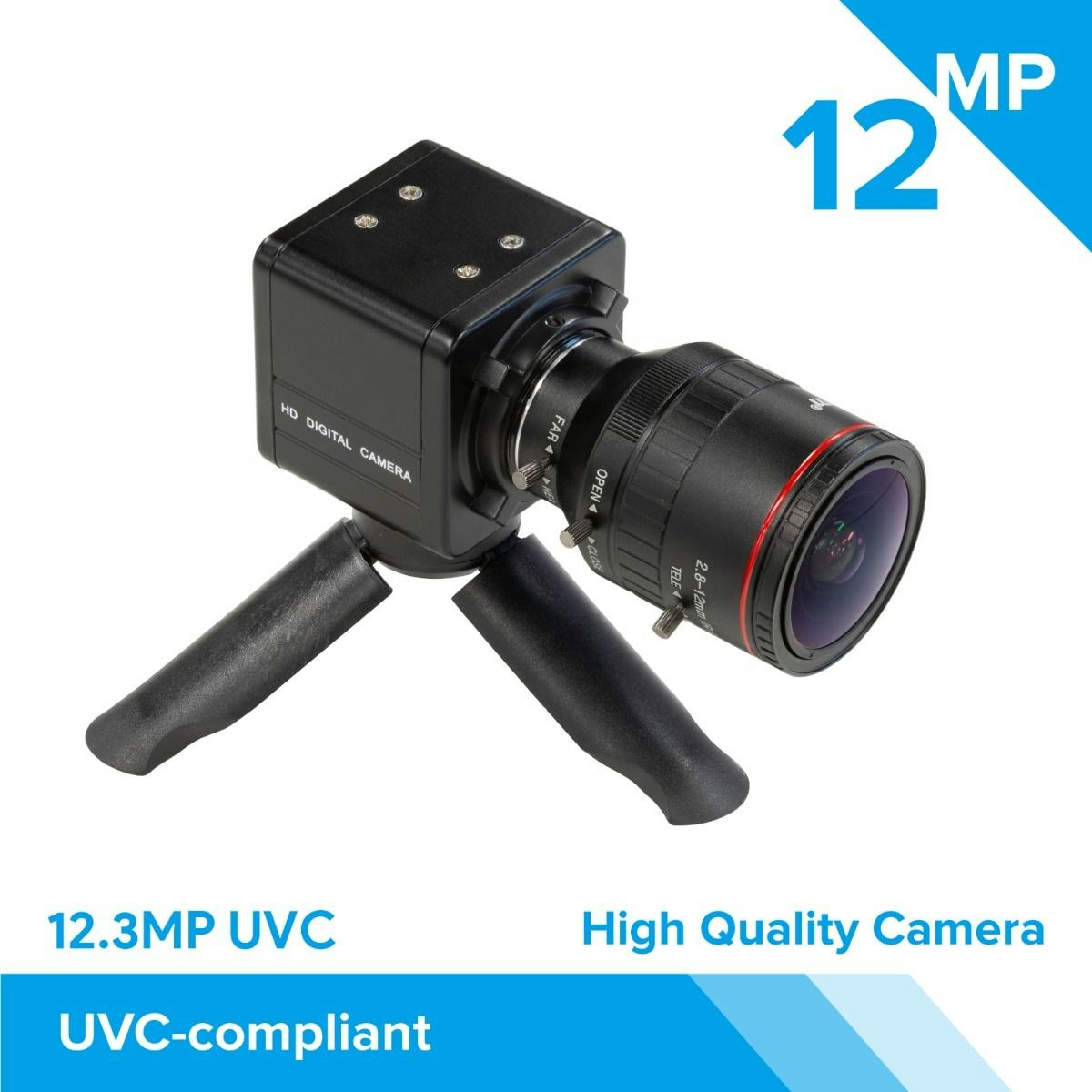

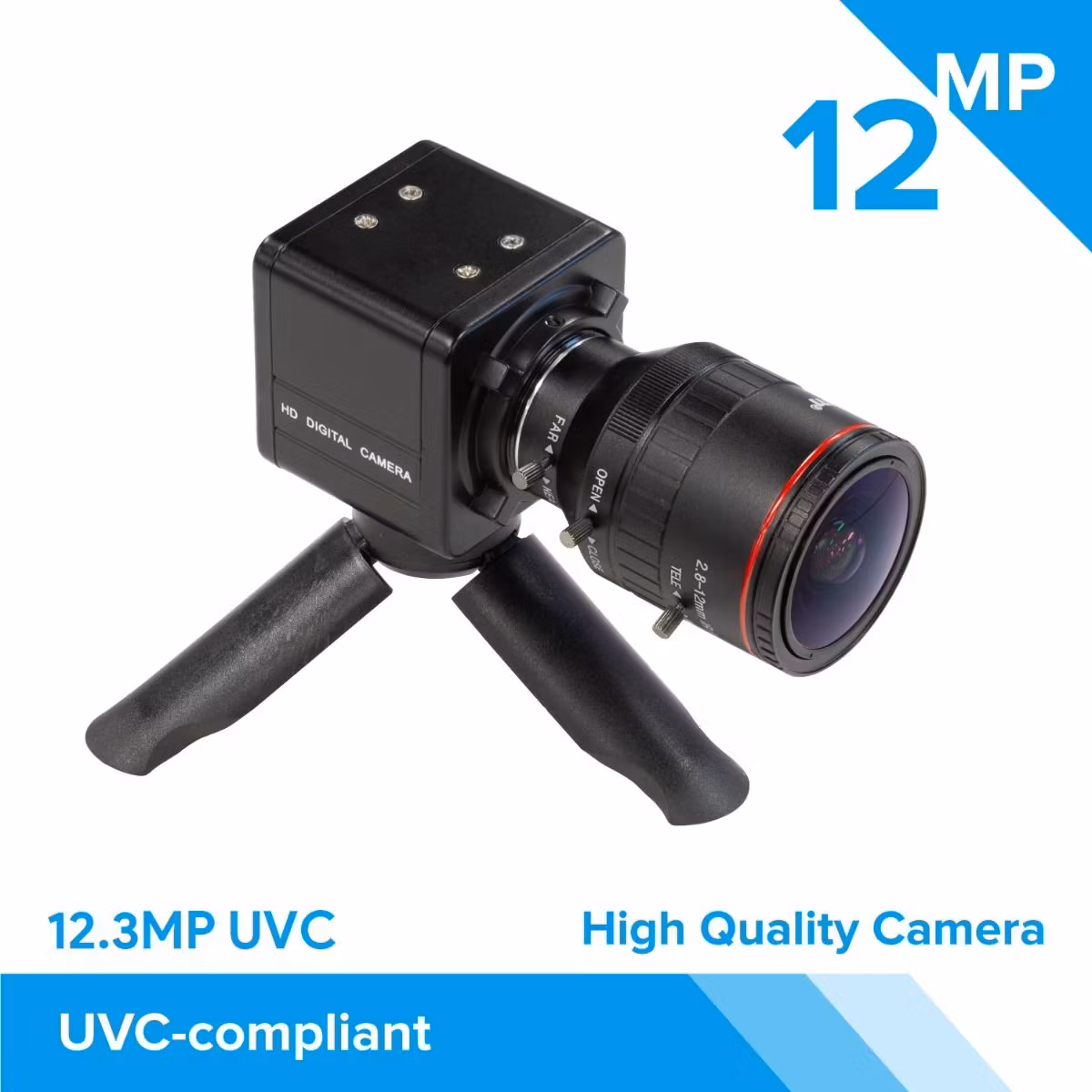

Arducam High Quality Complete USB Camera Bundle, 12MP 1/2.3 Inch 477P Camera Module with 2.8-12mm Varifocal Lens C20280M12, Metal Enclosure, Tripod and USB Cable.

The Arducam B0288 is the ideal solution for applications requiring high-quality imaging and flexibility. Whether for industrial inspection, research, or creative projects, this camera delivers reliable performance with a user-friendly setup.

Arducam has been a professional designer and manufacturer of SPI, MIPI, DVP, and USB cameras since 2012. We also offer customized turnkey design and manufacturing solution services for customers who want their products to be unique.

Arducam B0288 is a new member of Arducam’s USB camera family. It’s a 12MP, based on the 1/2.3″ Sony 12MP image sensor, UVC compliant, 2.8-12mm USB 2.0 camera with a metal shell.

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

You can choose lenses here

Features & Specs

Camera

  • Optical Format: 1/2.3”
  • Resolution: 4032(H) x 3040(V) 12.3MP
  • Data Format: MJPG
  • Frame Rate: 4032×3040@10fps; 3840×2160@20fps; 2592×1944@30fps; 2560×1440@30fps; 1920×1080@60fps; 1600×1200@50fps; 1280×960@100fps; 1280×760@100fps; 640×480@80fps

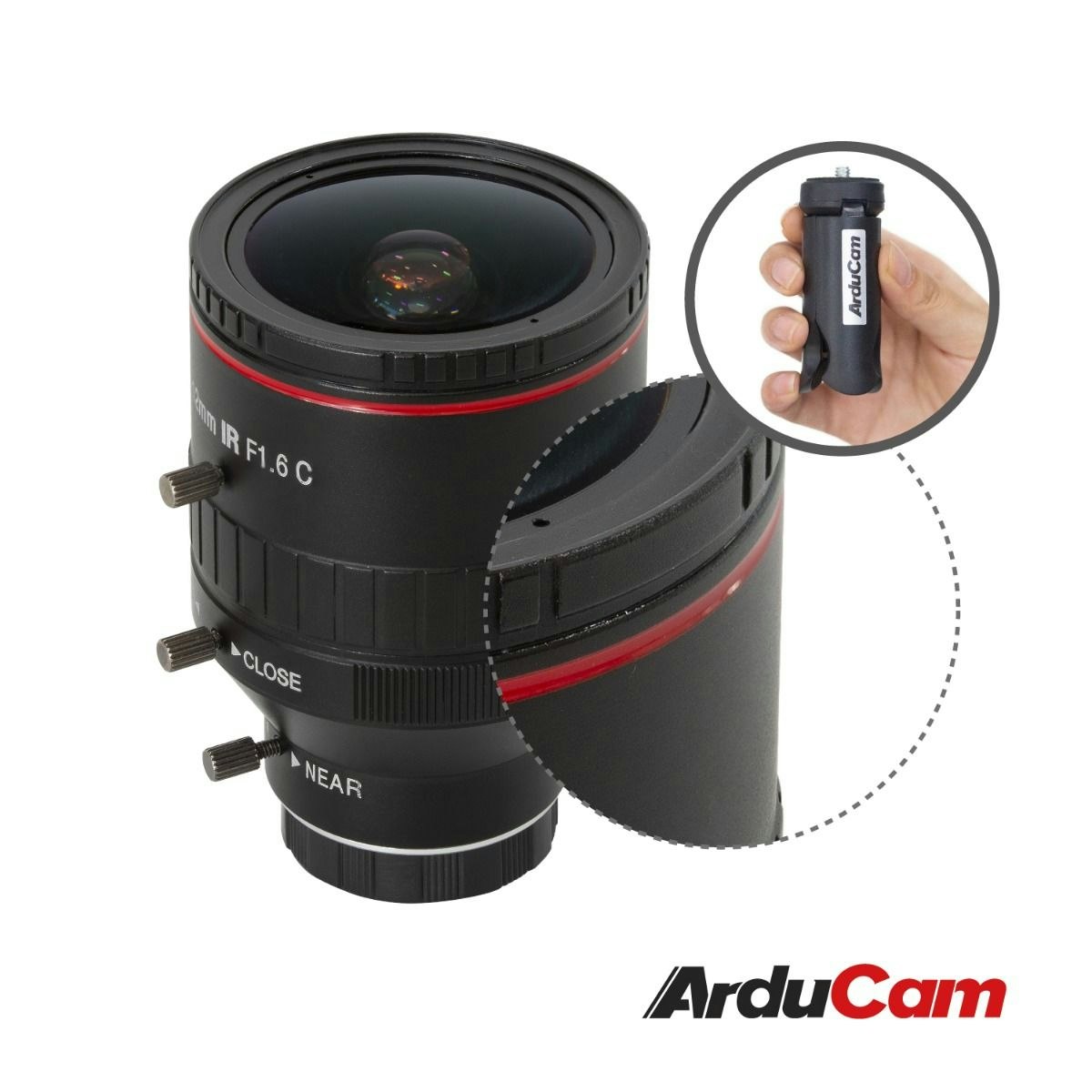

Lens

  • Field of View (FOV): 120°(H)-38°(H) on 1/2.3″ Camera
  • Lens Mount: C

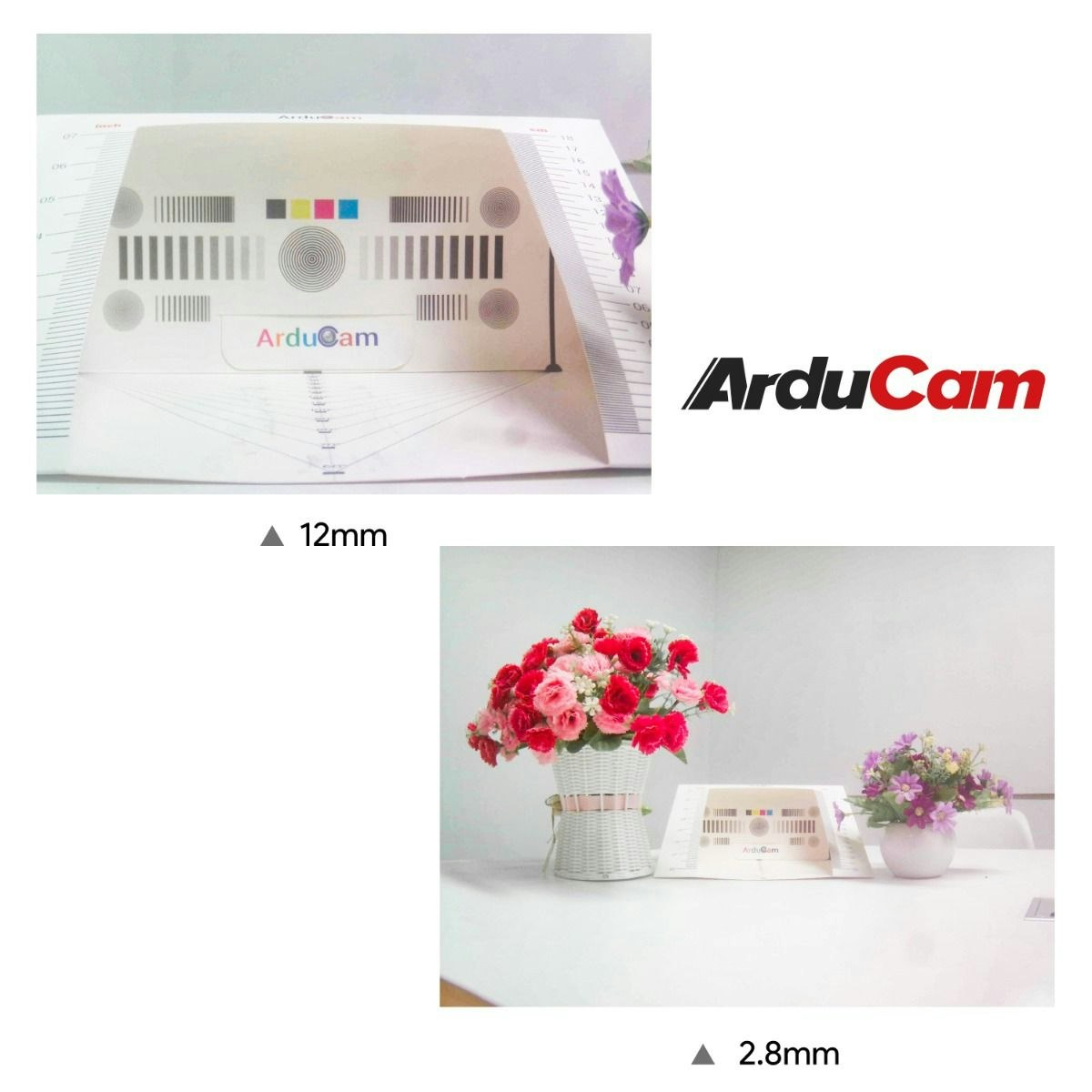

  • Focal Length:2.8-12mm
  • Aperture: F1:1.6
  • MOD: 0.3m
  • Focus Type: Manual

Functionality and Compatibility

  • Auto-Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
  • System Compatibility: Windows, Linux, Mac, and Android with UVC

Power

  • Power Supply: USB-powered 5V
  • Working Current: MAX 200mA

Physical

  • Operating Temp.: -4°F~158°F (-20°C~+70°C).
  • Dimension: 50mmx50mmx120mm
  • Cable Length: default 6.56ft (2M)

Documentation

Applications

  • Video conference
  • Home video surveillance system
  • Live streaming
  • Record lessons and conference

Package Including

  • 1 × 12MP 2.8-12mm varifocal USB 2.0 camera with full metal shell

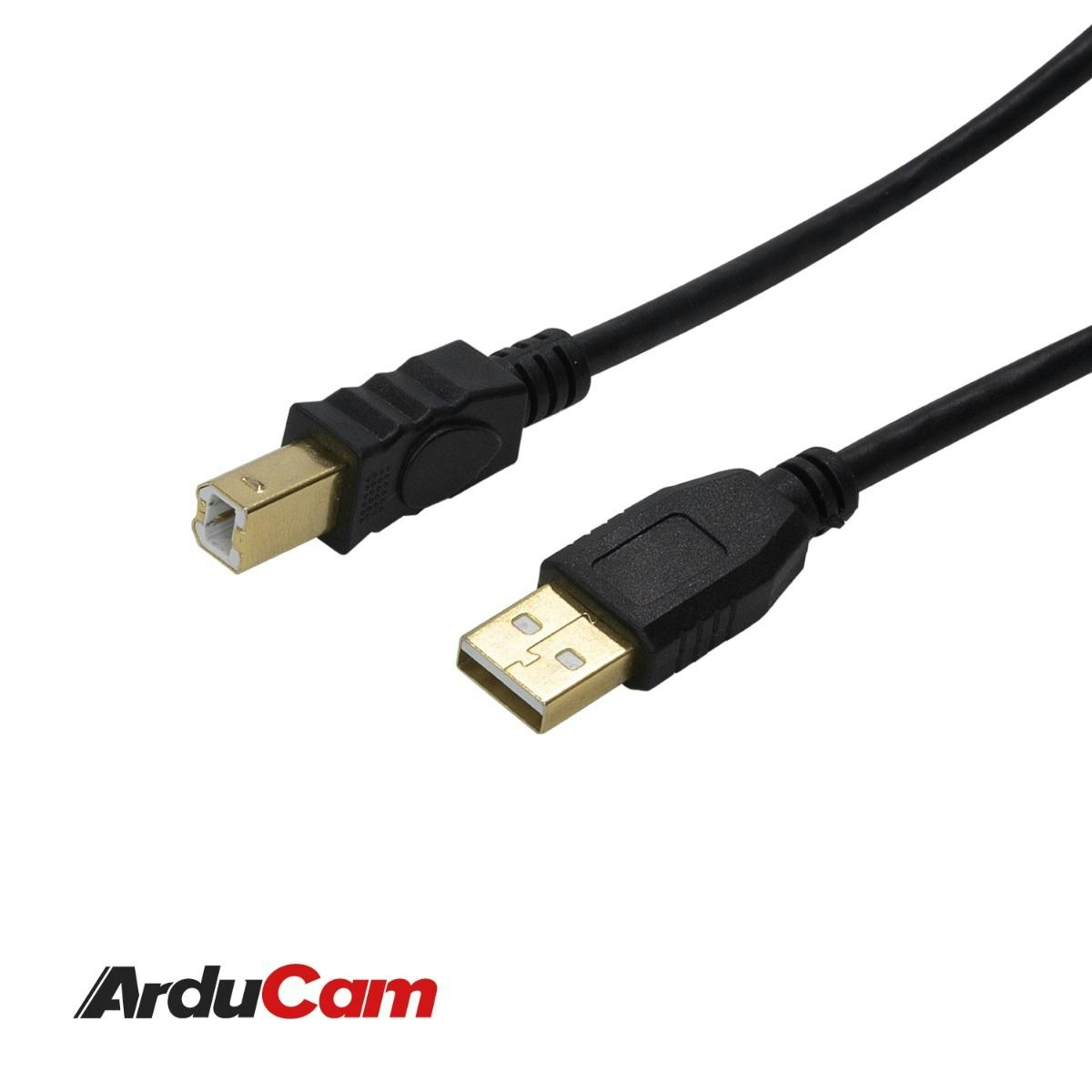

  • 1 × 6.56ft (2M) USB 2.0 cable
  • 1 pcs mini tripod stand
