Arducam 16MP Autofocus USB Camera for Computer with Microphone, 4K video Webcam

Arducam 16MP Autofocus USB Camera for Computer with Microphone, 1/2.8" IMX298 Mini UVC USB2.0 4K Video Webcam, with 3.3ft/1m Cable for Windows, Linux, Android and Mac OS.

Arducam B0290 is a new member of the Arducam's USB camera family. It's a 16MP, based on the 1/2.8" IMX298 image sensor, UVC compliant, autofocus USB 2.0 camera.

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

This 16MP IMX298 high resolution color COMS sensor and the autofocus feature make it can be widely used in the home surveillance system, monitoring 3D Printer, object recognition and tracking, or other machine vision application.

Features

• High Quality Imaging: This small camera module adopts 16MP IMX298 sensor for sharp image and accurate color reproduction, still picture resolution: 4656 x 3496 Max.
• Autofocus: Shoot objects in millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.
• Frame Rates: MJPG 10fps@4656x3496/4160x3120/3264x2448/2592x1944; 30fps@2320x1744/1080P/720; YUY2 10fps@1024x768/800x600/640x480

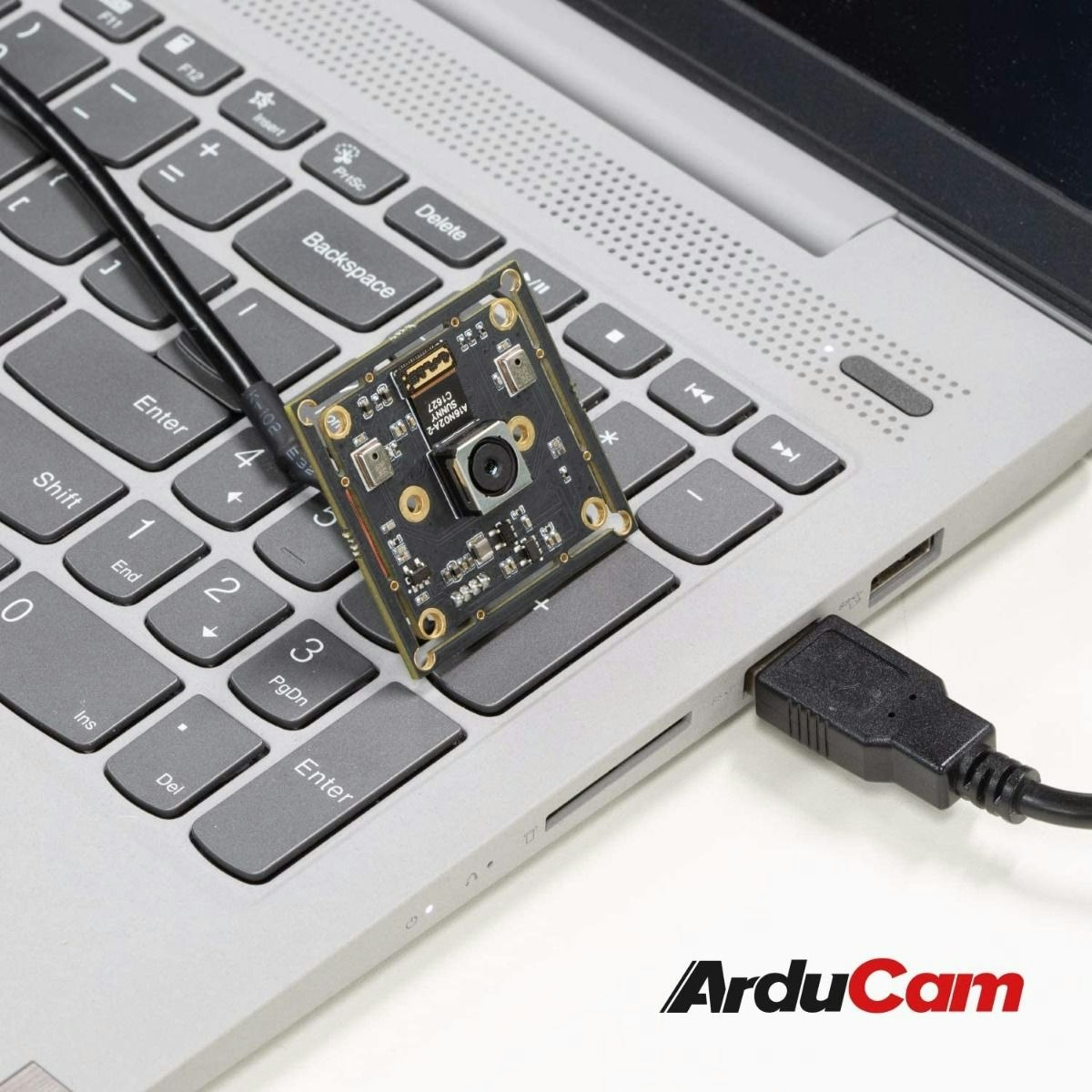

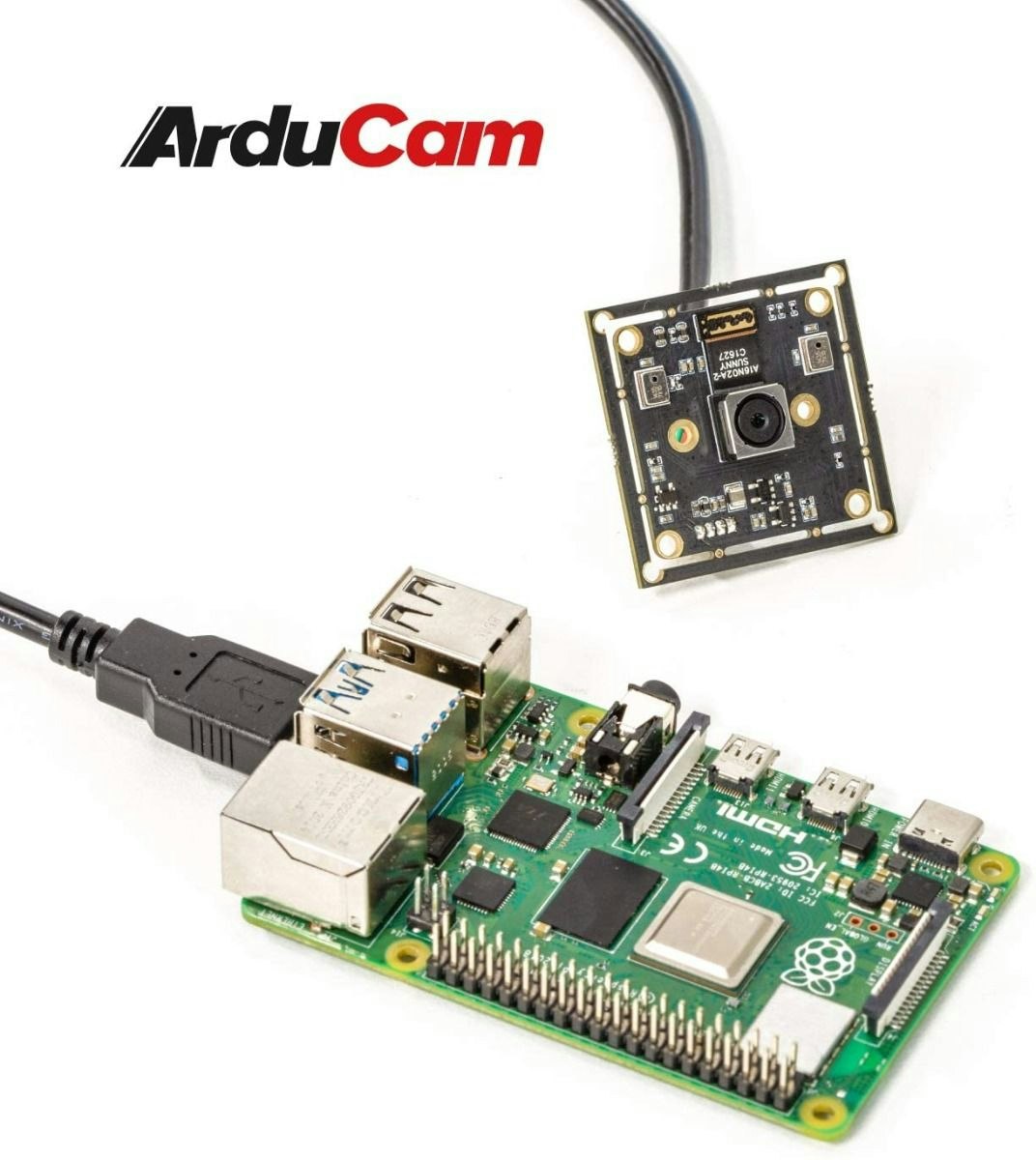

• Plug&Play: UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed.

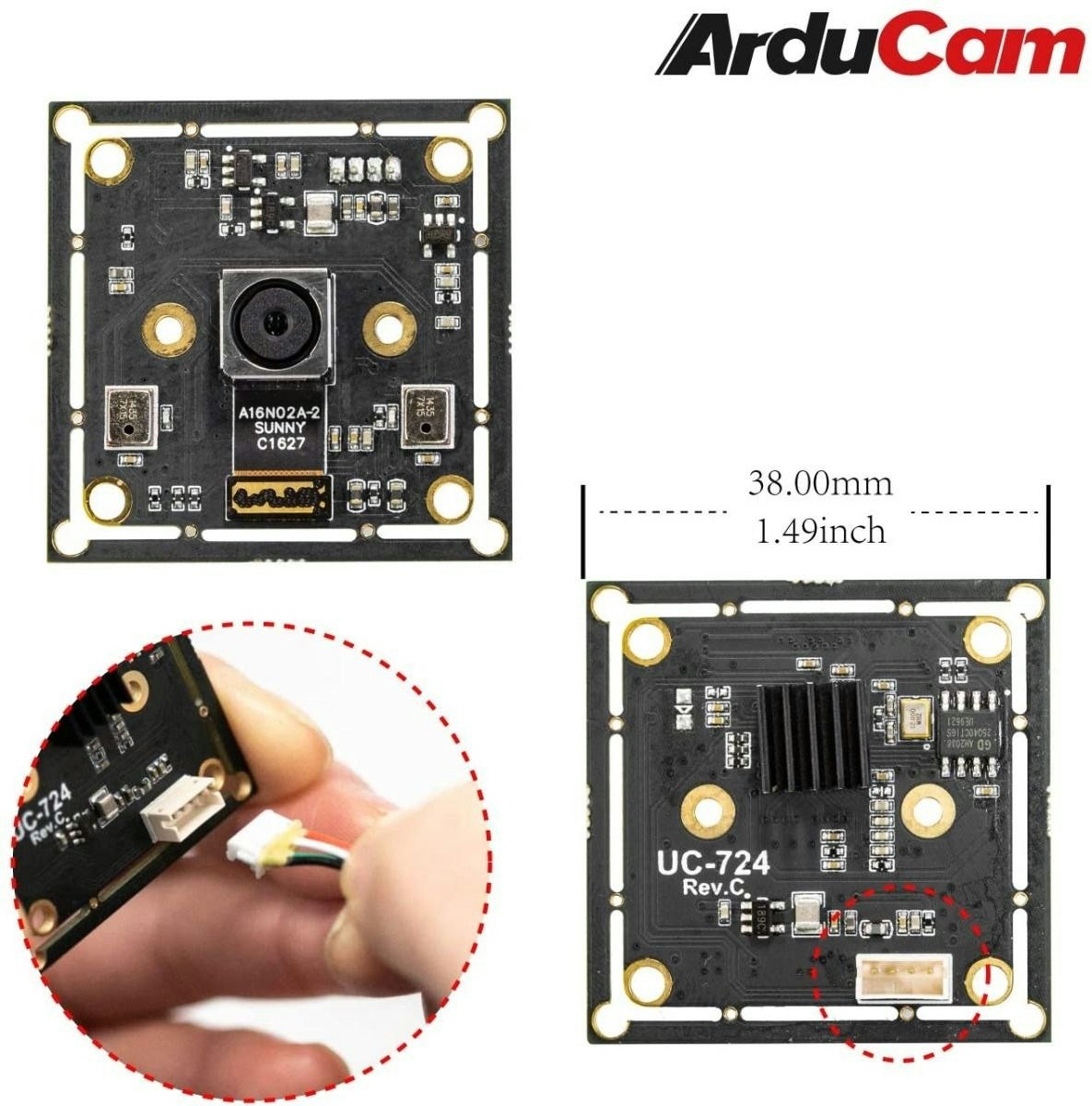

• Applications: This small 38mmx38mm camera board is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, or other machine vision applications which demand high resolution.

Specification

Camera

• Sensor: 1/2.8” IMX298
• Resolution: 16MP 4656H x 3496V
• Data Format: MJPG/YUY2
• Frame Rate:

           MJPG 10fps@4656x3496/4160x3120/3264x2448/2592x1944; 30fps@2320x1744/1080P/720;
         YUY2 10fps@1024x768/800x600/640x480

Lens

• Field of View (FOV)：H= 60°
• Focusing Range: 100mm to infinity
• IR Sensitivity: Integral IR filter, visible light only

Functionality and Compatibility

• Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
• System Compatibility: Windows, Linux, and Mac with UVC

Power

• Power Supply: DC 5V
• Working Current: MAX 200mA

Physical

• Operating Temp.: -4°F~158°F (-20°C~+70°C)
• Dimension: 38mmx38mm
• Cable Length: 3.3ft (1M)

Documentation

Datasheet

Manual
