CAN Bus Module for Raspberry Pi Pico, UART to CAN conversion

  • 335 kr

CAN Bus Module For Raspberry Pi Pico, Enabling Long Range Communication Through UART.CAN Bus Module For PicoEnabling Reliable Long Range Communication For Raspb

Produkten är tyvärr slut i lager. :(

Artikelnummer: 1160
Dela
  • Information

CAN Bus Module For Raspberry Pi Pico, Enabling Long Range Communication Through UART.

CAN Bus Module For Pico

Enabling Reliable Long Range Communication For Raspberry Pi Pico

Features At A Glance

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
  • Incorporates E810-TTL-CAN01 module, UART to CAN bus conversion
  • Three conversion methods: transparent conversion, transparent conversion with identification, and protocol mode conversion
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

OPERATING VOLTAGE3.3VCAN TRANSCEIVERE810-TTL-CAN01
COMMUNICATION BUSUARTBAUDRATE300~921600bps

Raspberry Pi Pico Header Compatibility

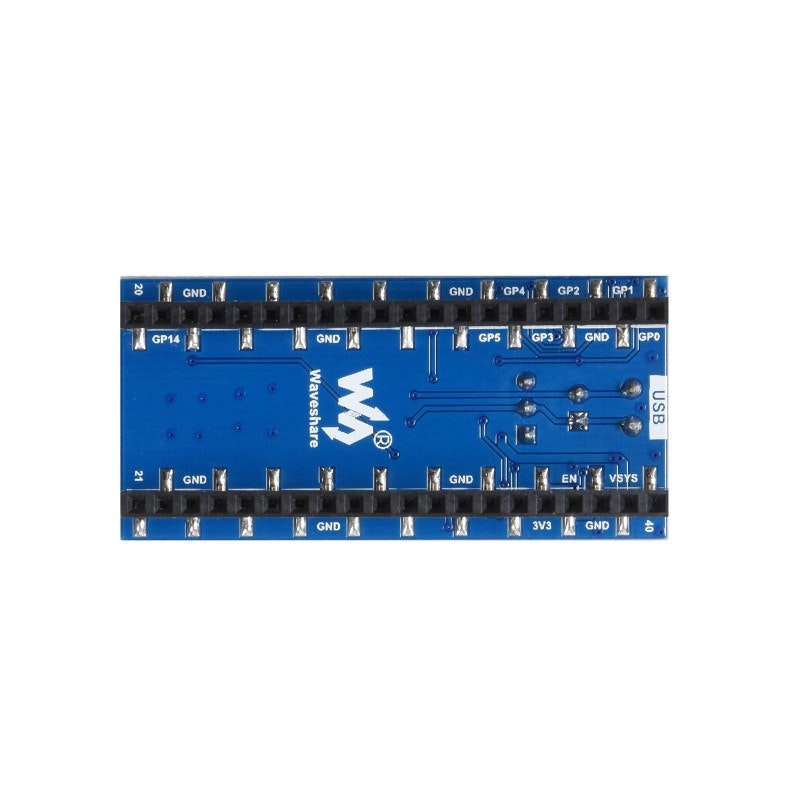

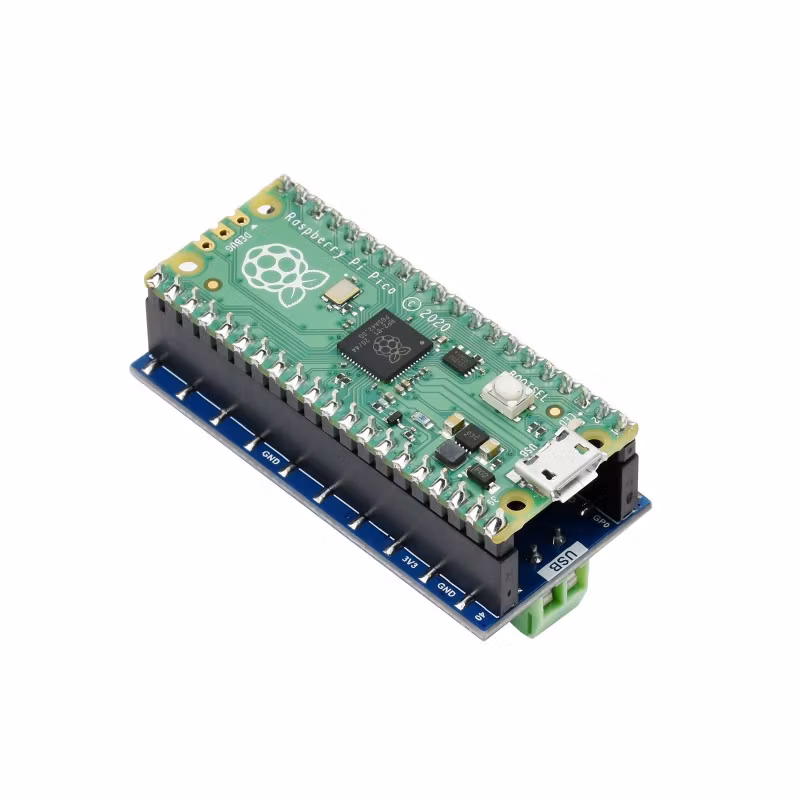

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Raspberry Pi Pico is NOT included.

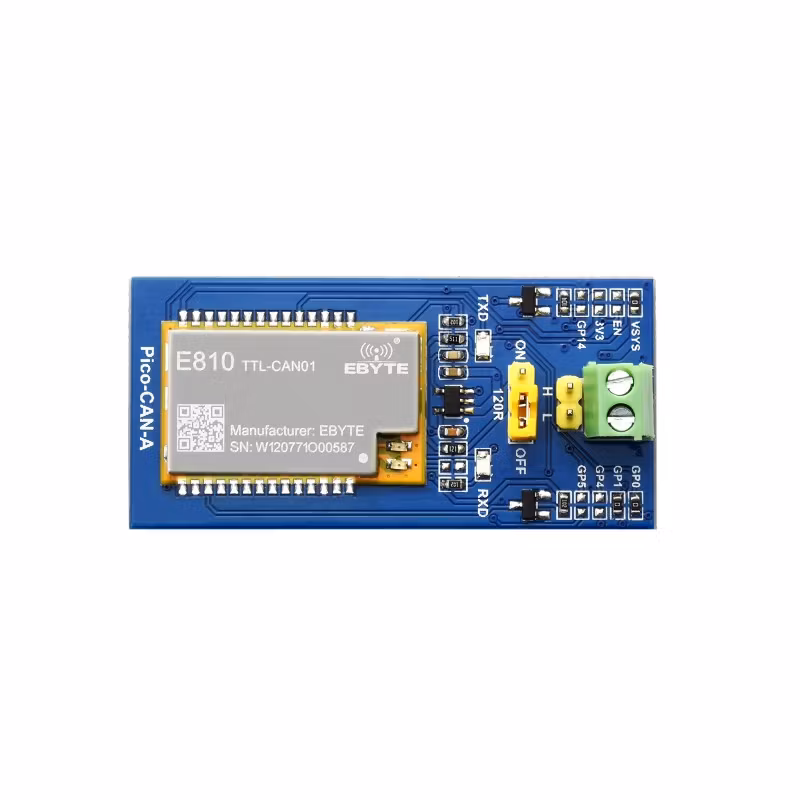

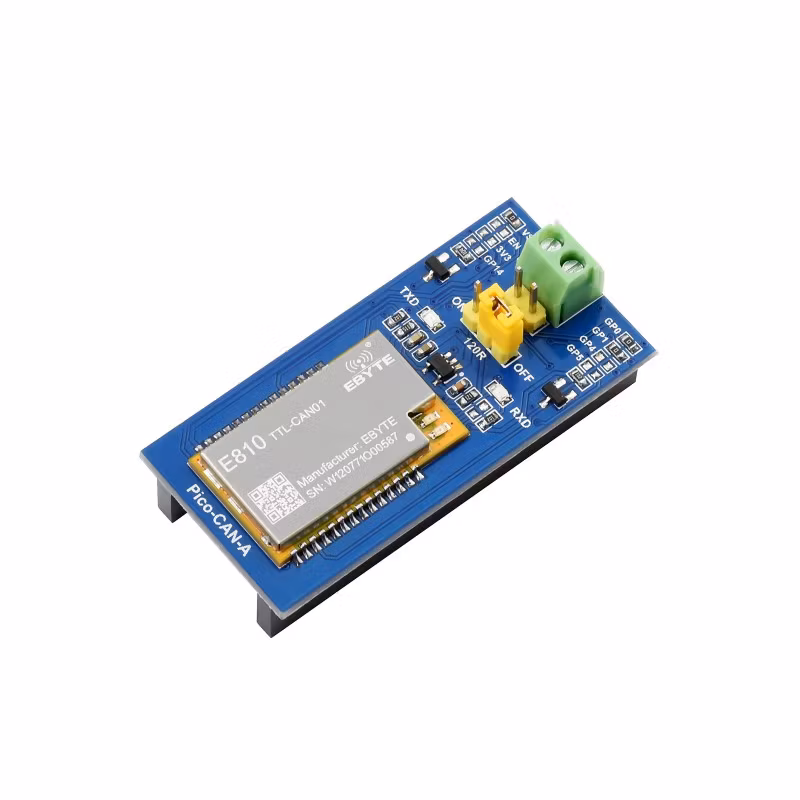

What's On Board

  1. E810-TTL-CAN01 module
  2. Module operating indicator
  3. Module status indicator
    operating mode: blinking at 1Hz frequency
    command configuration mode: blinking at 5Hz frequency
  4. TX/RX indicators



  1. Resistor config
    ON: connected to 120R matching resistor
    OFF: disconnected from 120R matching resistor (default)
  2. CAN bus terminal
  3. Power supply selection
  4. UART selection

Pinout Definition

Outline Dimensions

WIKI: Pico-CAN-A
