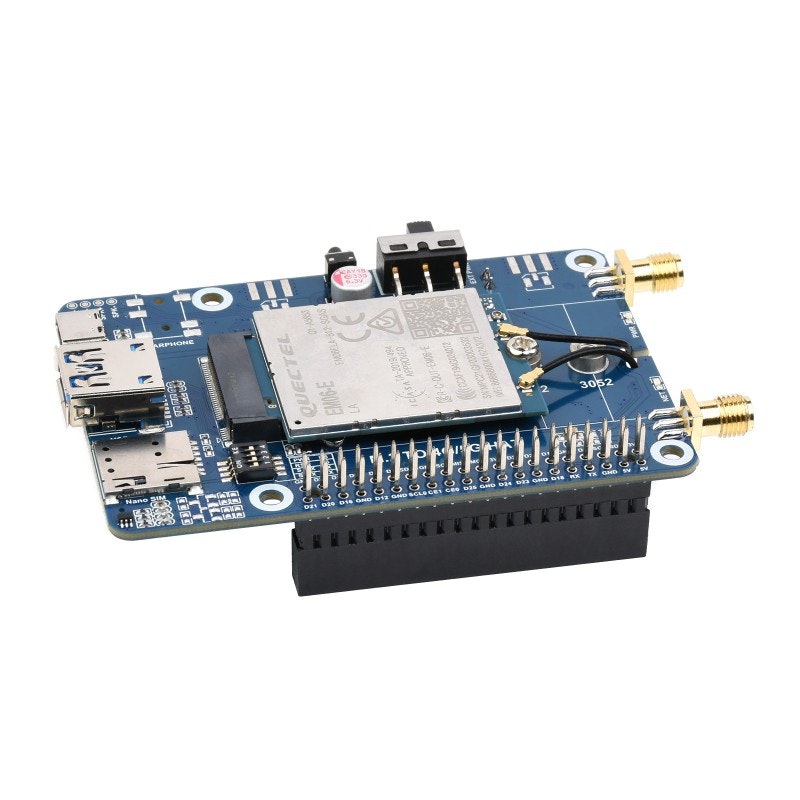

EM06-E LTE Cat-6 HAT for Raspberry Pi, Dual Antennas LTE-A, Multi Regions Multi Band, GNSS.
Supports LTE-A and UMTS/HSPA(+) multi networks. Multi-Constellation High-Accuracy GNSS, Cloud Platform Communication, LTE-A Networking.
New product contact us for order.
Features At A Glance
This is an LTE Cat 6 Raspberry Pi communication HAT with GNSS and up to 300Mbps (downlink) / 50Mbps (uplink) data rate. It is applicable for countries/regions including Europe, the Middle East, Africa, Asia-Pacific, Brazil... By connecting it to PC, Raspberry Pi or Jetson Nano host boards, it is easy to enable LTE-A high speed networking, cloud platform communication, SMS, and global GNSS positioning functions.
- Multi-constellation high-accuracy GNSS positioning: GPS, GLONASS, BeiDou/Compass, Galileo, QZSS
- Integrates extensive network protocols, with multi drivers and software support, compatible with different OS including Windows / Linux / Android
- USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed LTE-A communication
- Standard M.2 B KEY slot, compatible with different core modules: EM06-E, EM06-J, EM06-A series
- Onboard PWR and RST control pin, enabled via DIP switch, for connecting to external IO to turn on/off or reset the module
- Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
- Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
- Reserved 4x SMA to IPEX antenna interfaces, with pre-soldered 2x connectors for easily using antennas, allows changing the SMA antenna position
- High efficiency power supply circuit, up to 3A output current
Module Specifications
| DATA RATE | |
|---|---|
| FREQUENCY BAND | |
| TEMPERATURE RANGE | |
| LTE CAT 6 | |
| Region / Provider | EMEA / APAC (except Japan and CMCC) / Brazil |
| Module dimensions | 42.0 × 30.0 × 2.3 (mm) |
| Operating temperature | -30°C ~ +70°C |
| Extension temperature | -40°C ~ +85°C |
| LTE-FDD | B1, B3, B5, B7, B8, B20, B28, B32 (receive only for B32) |
| LTE-TDD | B38, B40, B41 |
| 2xCA | B1+B1, B5, B8, B20, B28; B3+B3, B5, B7, B8, B20, B28; B7+B5, B7, B8, B20, B28; B20+B32 (B32 is used for aux component carrier only), B38+B38, B40+B40, B41+B41 |
| WCDMA | B1, B3, B5, B8 |
| GNSS | GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS |
| LTE-FDD | 300 Mbps (DL) / 50 Mbps (UL) |
| LTE-TDD | 226 Mbps (DL) / 28 Mbps (UL) |
| DC-HSPA+ | 42 Mbps (DL) / 5.76 Mbps (UL) |
| WCDMA | 384 Kbps (DL) / 384 Kbps (UL) |
Dedicated For IoT/M2M Applications
Supports LTE-A And UMTS/HSPA(+) Multi Networks
Applicable For Countries/Regions Including Europe, The Middle East, Africa, Asia-Pacific, Brazil...
Multi System Support, Easy To Use
Supports Windows / Linux / Android...
Just plug it into USB port, go through some simple configuration, the high speed LTE-A network connection will be ready to use
Connection Examples

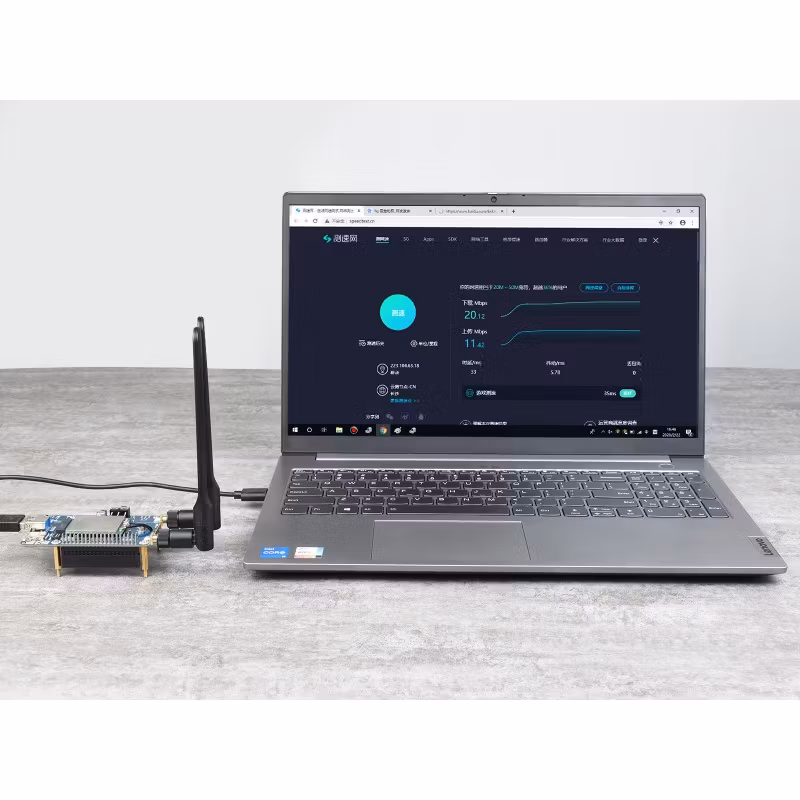

For Windows PC Or Jetson Nano Series, Use A USB Cable
For Raspberry Pi 4B/3B+, Or CM4-IO-BASE-A/B, Use The Purpose-Made USB Adapter

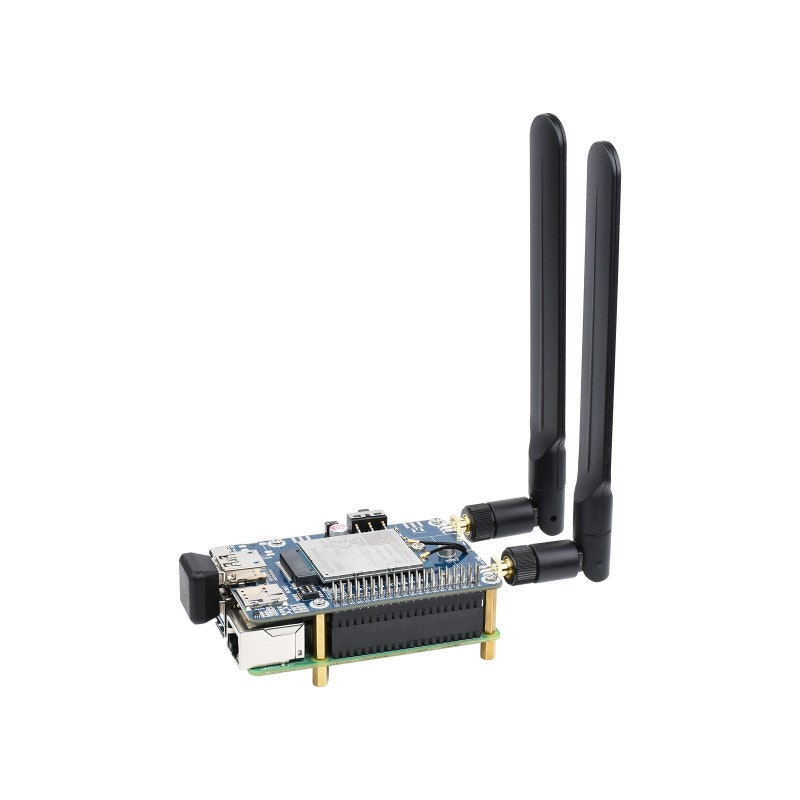

connecting with Raspberry Pi 4B
connecting with Raspberry Pi 3B+
connecting with CM4 IO Base
Multi-Constellation High-Accuracy GNSS
Supports GPS, GLONASS, BeiDou/Compass, Galileo, QZSS
Standard Raspberry Pi 40PIN GPIO Header
Compatible With Raspberry Pi Series And Jetson Nano, Stackable Design For More HATs
* for reference only, please check the Package Content section for exact part list.

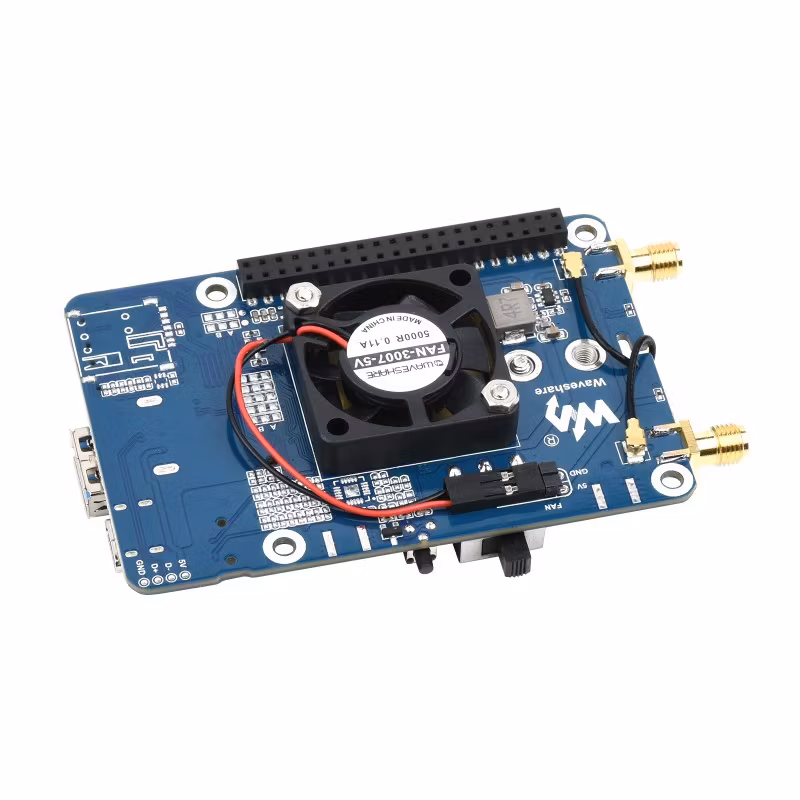

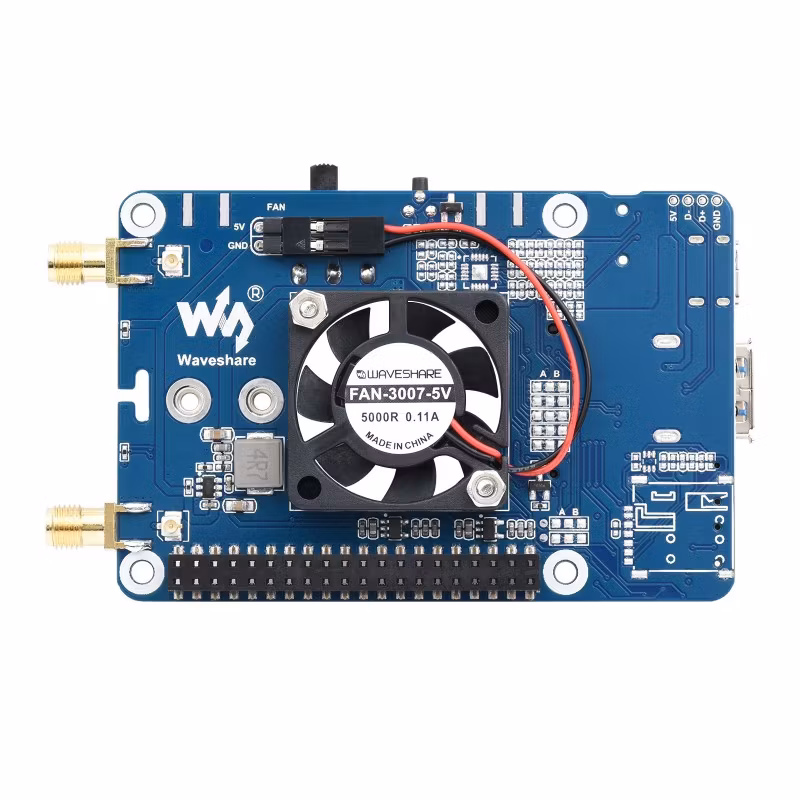

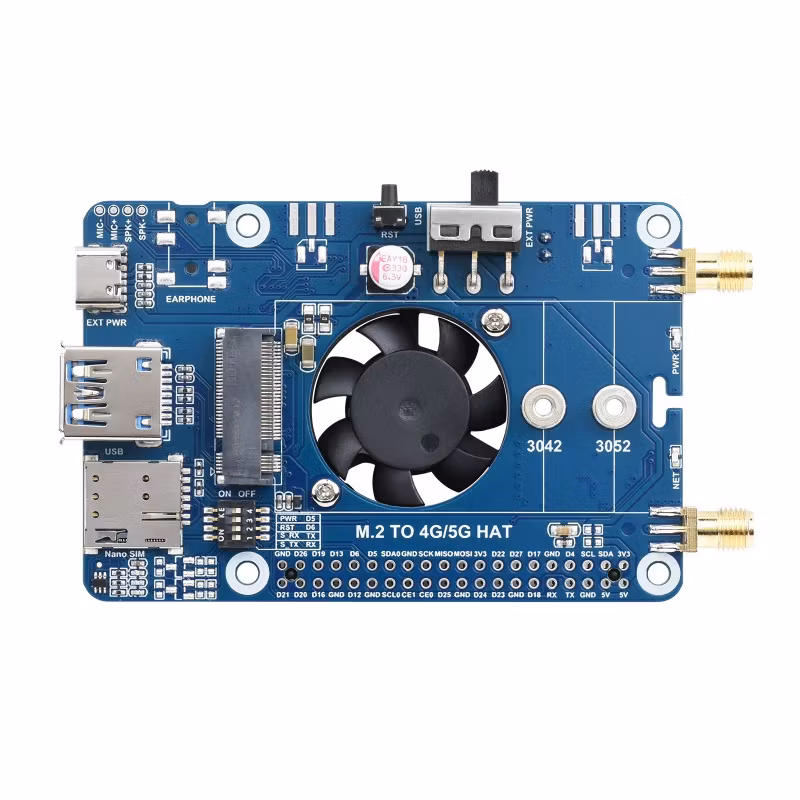

High Speed Cooling Fan
Better Heat Dissipation For Both Raspberry Pi And The LTE-A Module
Standard M.2 B KEY Slot
Compatible With EM06-E, EM06-J, EM06-A Series Modules
| DATA RATE | |||
|---|---|---|---|
| FREQUENCY BAND | |||
| LTE CAT 6 | EM06-E | EM06-J | EM06-A |
| Region / Provider | EMEA/APAC①/Brazil | Japan | North America/Mexico |
| Operating temperature | -30 °C ~ +70 °C | ||
| Extension temperature | -40 °C ~ +85 °C | ||
| Dimensions | 42.0 × 30.0 × 2.3 (mm) | ||
| Power supply | 3.135V~4.4V, typical 3.7V | ||
| Power consumption | 50μA @ shutdown 4.1mA @ hibernate, typical 22.1mA @ idle | 47μA @ shutdown 3.8mA @ hibernate, typical 19.5mA @ idle | 50μA @ shutdown 3.8mA @ hibernate, typical 21.3mA @ idle |
| LTE-FDD | B1, B3, B5, B7, B8, B20, B28, B32② | B1, B3, B8, B18, B19, B26, B28 | B2, B4, B5, B7, B12, B13, B25, B26, B29②, B30, B66 |
| LTE-TDD | B38, B40, B41 | B41 | B41 |
| 2xCA | B1+B1, B5, B8, B20, B28; B3+B3, B5, B7, B8, B20, B28; B7+B5, B7, B8, B20, B28; B20+B32②; B38+B38; B40+B40; B41+B41 | B1+B1, B8, B18, B19, B26, B28; B3+B3, B8, B18, B19, B26, B28; B41+B41 | B2+B2, B5, B12, B13, B29②; B4+B4, B5, B12, B13, B29②; B7+B5, B7, B12, B26; B25+B5, B12, B25, B26; B30+B5, B12, B29②; B66+B5, B12, B13, B29②, B66; B41+B41 |
| WCDMA | B1, B3, B5, B8 | B1, B3, B6, B8, B19 | B2, B4, B5 |
| GNSS | GPS / GLONAS S/ BeiDou (Compass) / Galileo / QZSS (configurable) | ||
| LTE-FDD | 300 Mbps (DL); 50 Mbps (UL) | ||
| LTE-TDD | 226 Mbps (DL); 28 Mbps (UL) | ||
| DC-HSPA+ | 42 Mbps (DL); 5.76 Mbps (UL) | ||
| WCDMA | 384 kbps (DL); 384 kbps (UL) | ||
| ① except Japan and CMCC; ② B29/B32 is only used for receiving in LTE-FDD, while only for aux component carrier wave in 2×CA; | |||
Comes with EM06-E module by default, for other modules or hardware customization, feel free to contract us.
Application Examples
LTE-A Wireless Router
Combined with OpenWrt, turns the Raspberry Pi into a LTE-A wireless router, providing WiFi hotspot for smartphones to easily access the LTE-A Network.
LTE-A Live Streaming
While mounting an additional camera, it is able to do live streaming on webpage or live platform through ffmpeg video stream.
More Possibilities
Outline Dimensions
Wiki: EM06-E_LTE_Cat-6_HAT
Shipping list
Weight: 0.204 kg
- M.2 TO 4G/5G HAT x1
- EM06-E x1
- Antenna 2pcs x1
- IPEX adapter cable 2pcs x1
- 2*20PIN pin header x1
- Passive GPS antenna x1
- Dual plug USB3.0 cable x1
- USB3.0 adapter x1
- USB2.0 adapter x1
- SMA protective cap 2pcs x1
- Screws pack x1
