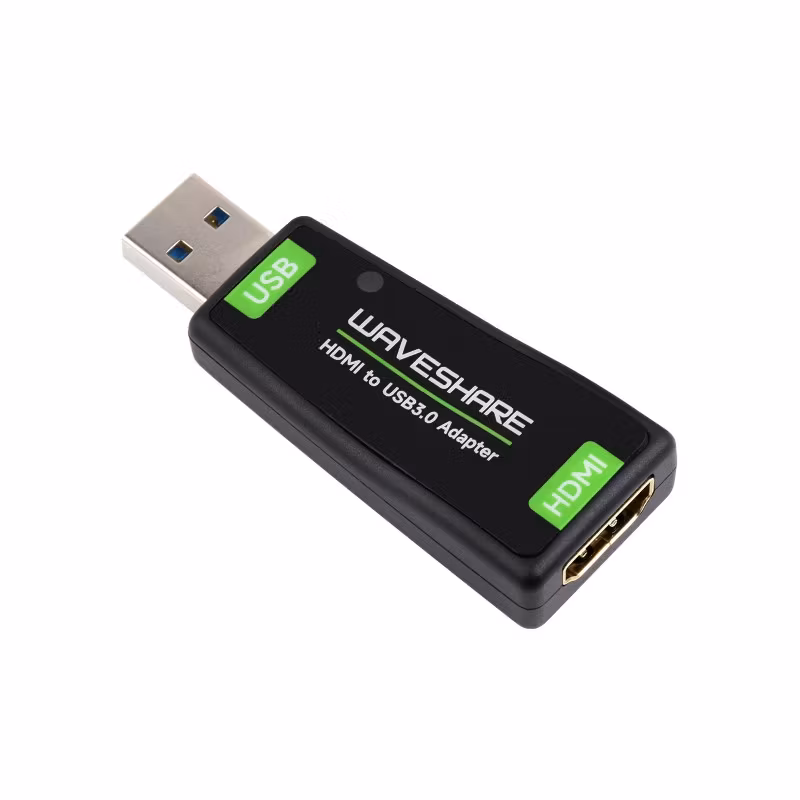

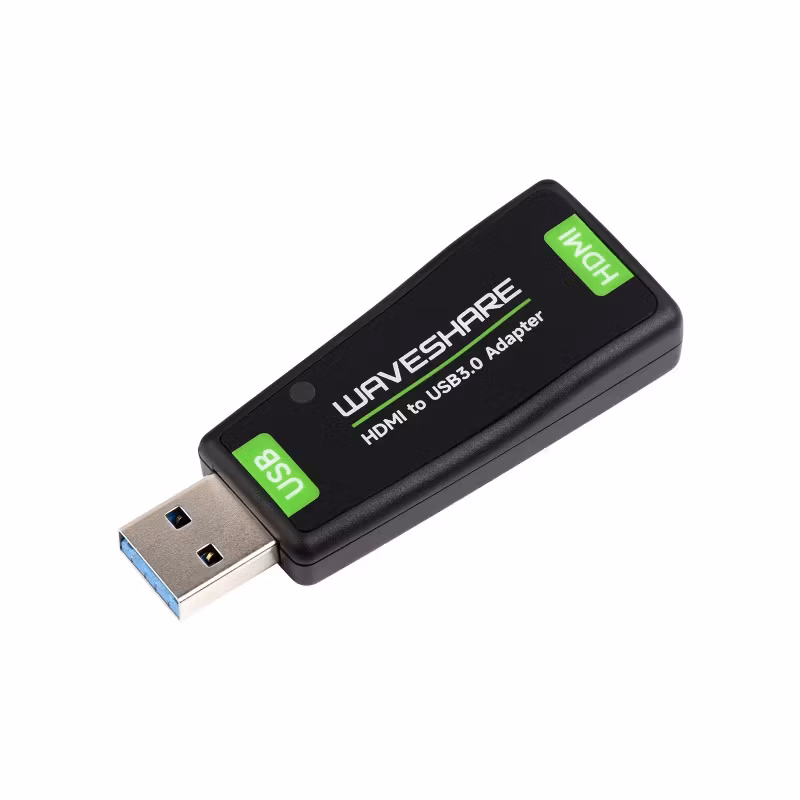

HDMI to USB3.0 Adapter

  • 249 kr

USB Port High Definition HDMI Video Capture Card, For Gaming / Streaming / Cameras, HDMI To USBUSB HD Video Capture CardHDMI to USB, Driver-free  Vers

I lager.
Lagersaldo: 3
Artikelnummer: 1258

USB Port High Definition HDMI Video Capture Card, For Gaming / Streaming / Cameras, HDMI To USB

USB HD Video Capture Card

HDMI to USB, Driver-free


Version Options

HDMI to USB3.0 Adapter
USB3.0 Version


HDMI to USB Adapter
USB2.0 Version

Marketing NameLogoUSB3.2 SpecificationOld SpecificationsTransfer Speed
USB 5GbpsUSB 3.2 Gen 1x1USB 3.1 Gen 1USB 3.05Gbit/s


PRODUCTHDMI to USB3.0 AdapterHDMI to USB Adapter
Input resolution up to 4K (3840*2160@30Hz)
HDMI 1.4B compliant
Output resolution up to 1080P
Output resolution up to 1080P
Supports YUV422 and MJPEG modesSupports YUV and JPEG modes
UVC1.0 and UAC1.0 protocol compliant
TRANSMISSION LATENCY*As low as 50ms100~150ms
AUDIODefault 48KHz stereo outputDefault 96KHz stereo output
SYSTEM SUPPORTWindows, Linux, macOS, Android
SOFTWARE SUPPORTOBS, Potplayer, QuickTime, XSplit, etc.

* test data are from Waveshare laboratory, and the actual performance may be different according to the device you are using.

Wide Variety Of Hosts Support

Easy Use With Different Hosts Like:
Smartphone, Game Console, Set-Top Box, Camera...

* the video output ports may be different, an additional corresponding adapter cable is required for different hosts.

Multi Systems Support

Supports Windows, Linux, MacOS, Android

Using With Raspberry Pi

for reference only, the adapter cable is NOT included.

Product Show

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/HDMI_to_USB_Adapter

Shipping list

Weight: 0.013 kg

  1. OPTIONS HDMI to USB Adapter x1
